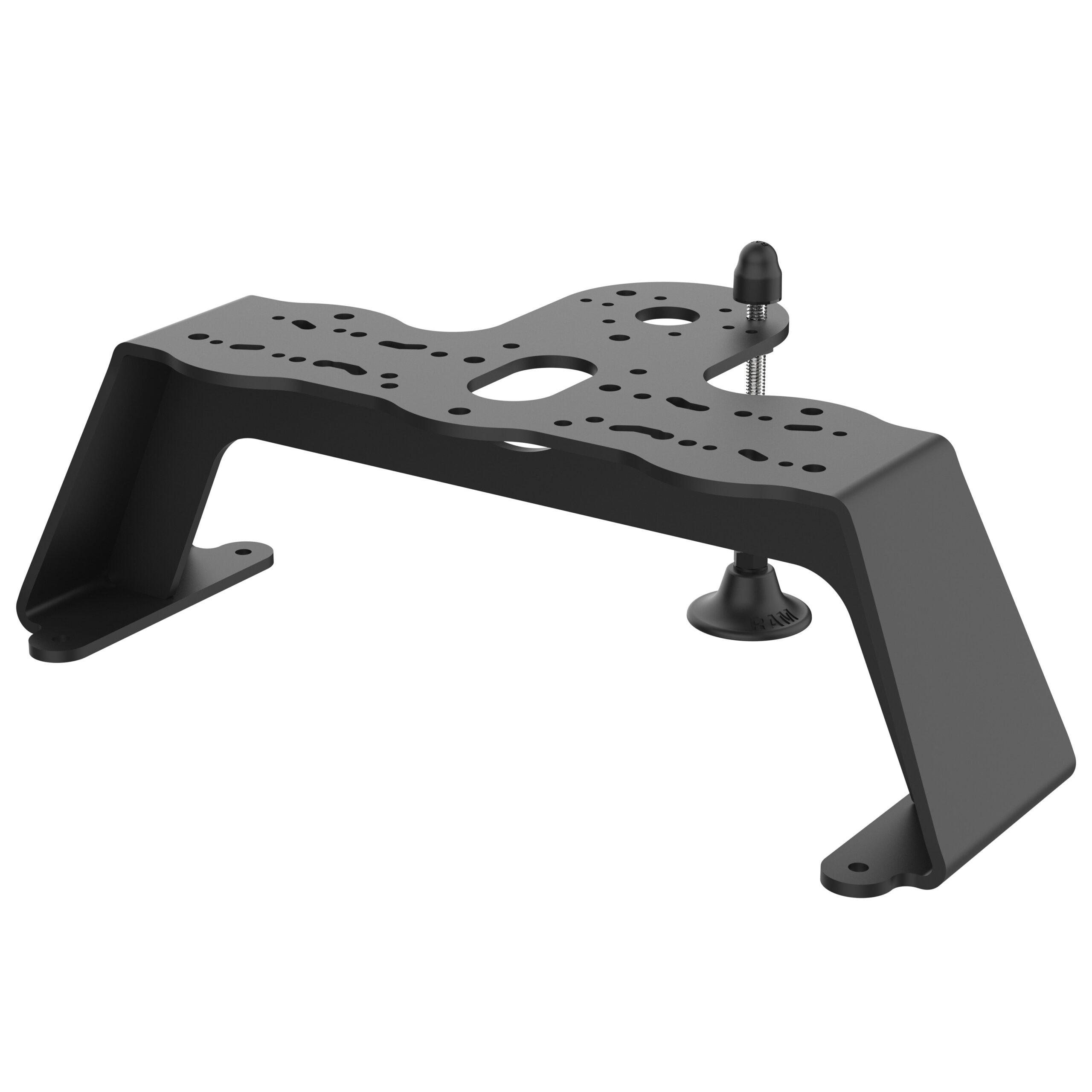

RAM® Heavy Duty Fish Finder Deck Mount - Image 1

RAM® Heavy Duty Fish Finder Deck Mount - Image 2

RAM® Heavy Duty Fish Finder Deck Mount - Image 3

RAM® Heavy Duty Fish Finder Deck Mount - Image 4

RAM® Heavy Duty Fish Finder Deck Mount

Name: RAM® Heavy Duty Fish Finder Deck Mount
Brand: RAM Mounts
SKU: RAM-FF1U
Availability: InStock

$362.00

In stock

Mounting base: screws or bolts down (AMPS hole pattern).

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAM-FF1U Categories RAM Mounts, Marine Mounts, General Mounts

Overview

The RAM® Heavy Duty fish finder Deck Mount (RAM-FF1U) is a robust, powder-coated aluminum bracket designed to support up to three fish finders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, making it compatible with popular fish finder brands like Garmin®, Lowrance®, and Humminbird®. It also includes three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases. Need a secure mount at the stern? Pair the Deck Mount with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fish finder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with our Lifetime Warranty for all RAM® components.

Features

Supports up to three fish finders for maximum data intake; ideal for bow or rear-mounted fish finder setups
Compatible with Garmin®, Lowrance®, and Humminbird® mounting patterns
Includes AMPS and tri-hole patterns for RAM® D size bases
Marine-grade aluminum construction with powder-coated finish
Back by a Lifetime Warranty

Specs
