GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger

GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger

OVERVIEW

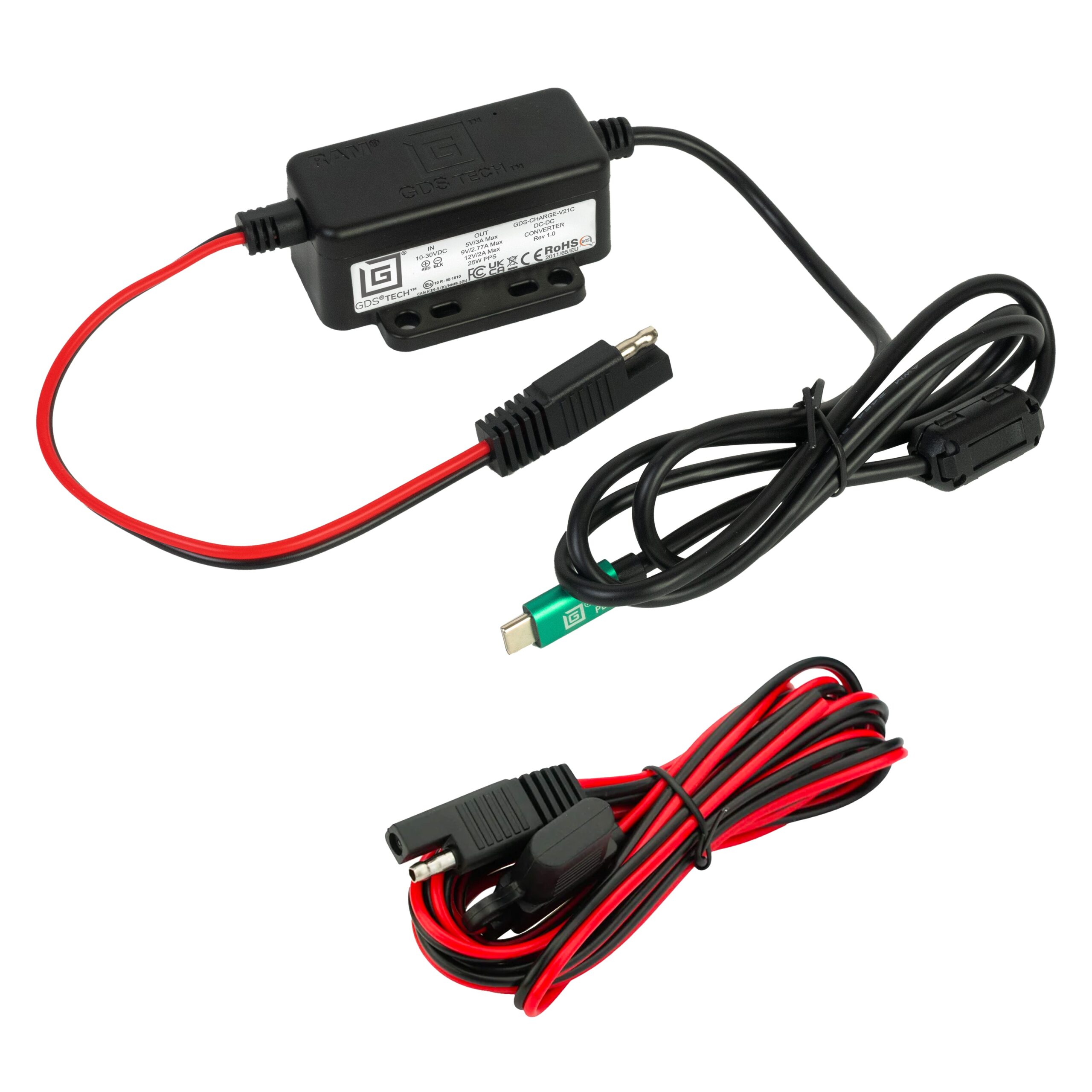

The GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V21CU) is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 12V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10-30VDC

OUTPUT VOLTAGE

12VDC

POWER OUTPUT

25W

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

Bare Wire

INPUT CABLE LENGTH

.2 Meters

OUTPUT CONNECTOR

USB Type-C Male

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

-20°C to +70°C

STORAGE TEMPERATURE

-40°C to +85°C

REGULATORY

Over Voltage Protection Over Current Protection Short Circuit Protection SAE J-1113-5a Load Dump (Transient Voltage) WEEE Compliance RoHS Compliance

CERTIFICATIONS

FCC, CSA, CE, UKCA, RCM, e-Mark

WARRANTY

3 year warranty

WEIGHT

0.45 lb

ADDITIONAL INFORMATION

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
