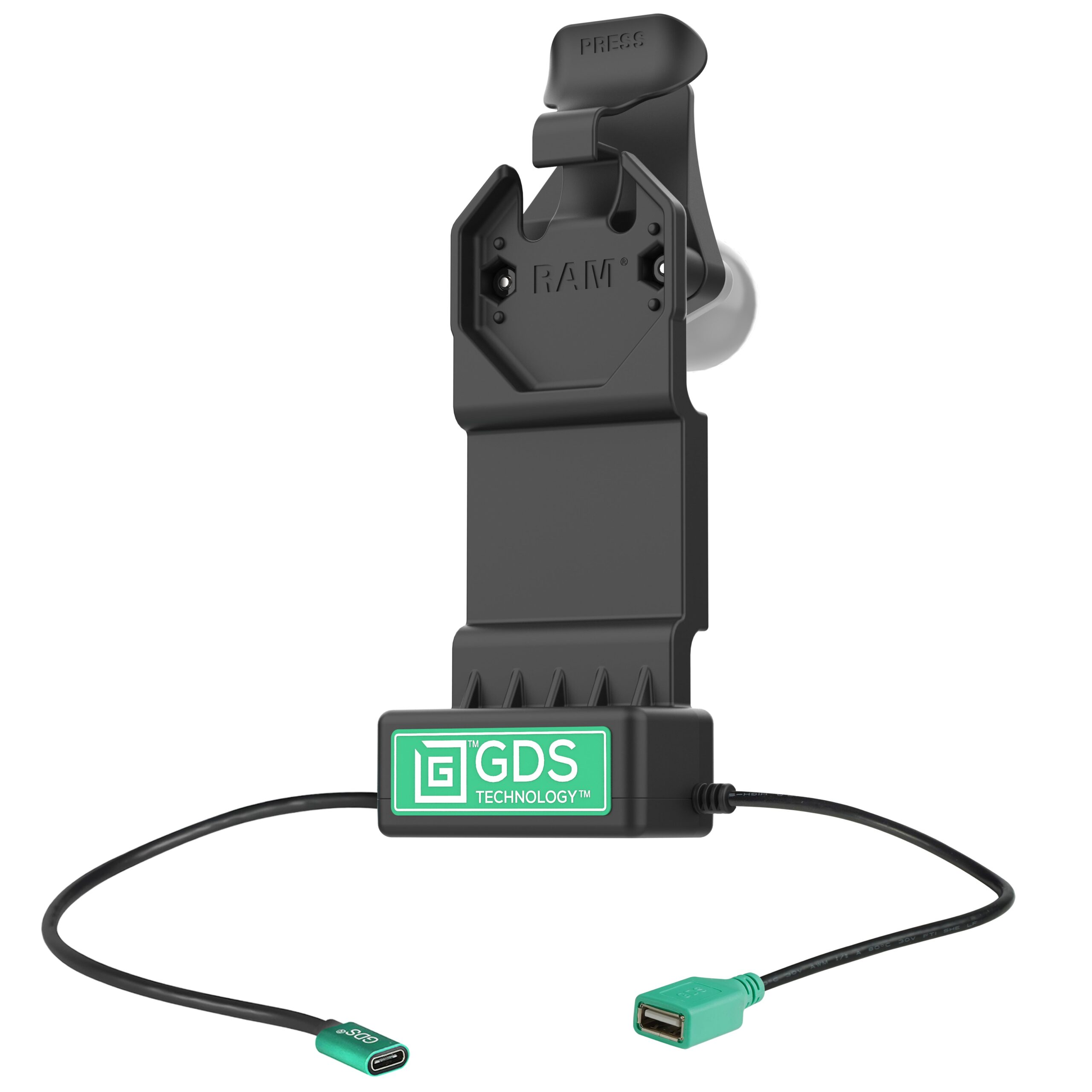

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever - Image 3

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever - Image 4

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever - Image 5

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever - Image 6

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever - Image 7

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever

Name: GDS® Uni-Conn™ Dock + Single USB-A with Release Lever
Brand: RAM Mounts
SKU: RAM-GDS-DOCK-U1CDU
Availability: InStock

$311.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAM-GDS-DOCK-U1CDU Categories RAM Mounts, Tablet Mounts

Overview

The GDS® Uni-Conn™ Dock + Single USB-A (RAM-GDS-DOCK-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
Power delivered via USB-C connector; connect a single input device via USB-A connector
RAM® Mounts Compatible™
Backed by a 3-year warranty

Specs

Hardware Included

(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

Product Dimensions

Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"

Hole Pattern

2-Hole AMPS: 1.912"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C
USB Type A for 1 Peripheral

Input Cable Length

215mm

Output Cable Length

215mm

Peripheral Output

500mA

Warranty

3 year warranty

Weight

0.55 lb

Additional Information

The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
