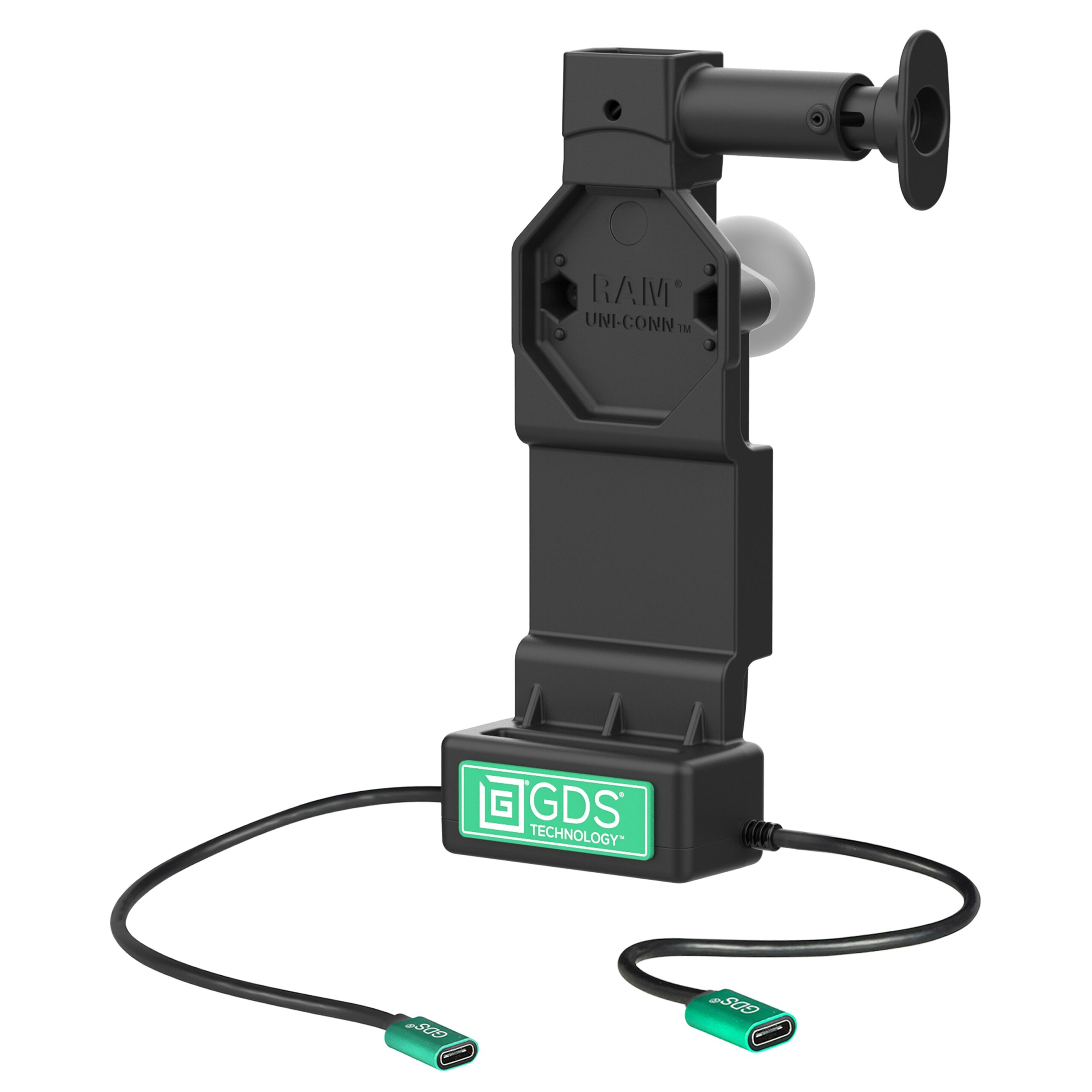

GDS® Uni-Conn™ Dock + Single USB-C with Release Button - Image 1

GDS® Uni-Conn™ Dock + Single USB-C with Release Button - Image 2

GDS® Uni-Conn™ Dock + Single USB-C with Release Button

GDS® Uni-Conn™ Dock + Single USB-C with Release Button - Image 3

GDS® Uni-Conn™ Dock + Single USB-C with Release Button - Image 4

GDS® Uni-Conn™ Dock + Single USB-C with Release Button

Name: GDS® Uni-Conn™ Dock + Single USB-C with Release Button
Brand: RAM Mounts
SKU: RAM-GDS-DOCK-U4CP-CU
Availability: InStock

$327.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Don't Miss Top Accessories

RAM IntelliSkin® Next Gen for Samsung Tab A11+$212.00Add to cart

RAM Double Socket Arm - C Size Short$54.00Add to cart

GDS Cable Clamp for USB Type-A Rugged Aluminum Housing Cables$22.00Add to cart

RAM Drill-Down Dashboard Ball Base with Backing Plate - C Size$55.00Add to cart

SKU RAM-GDS-DOCK-U4CP-CU Categories RAM Mounts, Tablet Mounts

Overview

The GDS® Uni-Conn™ Dock + Single USB-C with Release Button (RAM-GDS-DOCK-U4CP-CU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate one peripheral device into your solution with the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
RAM® Mounts Compatible™
Backed by a 3-year warranty

Specs

Hardware Included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

Hole Pattern

2-Hole AMPS: 1.912"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C
USB Type-C for 1 Peripheral

Input Cable Length

215mm

Output Cable Length

215mm

Peripheral Output

500mA

Warranty

3 year warranty

Weight

0.68 lb

Additional Information

GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
