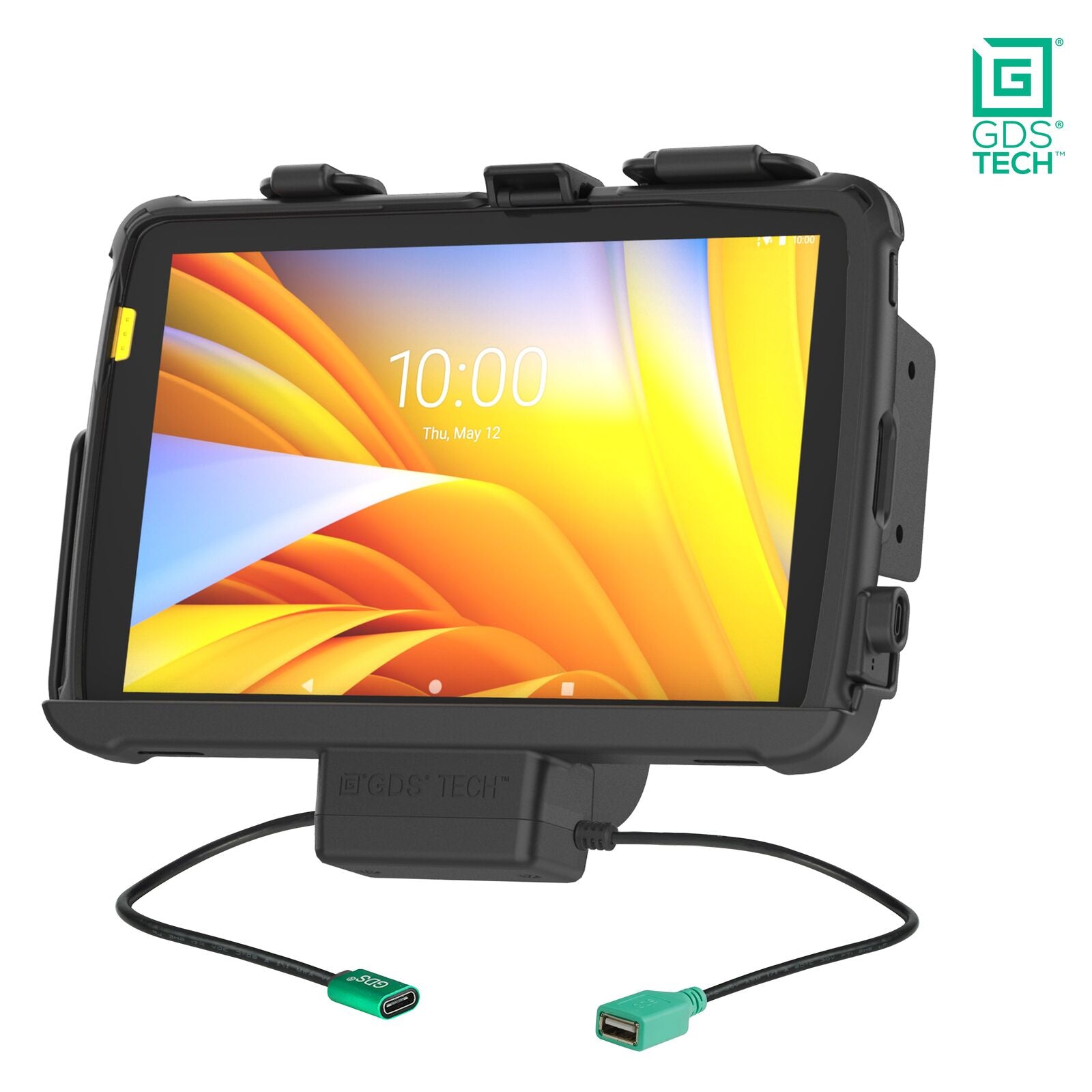

GDS Power + Data Dock for Zebra ET4x 10″ with IntelliSkin

GDS Power + Data Dock for Zebra ET4x 10″ with IntelliSkin

OVERVIEW

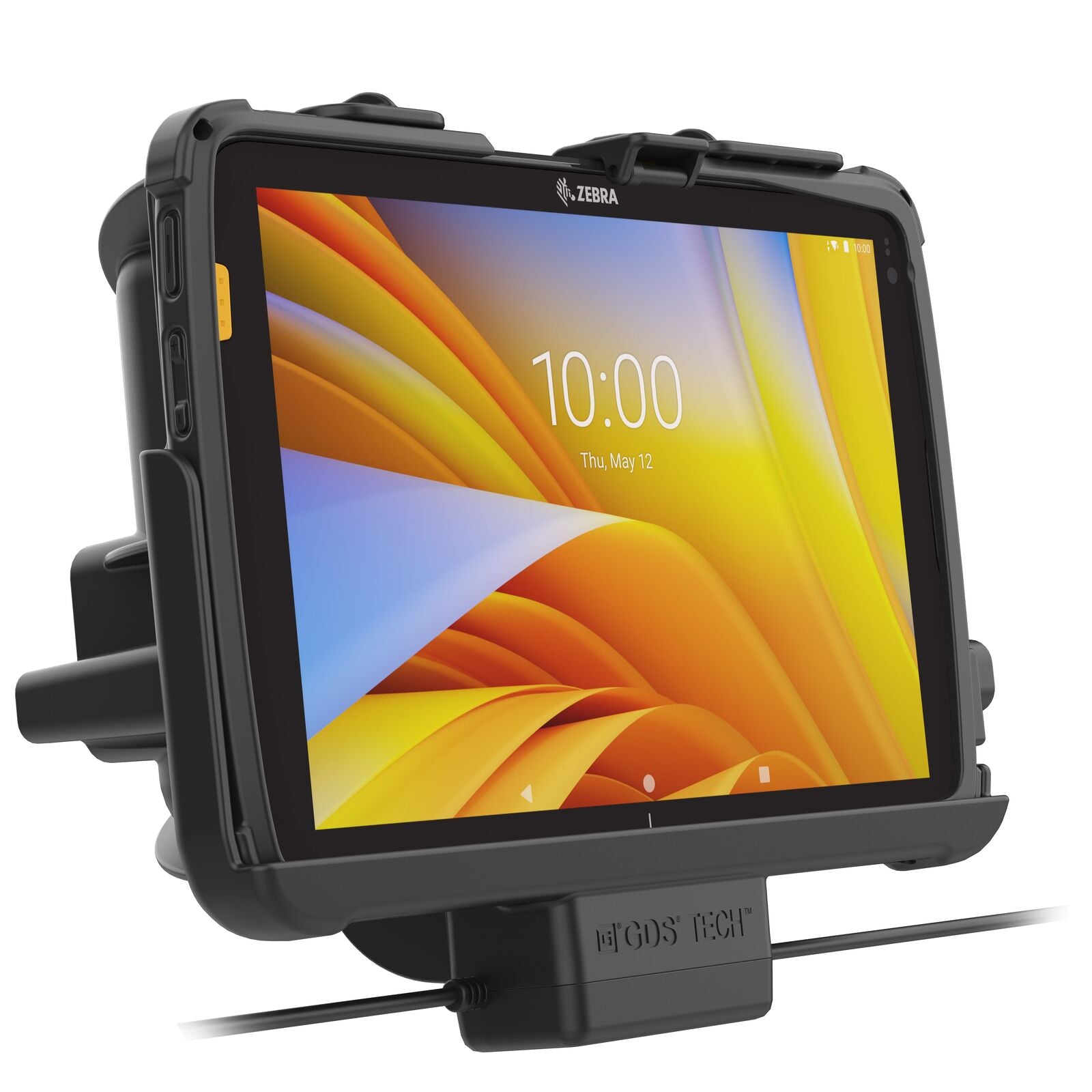

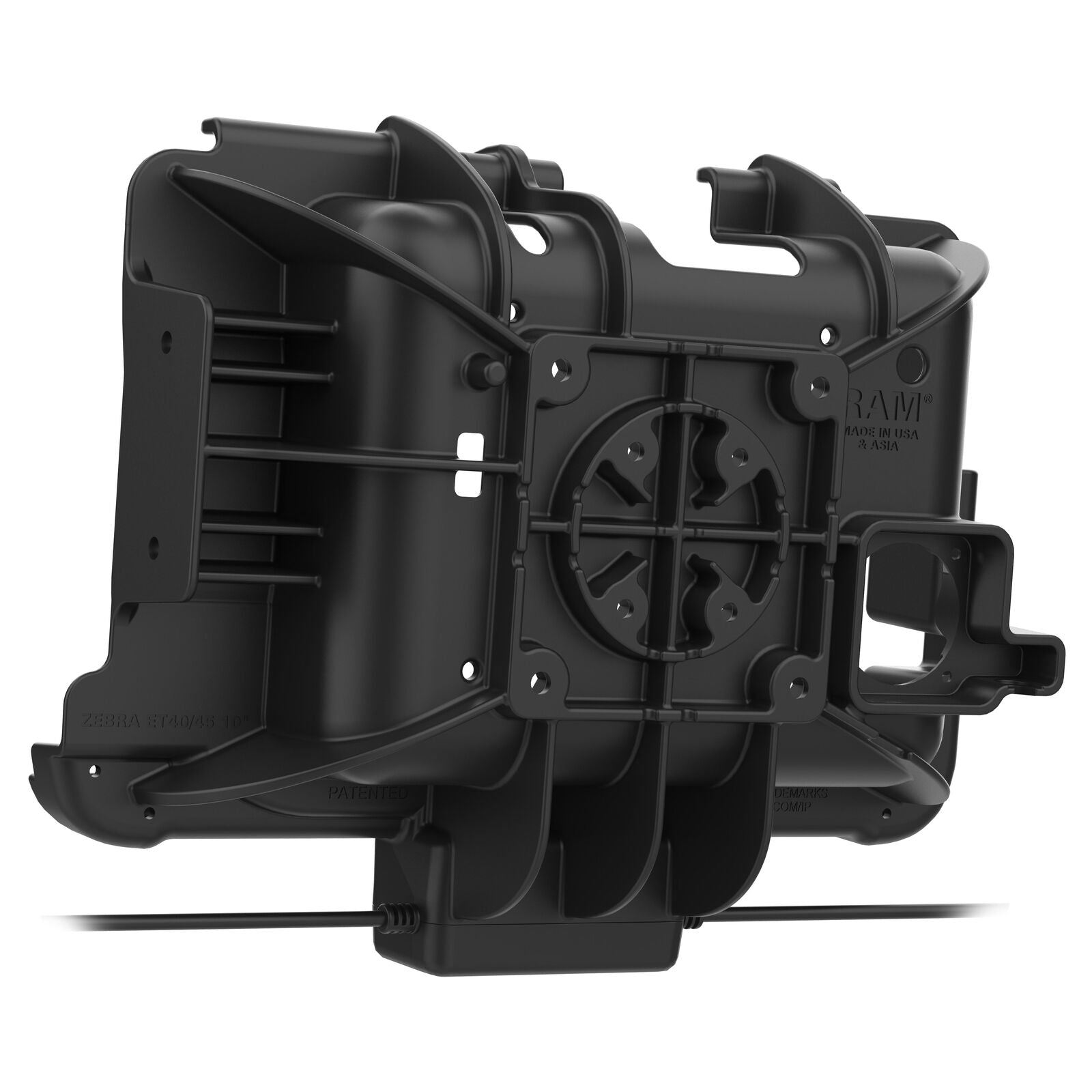

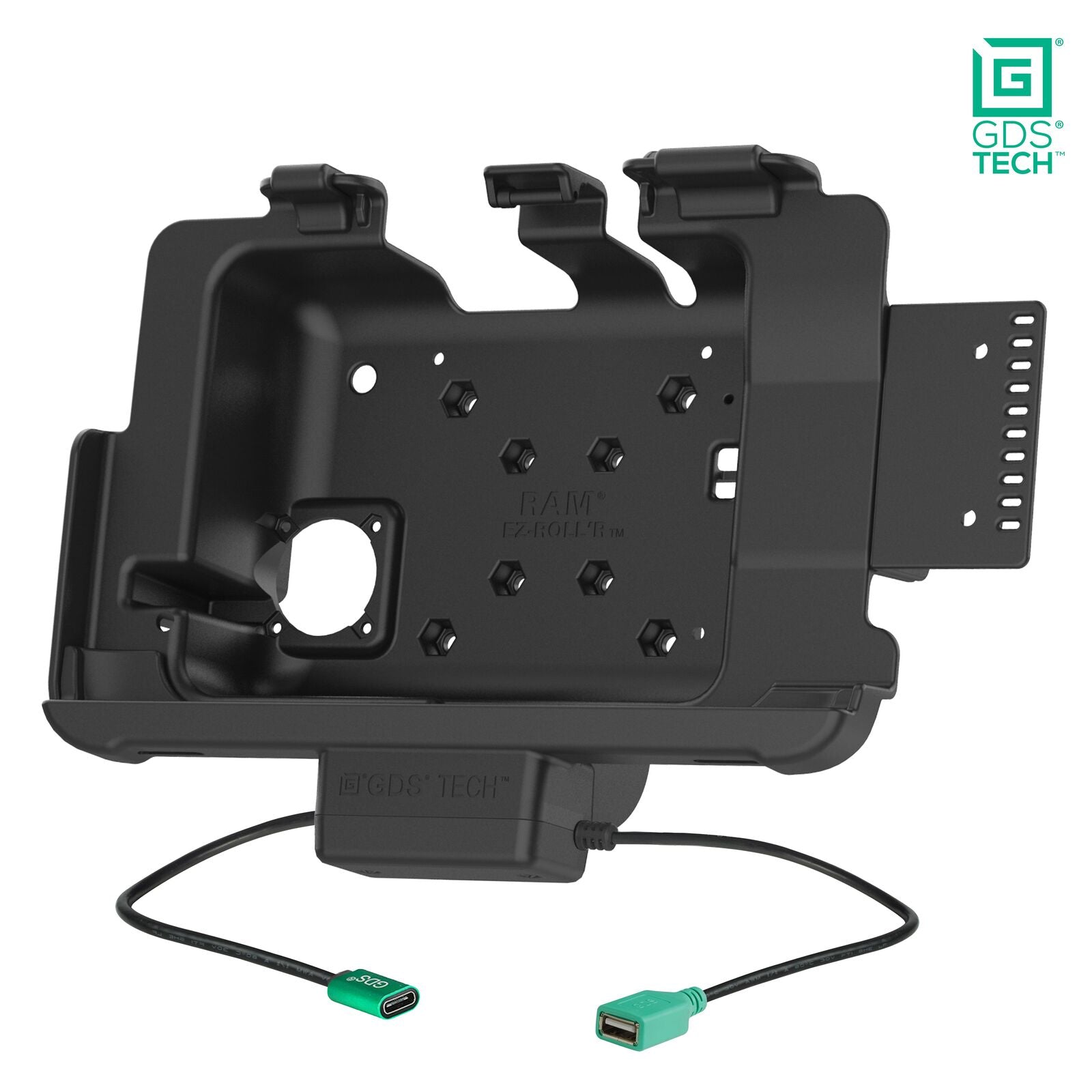

Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock (RAM-GDS-DOCK-ZE21PDU) works with the Zebra ET40 and ET45 10" enterprise tablets with an IntelliSkin® protective sleeve. This dock allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®

HARDWARE INCLUDED

(1) Side bracket for accessory mounting(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(4) #10-24 Nylock Nuts(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

INPUT CABLE LENGTH

215mm

OUTPUT CONNECTOR

USB 2.0 Type A

OUTPUT CABLE LENGTH

215mm

PERIPHERAL OUTPUT

500mA

TRANSFER SPEED

12Mbps

CERTIFICATIONS

RoHSWEEECEUKCA

WARRANTY

3 year warranty

WEIGHT

1.48 lb

ADDITIONAL INFORMATION

IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
