Name: GDS Cool-Dock for Samsung Tab Active5 & 3
Brand: RAM Mounts
SKU: RAM-GDS-DOCKF-SAM62CPU
Availability: InStock

$423.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAM-GDS-DOCKF-SAM62CPU Category Tablet Mounts

Overview

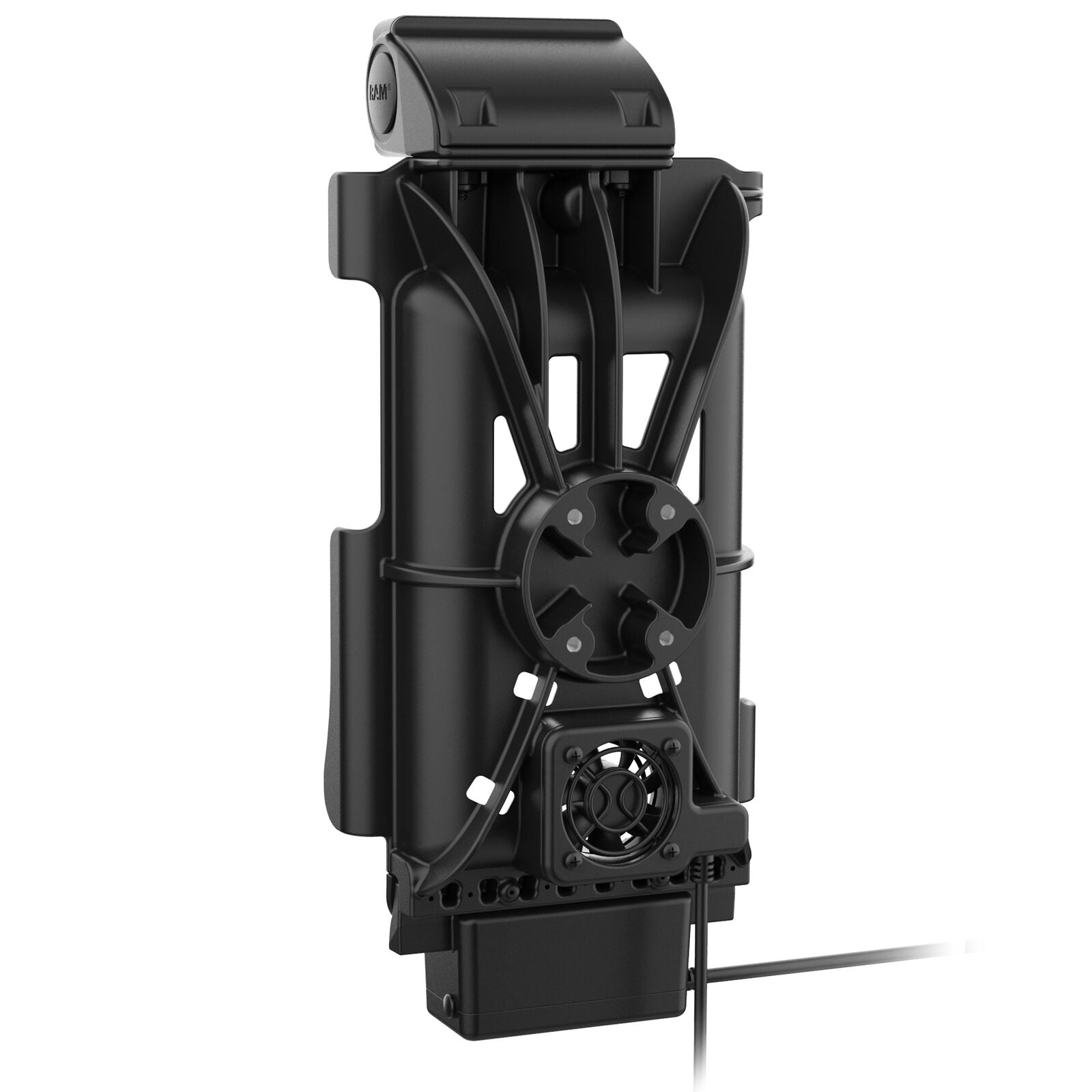

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charger. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Cool-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5, 3 and 2. The GDS® Cool-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Cool-Dock™ is backed by a 3-year warranty. Get the Heat Out!™ with GDS® Cool-Dock™. Always Protected. Always Connected.®

Features

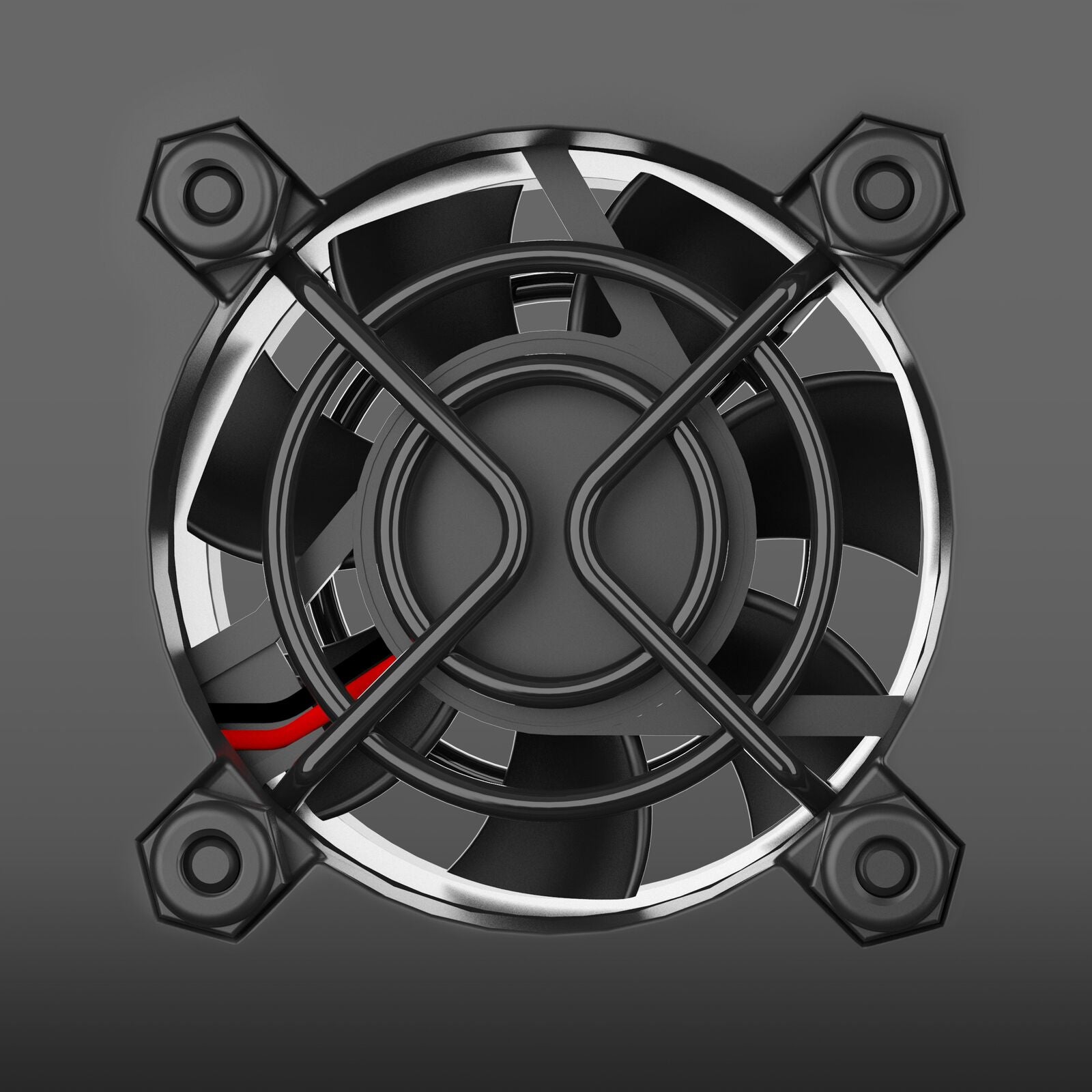

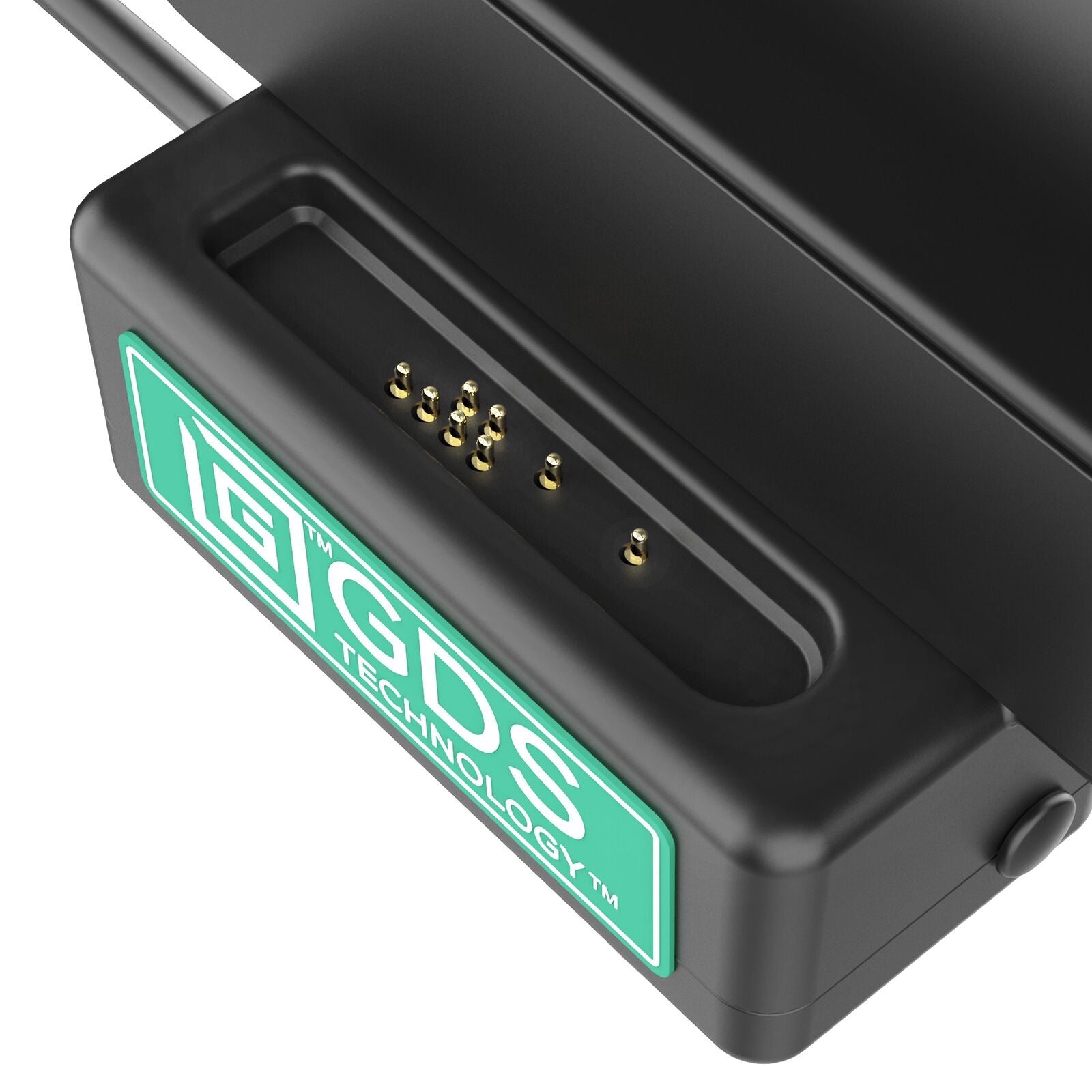

Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

Specs

Hardware Included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C

Warranty

3 year warranty

Weight

1.41 lb

Additional Information

IntelliSkin® not included. This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
