Locking GDS Tough-Dock + Single USB-A for Samsung Tab Active5 & 3

Locking GDS Tough-Dock + Single USB-A for Samsung Tab Active5 & 3

OVERVIEW

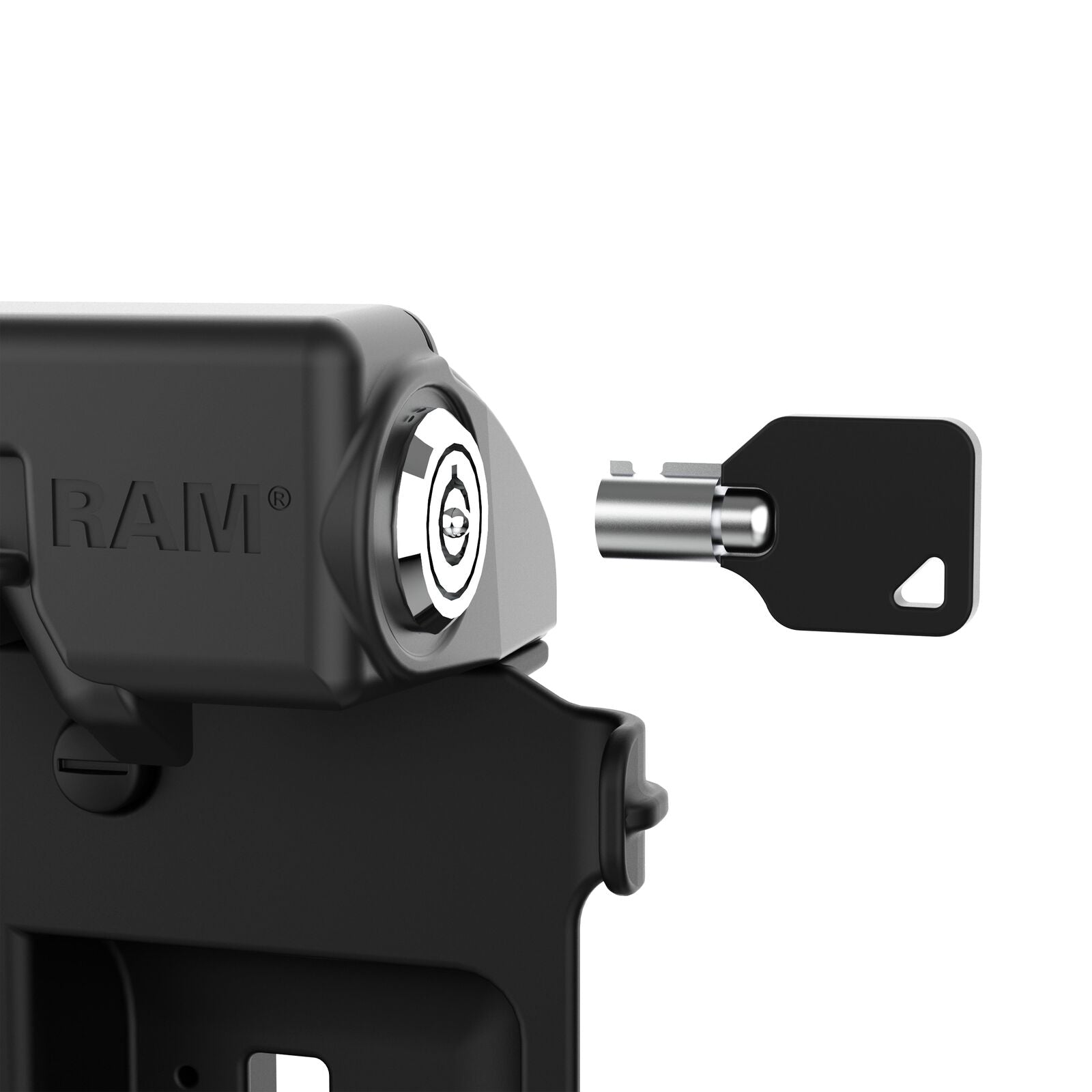

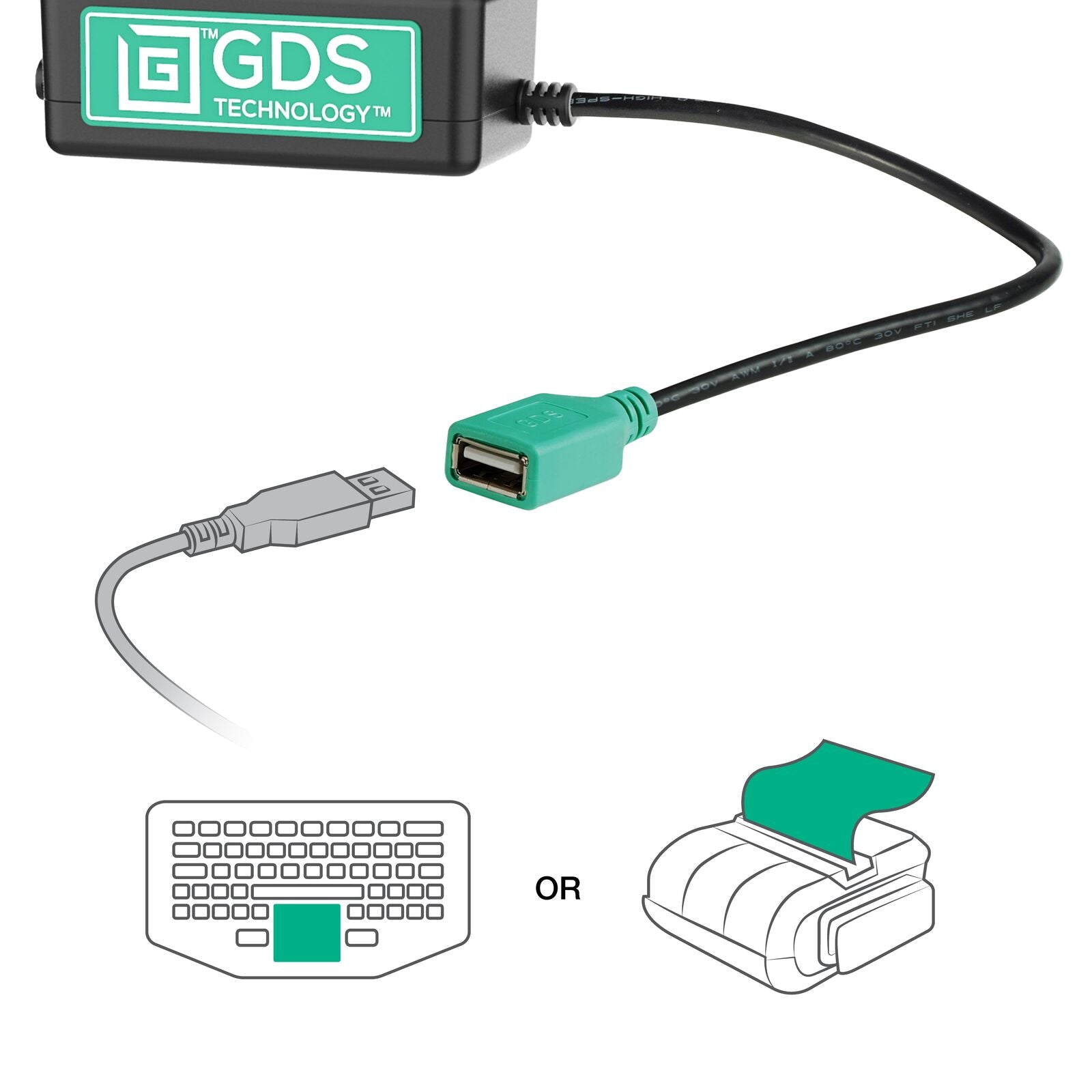

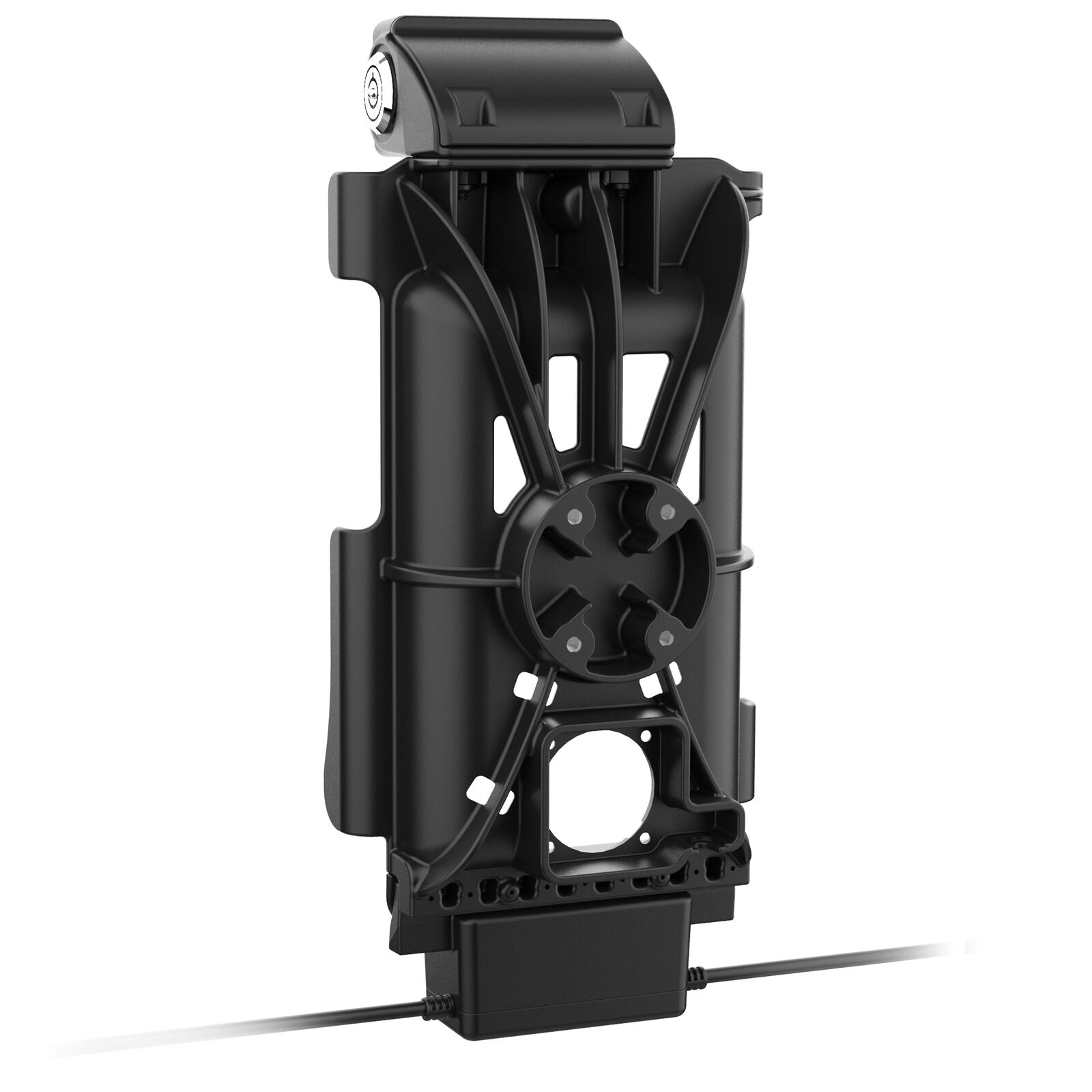

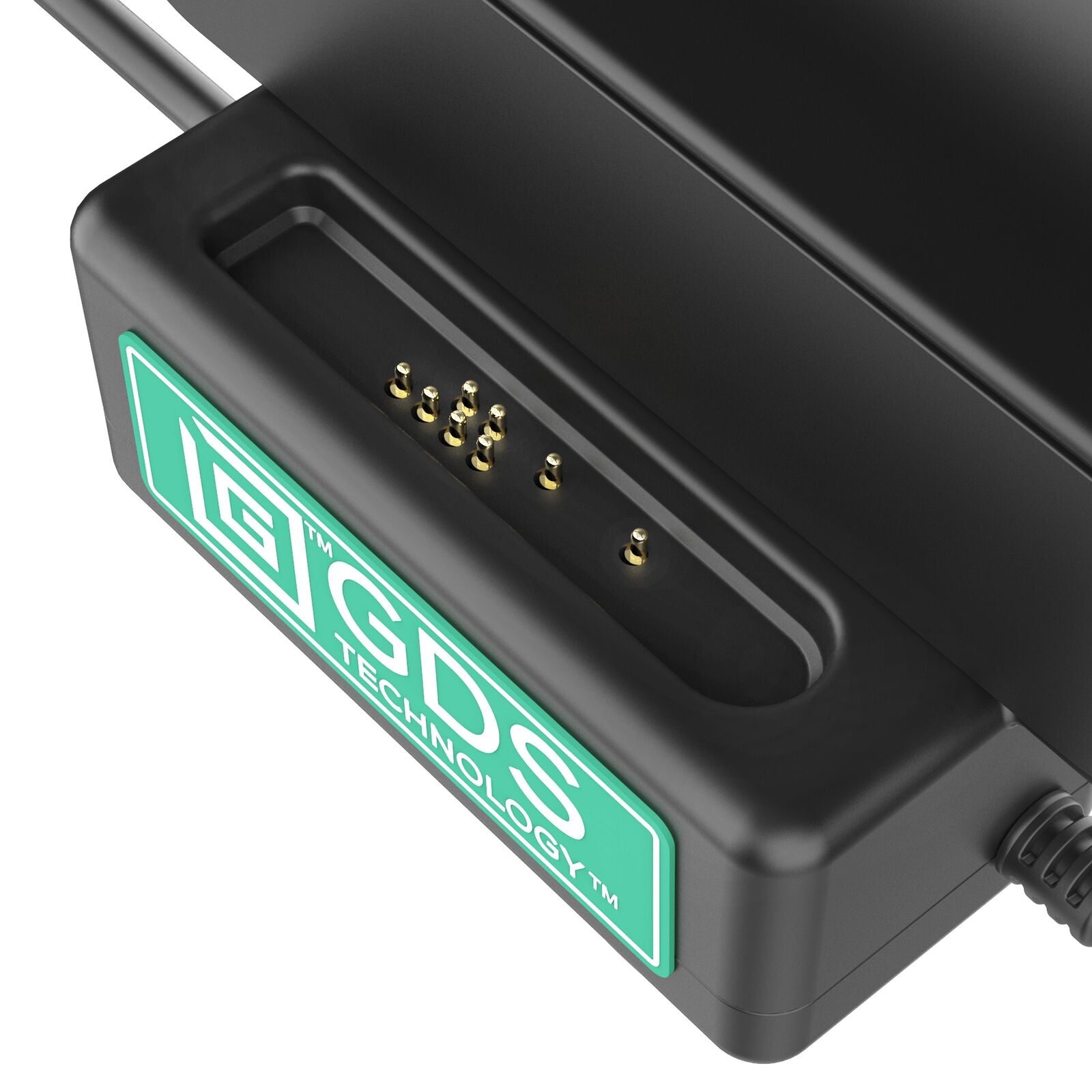

This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws(4) #8-32 Nylock Nuts(2) Keys

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-CUSB Type A for 1 Peripheral

OUTPUT CABLE LENGTH

.21 Meters

PERIPHERAL OUTPUT

500mA

WARRANTY

3 year warranty

WEIGHT

1.59 lb

ADDITIONAL INFORMATION

IntelliSkin® not included. This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
