RAM Mounts

$445.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-GDS-DOCKL-SAM67CU Category
Overview

Overview

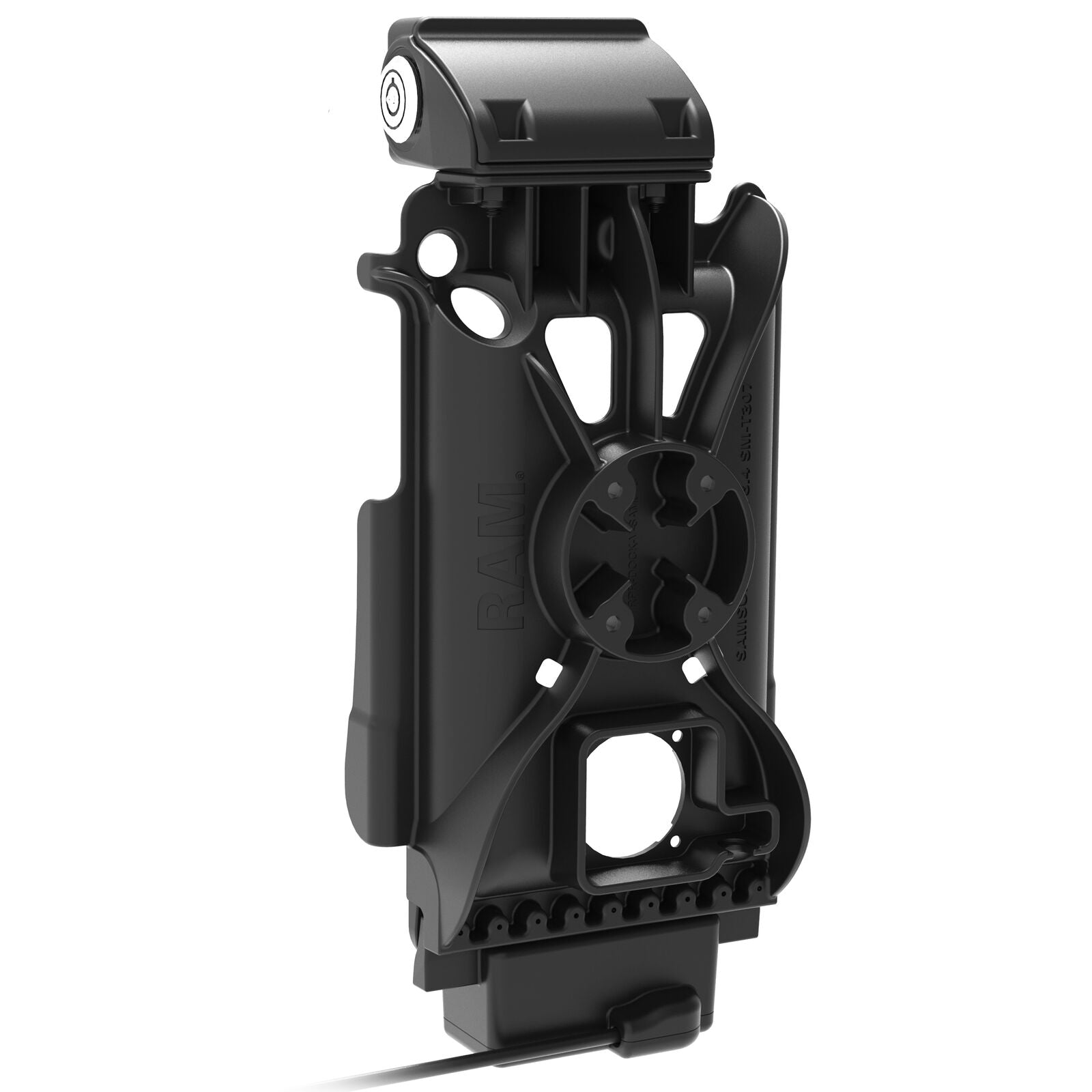

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab A 8.4 (2020) in a Next Gen IntelliSkin® protective sleeve for your fleet. Using a USB Type-C connector, the GDS® Tough-Dock™ supports data sync and fast charging capabilities for the Samsung Galaxy Tab A 8.4 (2020). The GDS® Tough-Dock™ contains a 4-hole AMPS pattern; compatible with RAM® ball and socket mounting systems. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

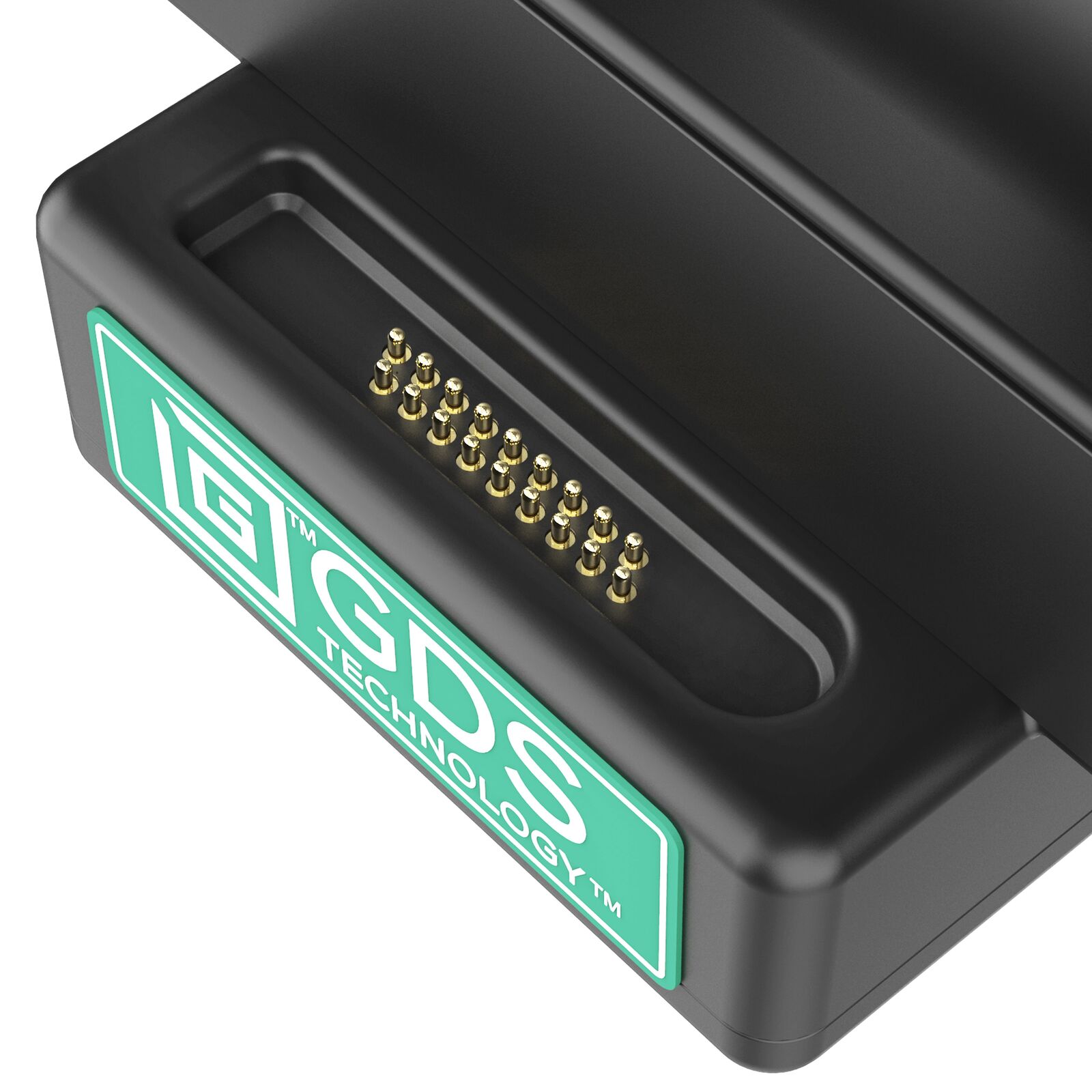

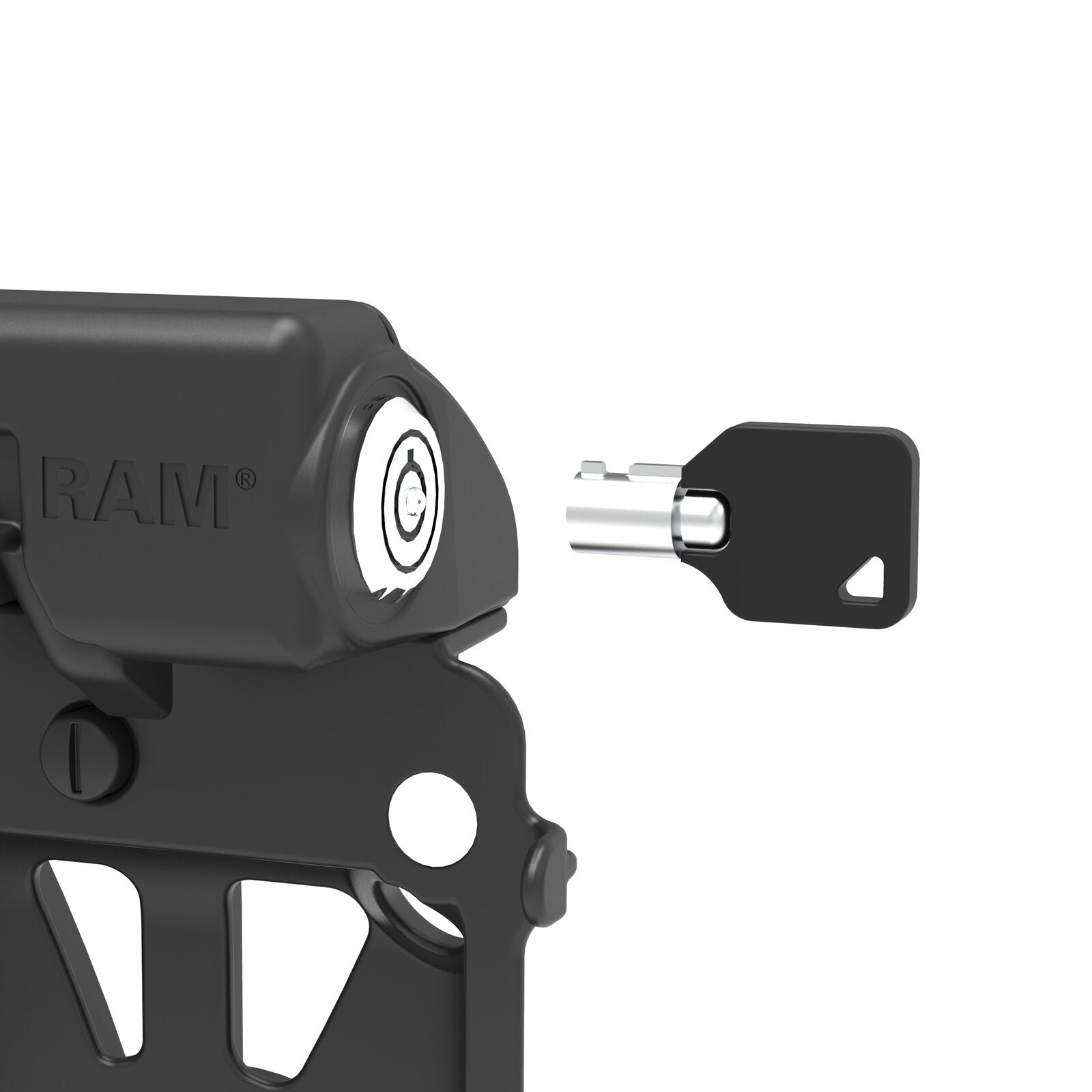

  • Spring-loaded key locking vehicle dock featuring GDS® Technology™ for data and charging capabilities with USB Type-C
  • Designed specifically for the Samsung Galaxy Tab A 8.4 (2020) in an IntelliSkin® Next Gen protective sleeve
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

Specs

Hardware Included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C

Transfer Speed

5Gbps

Warranty

3 year warranty

Weight

1.43 lb

Additional Information

IntelliSkin® not included. The 3.5mm audio jack is blocked while in the dock. If access to this port is needed, see RAM-GDS-DOCKL-V9-SAM67CU.
