RAM Mounts

$462.00

Out of stock

Available on backorder

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-GDS-DOCKL-SAM78CU Category
Overview

Overview

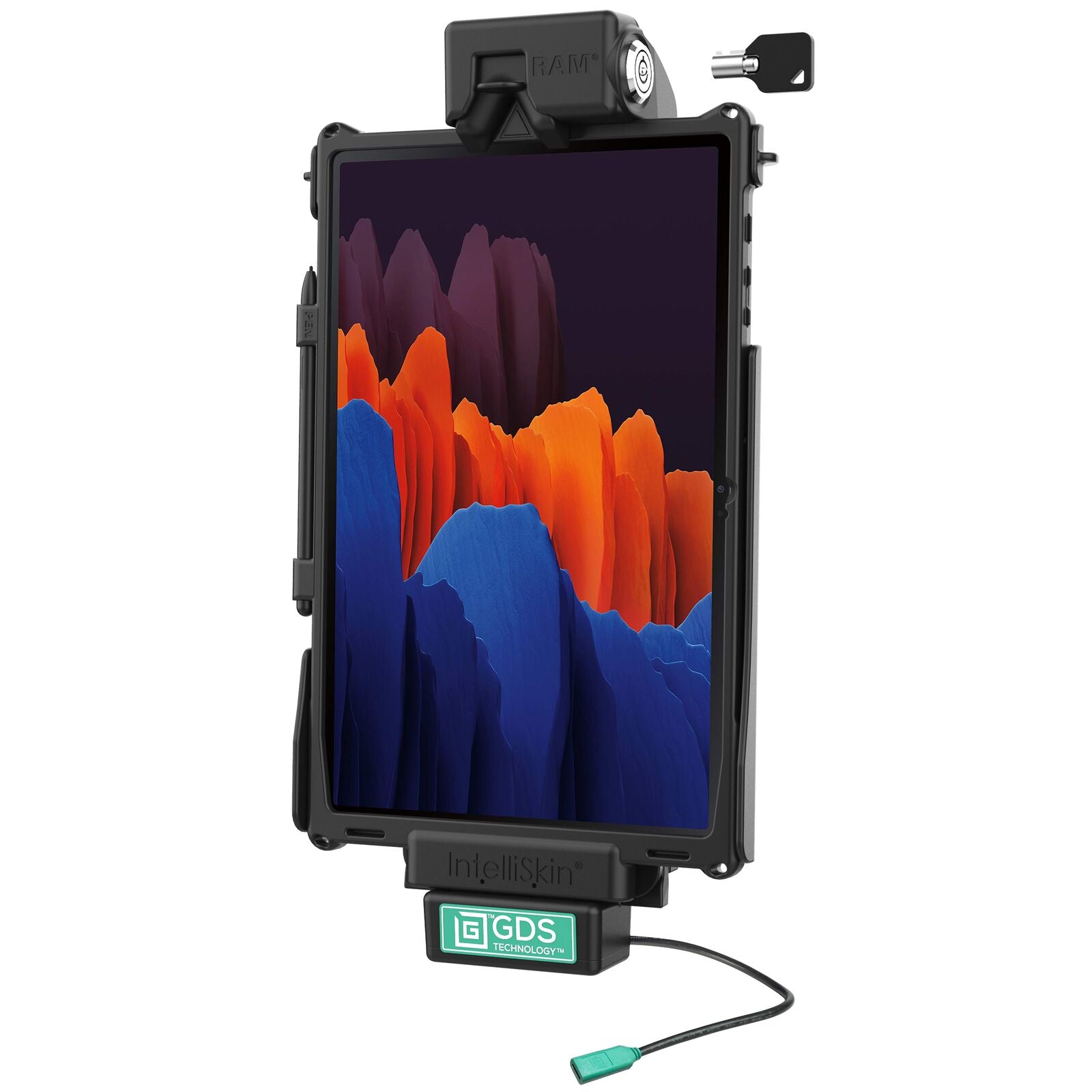

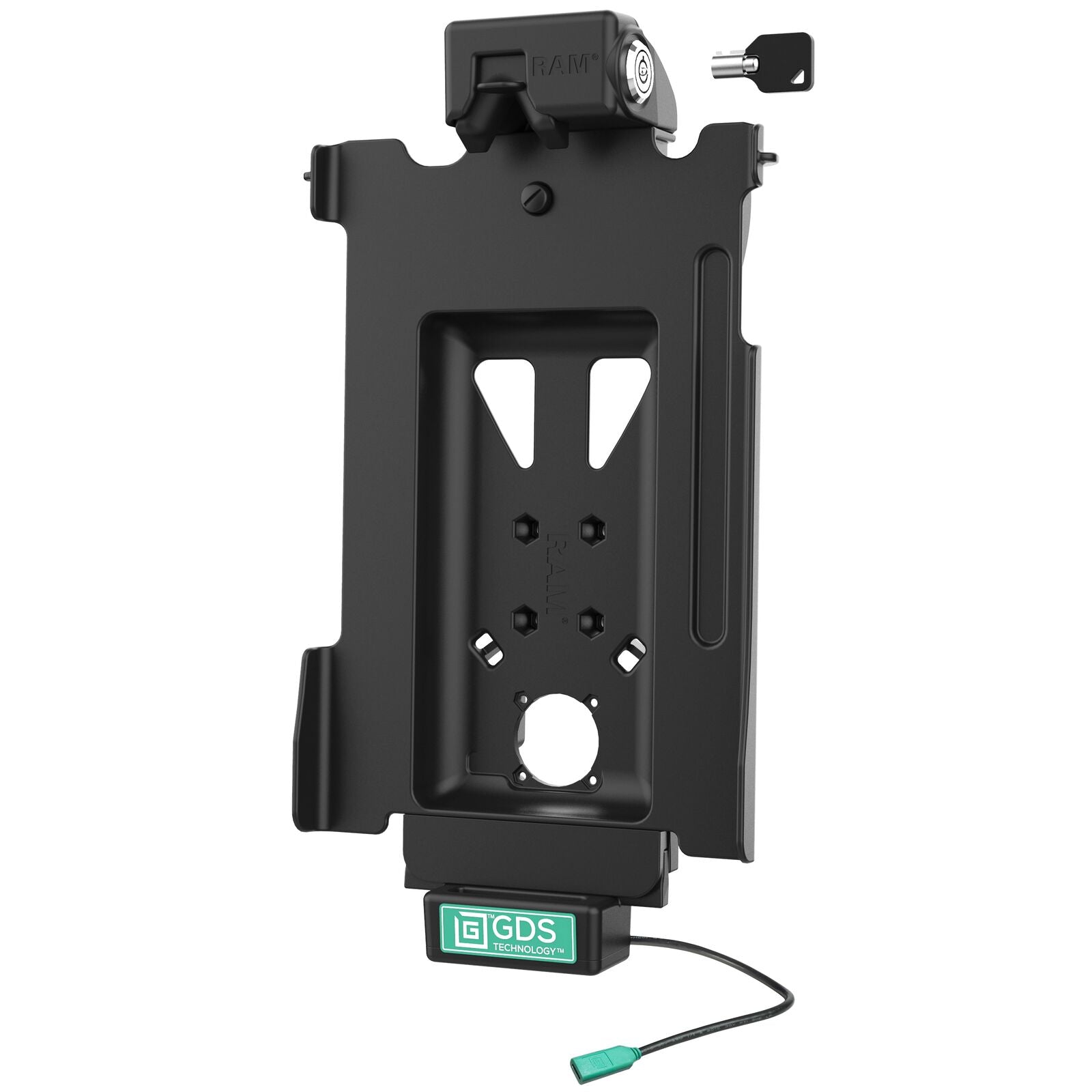

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab S9+, S9 FE+, Tab S8+, S7+ 12.4" SM-T970 and S7 FE SM-T736B in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports data syncing and charging capabilities for the Samsung Galaxy Tab S9+, S9 FE+, Tab S8+, S7+ 12.4" SM-T970. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

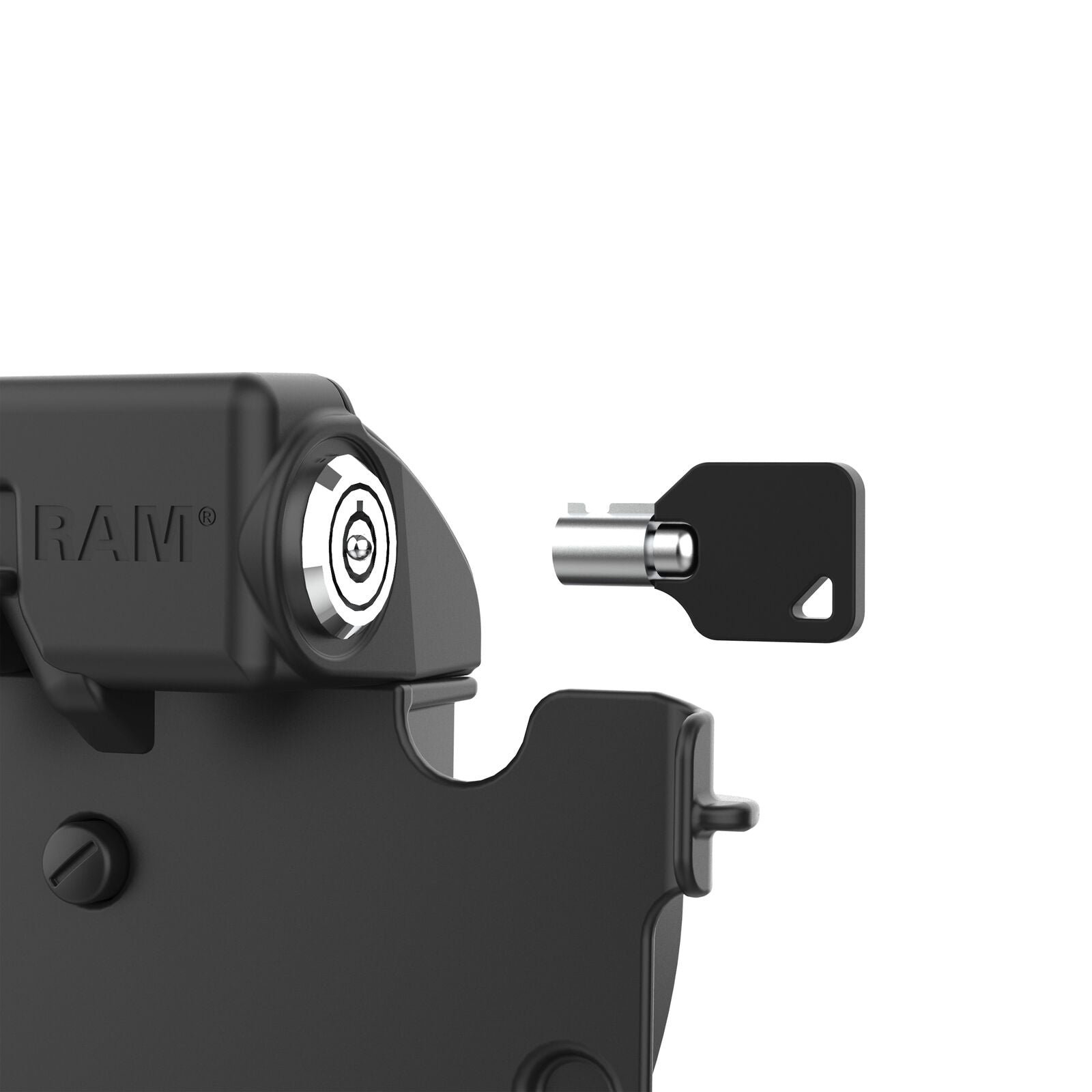

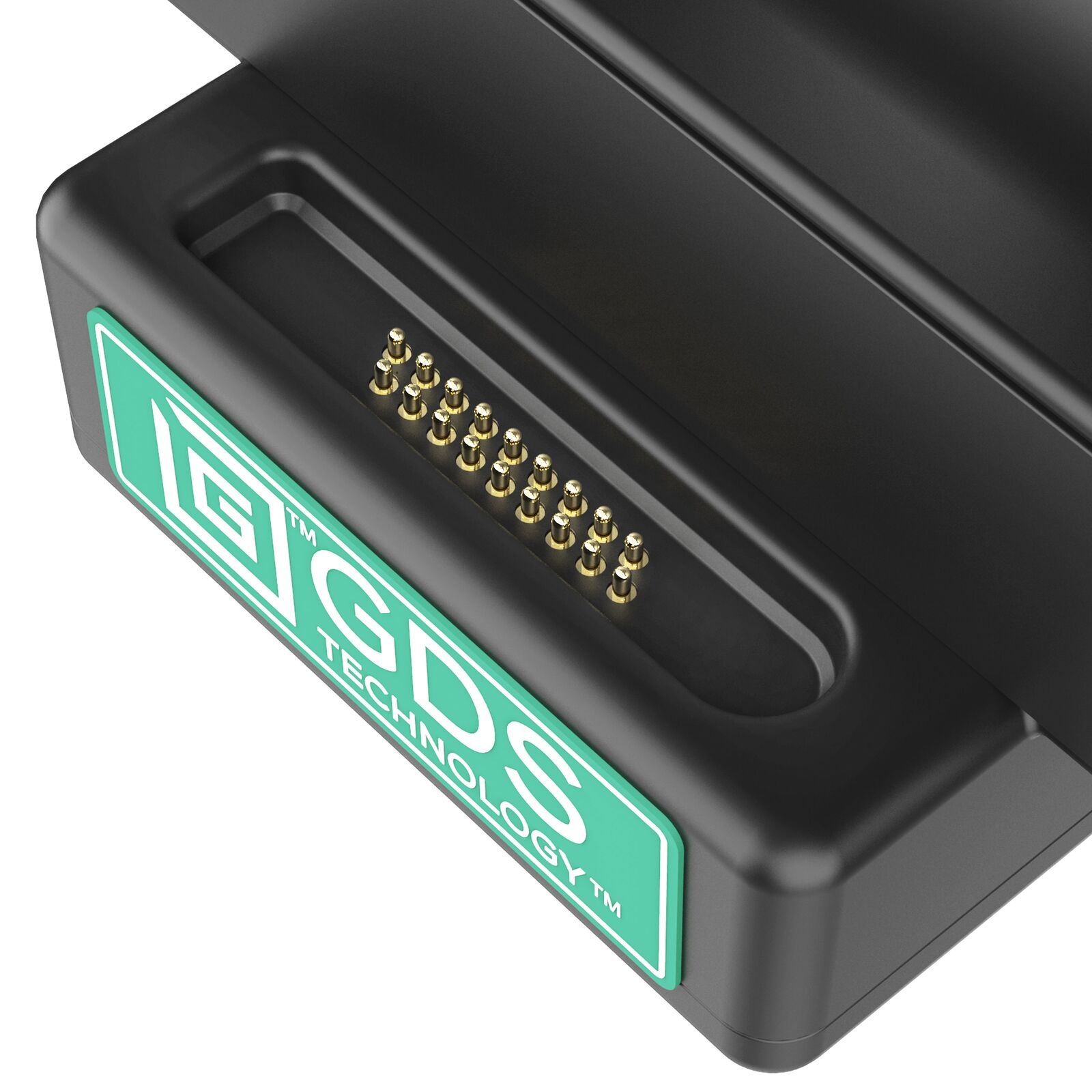

  • Spring-loaded key locking vehicle dock featuring GDS® Technology™ for charging capabilities; uses USB Type-C power cord to enable the GDS® Tough-Dock™
  • Designed specifically for the Samsung Galaxy Tab S10+, S9+, S9 FE+, Tab S8+, S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) wrapped in an IntelliSkin® Next Gen protective sleeve
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

Specs

Hardware Included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C

Transfer Speed

5Gbps

Warranty

3 year warranty

Weight

1.73 lb

Additional Information

IntelliSkin® not included.
