Locking GDS Tough-Dock + Single USB-A for Samsung Tab A8 10.5″ SM-X200

RAM Mounts

$506.00

Out of stock

Available on backorder

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-GDS-DOCKL-SAM83CDU Category
Overview

Overview

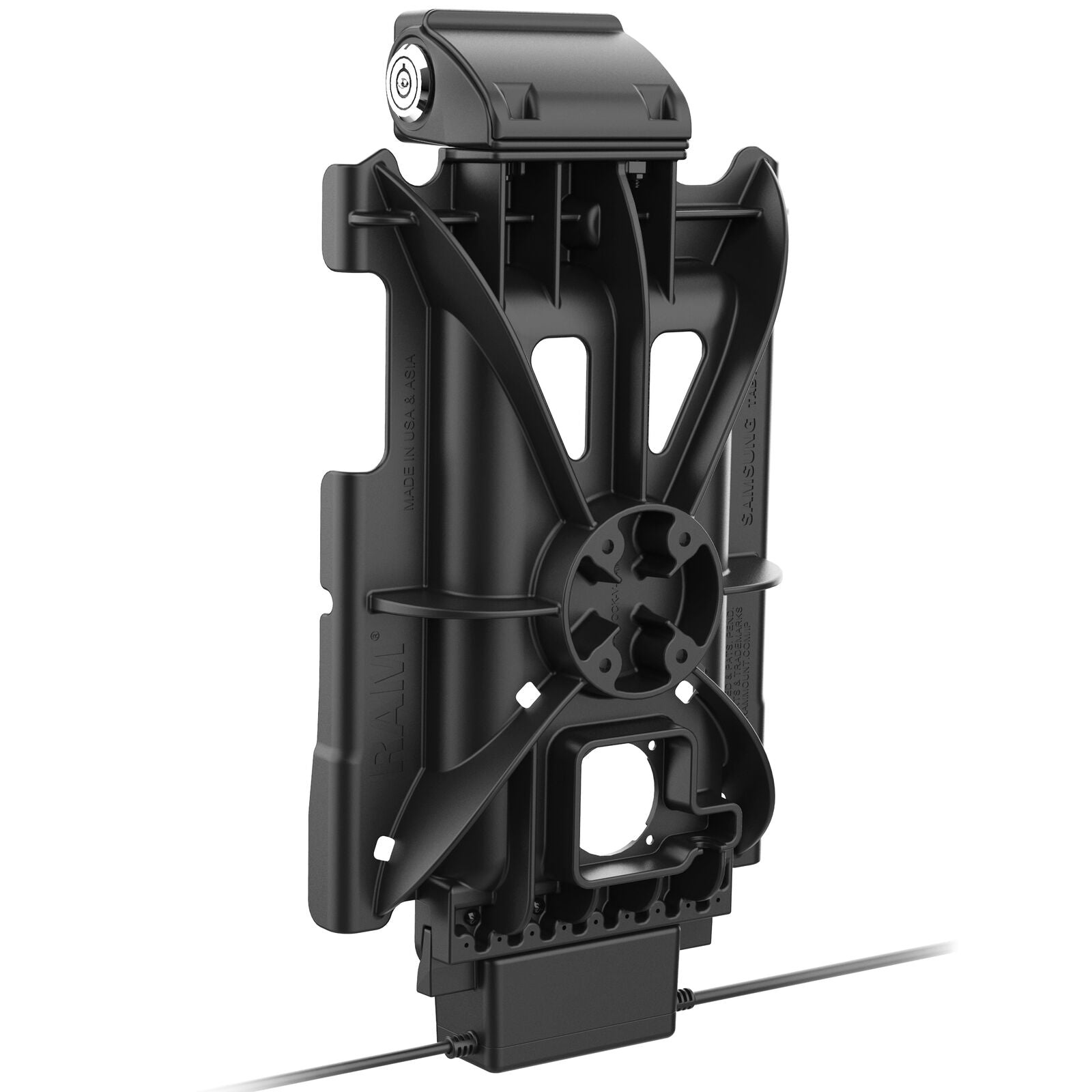

This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

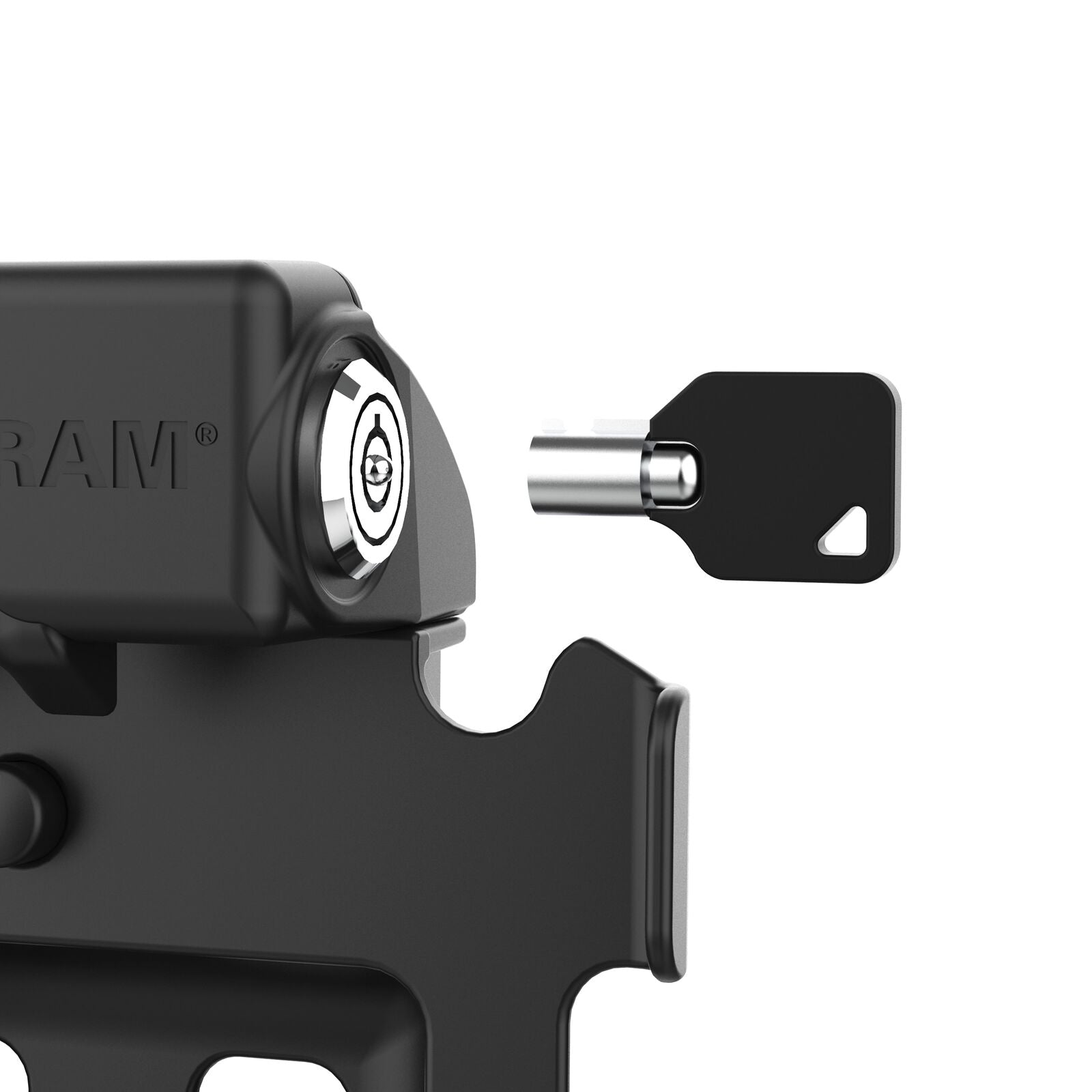

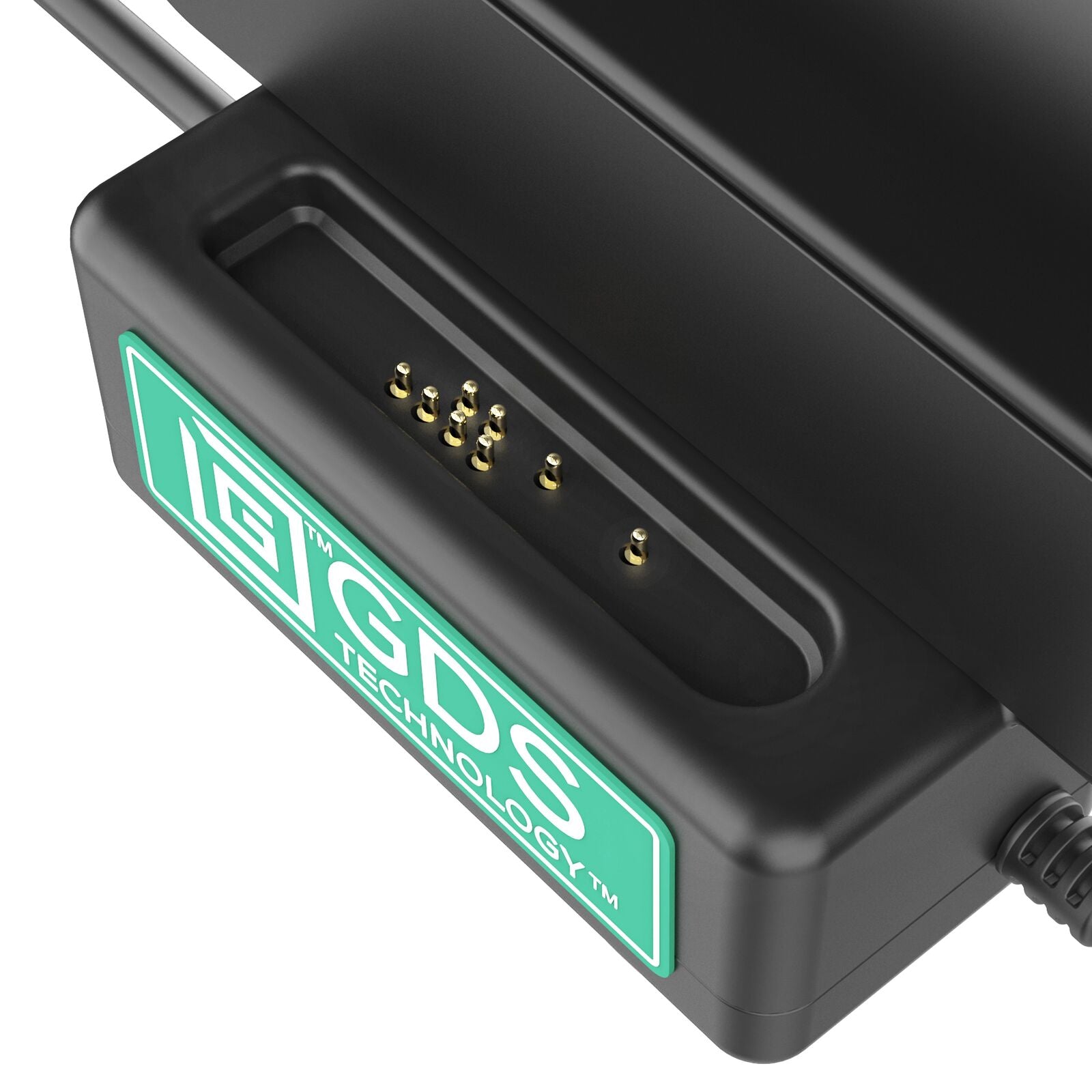

  • Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
  • Designed specifically for the Samsung Galaxy Tab 10.5" SM-X200 wrapped in an IntelliSkin® Next Gen protective sleeve

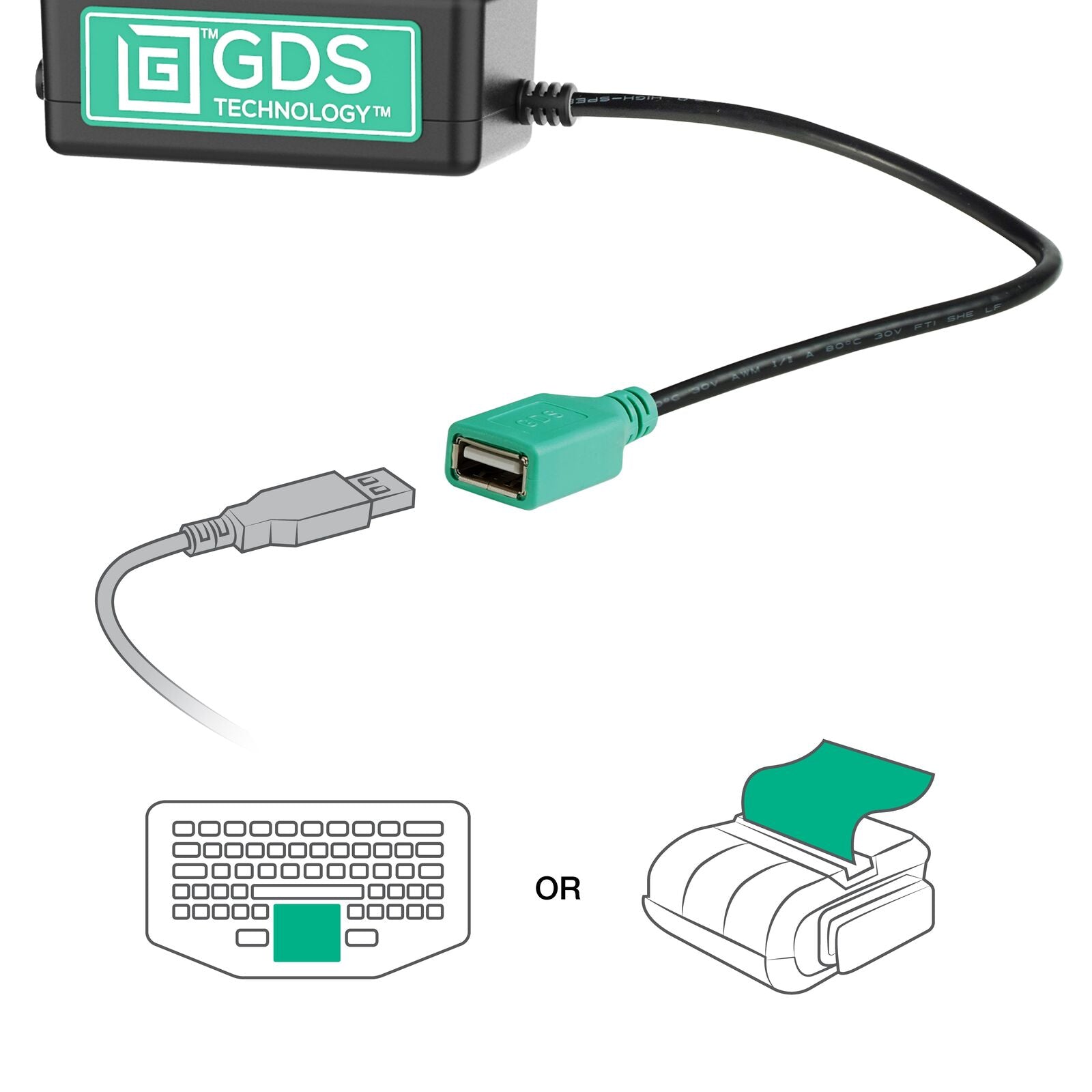

  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

Specs

Hardware Included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C
USB Type A for 1 Peripheral

Output Cable Length

.21 Meters

Peripheral Output

500mA

Warranty

3 year warranty

Weight

1.6 lb

Additional Information

IntelliSkin® not included.
