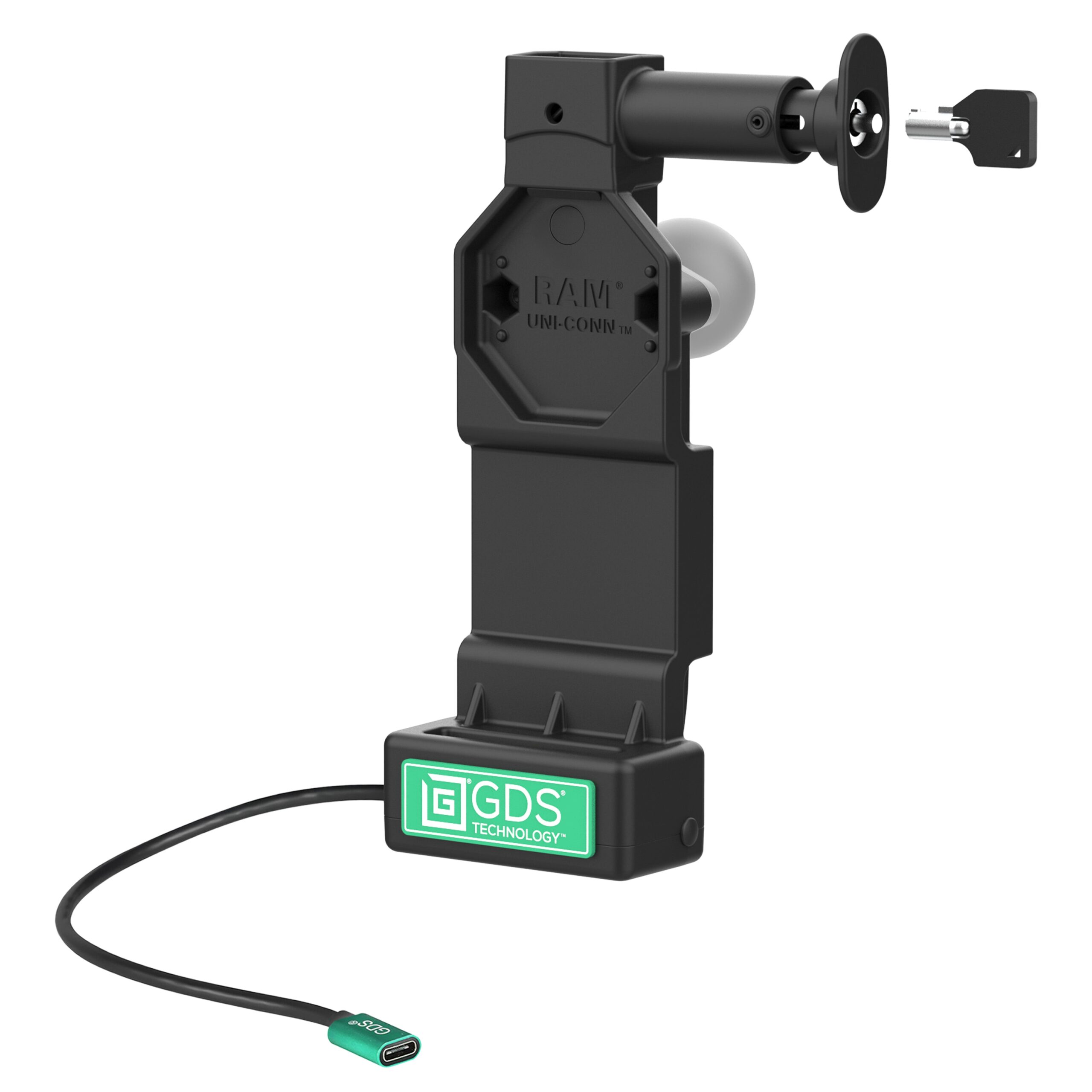

GDS® Uni-Conn™ Locking Dock with Release Button

GDS® Uni-Conn™ Locking Dock with Release Button

OVERVIEW

The GDS® Uni-Conn™ Locking Dock with Release Button (RAM-GDS-DOCKL-U4CPU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

HARDWARE INCLUDED

(2) Keys (2) #8-32 x 5/8" Machine Screws (2) #8-32 Nylock Nuts (1) Cable Clamp Kit

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

INPUT CABLE LENGTH

215mm

WARRANTY

3 year warranty

WEIGHT

0.6 lb

ADDITIONAL INFORMATION

GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
