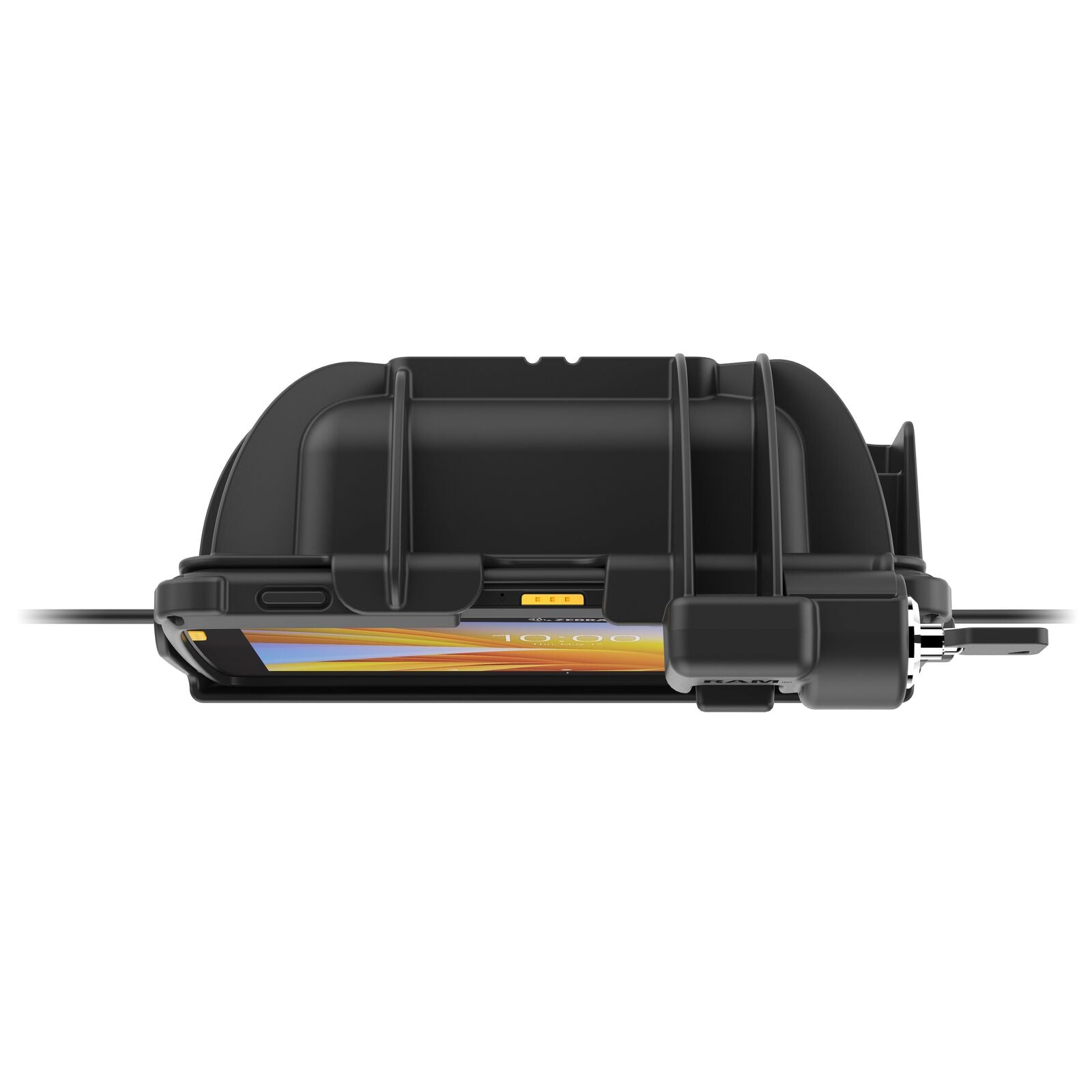

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin - Image 1

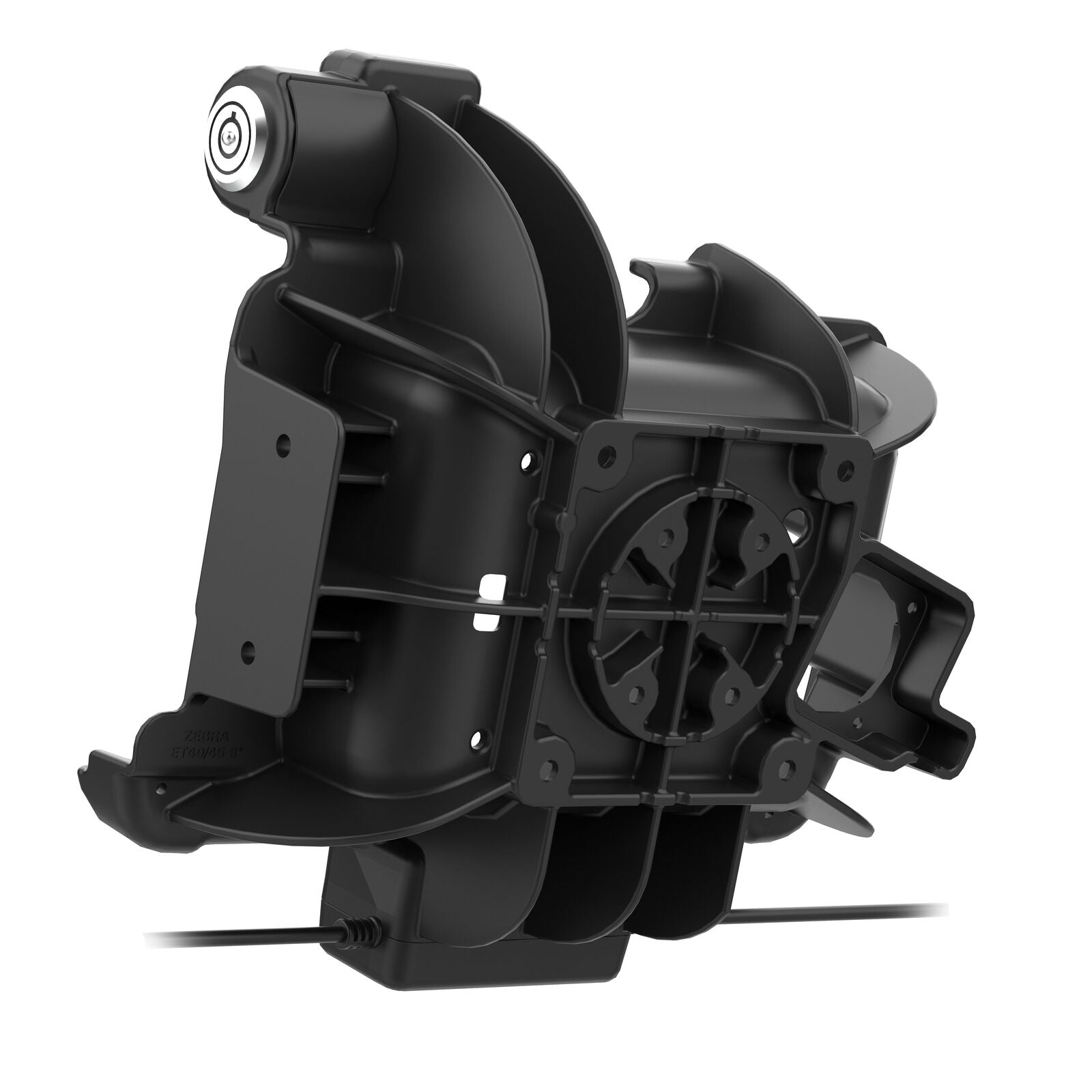

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin - Image 2

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin

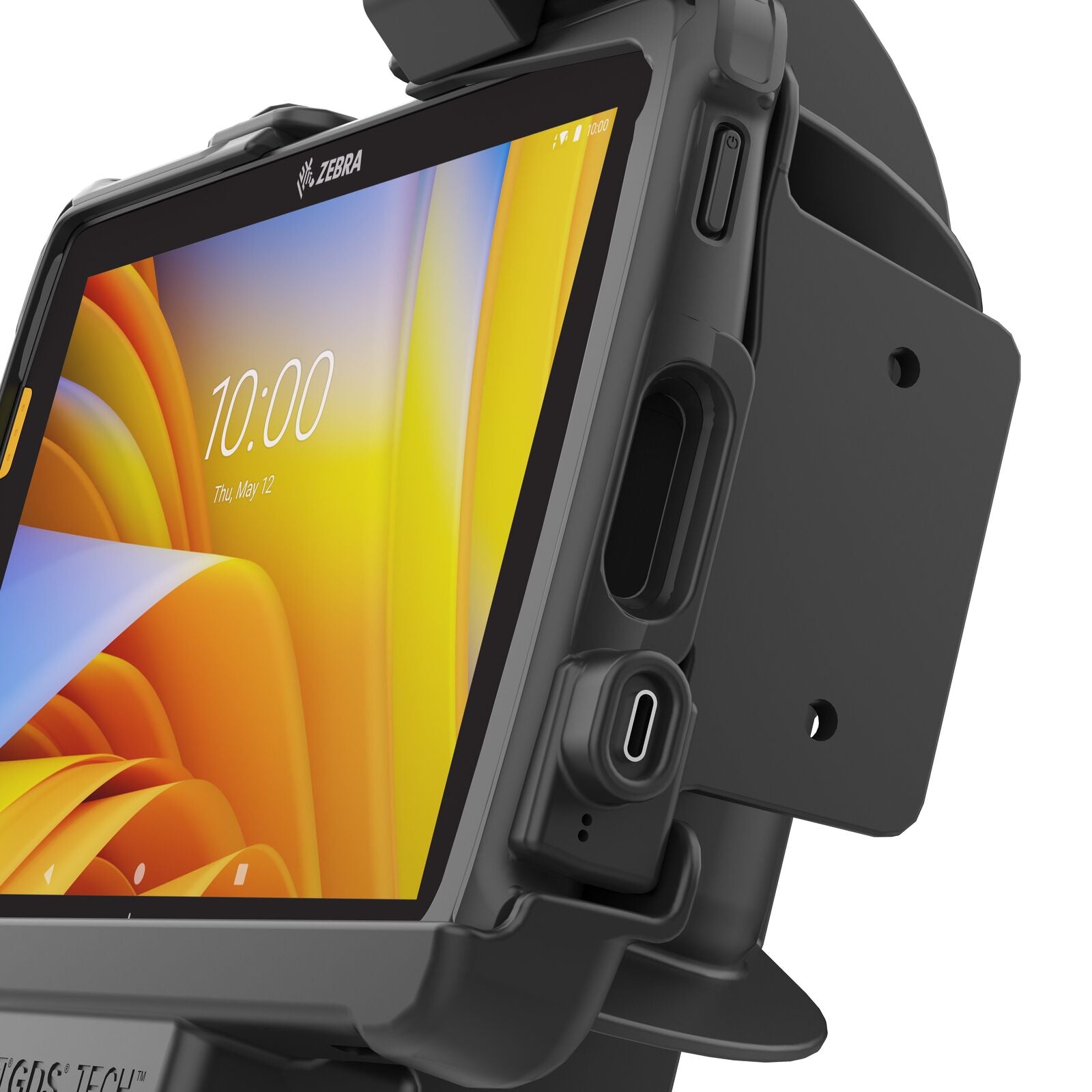

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin - Image 3

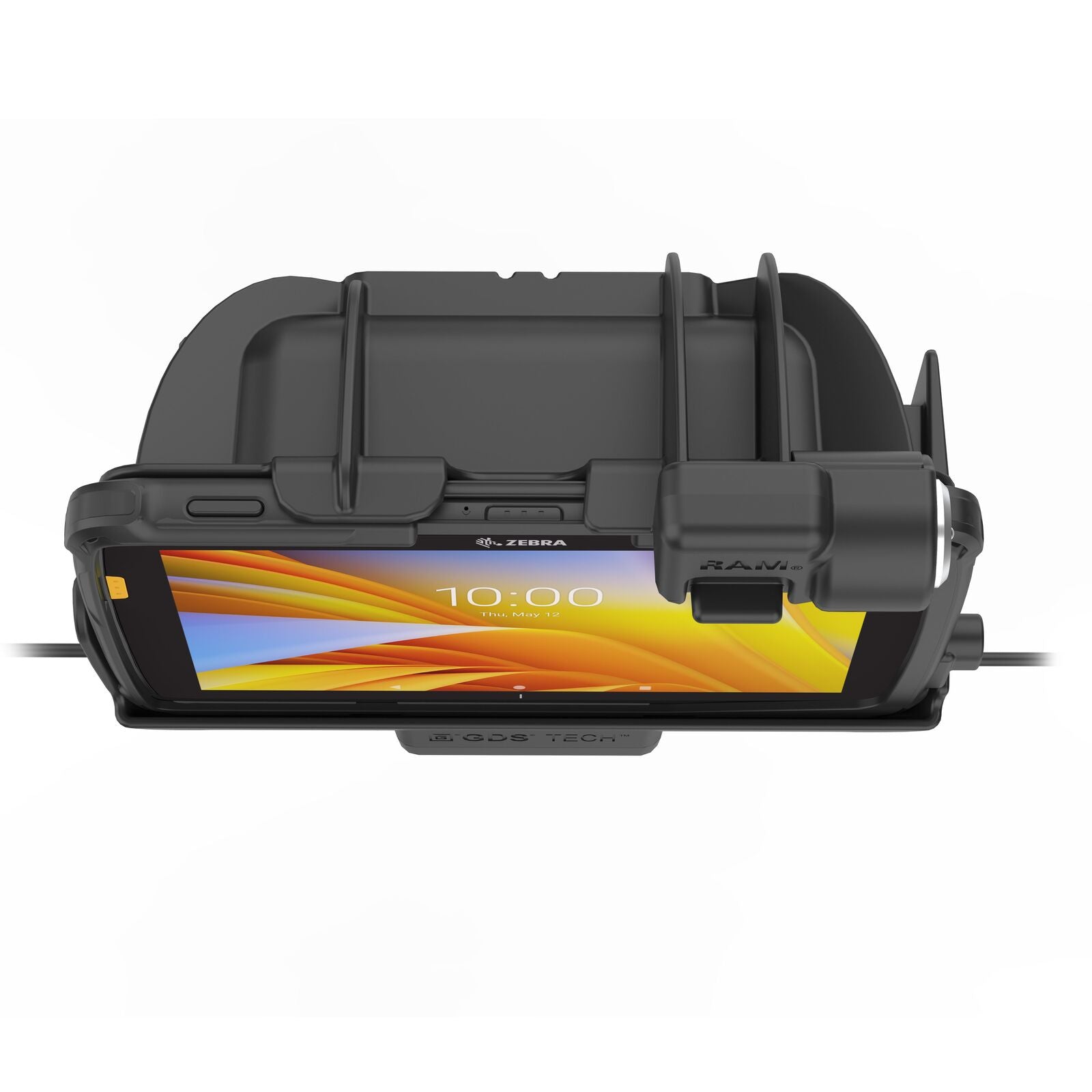

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin - Image 4

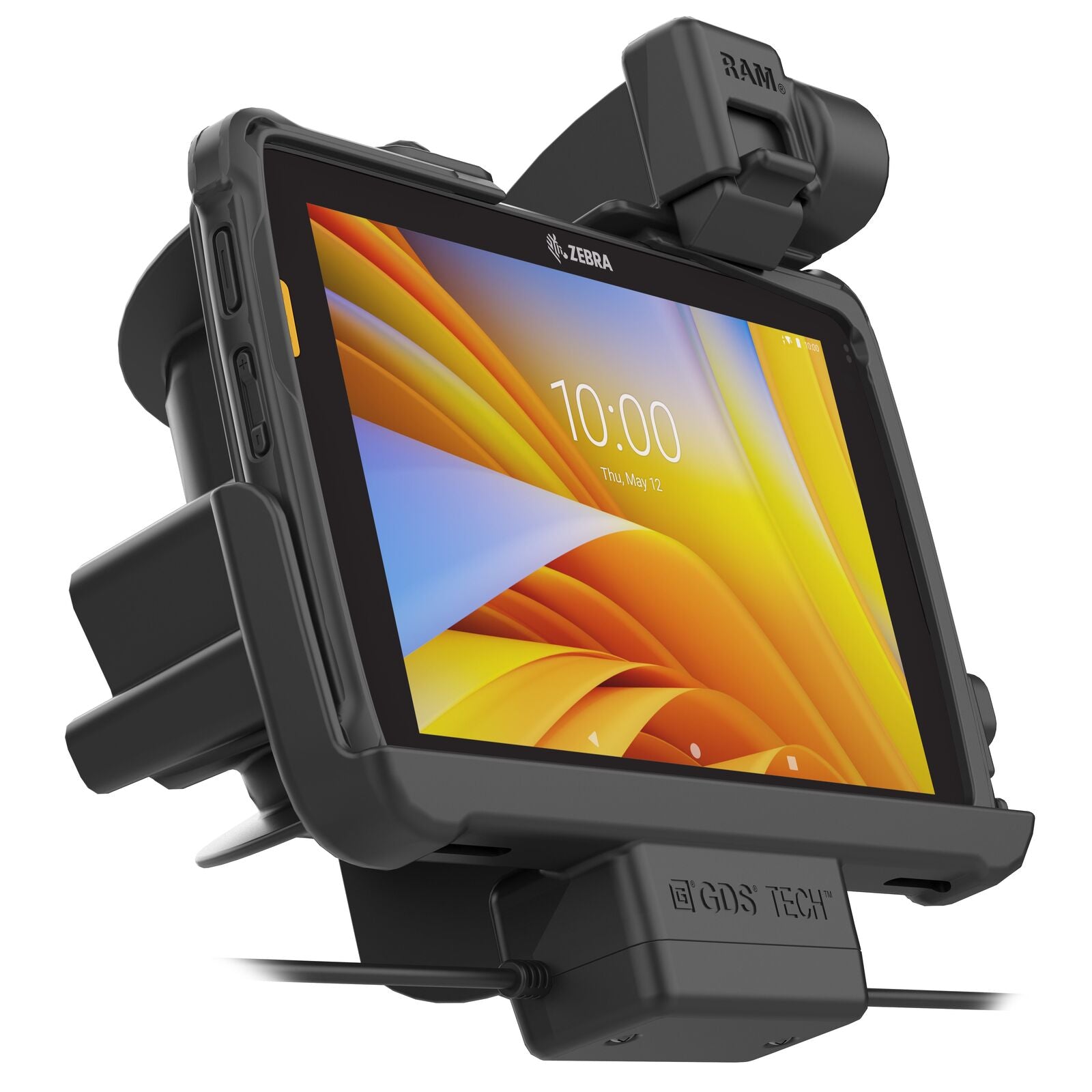

Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin - Image 5

Locking GDS Dock + Data for Zebra ET401 & ET4x 8″ with IntelliSkin

Name: Locking GDS Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin
Brand: RAM Mounts
SKU: RAM-GDS-DOCKL-ZE20PDU
Availability: OutOfStock

$536.00

Out of stock

Available on backorder

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAM-GDS-DOCKL-ZE20PDU Category Tablet Mounts

Overview

Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock works with the Zebra ET401, ET40, and ET45 8" enterprise tablets with an IntelliSkin® protective sleeve. This dock allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®

Features

Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET401, and ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

Specs

Hardware Included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
