Locking GDS Power + Data Dock for Zebra ET4x 10″ with IntelliSkin

FEATURES

• Locking powered dock featuring GDS^® Technology^™ with data and charging capabilities for the Zebra ET40 & ET45 10" tablets with IntelliSkin^® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested

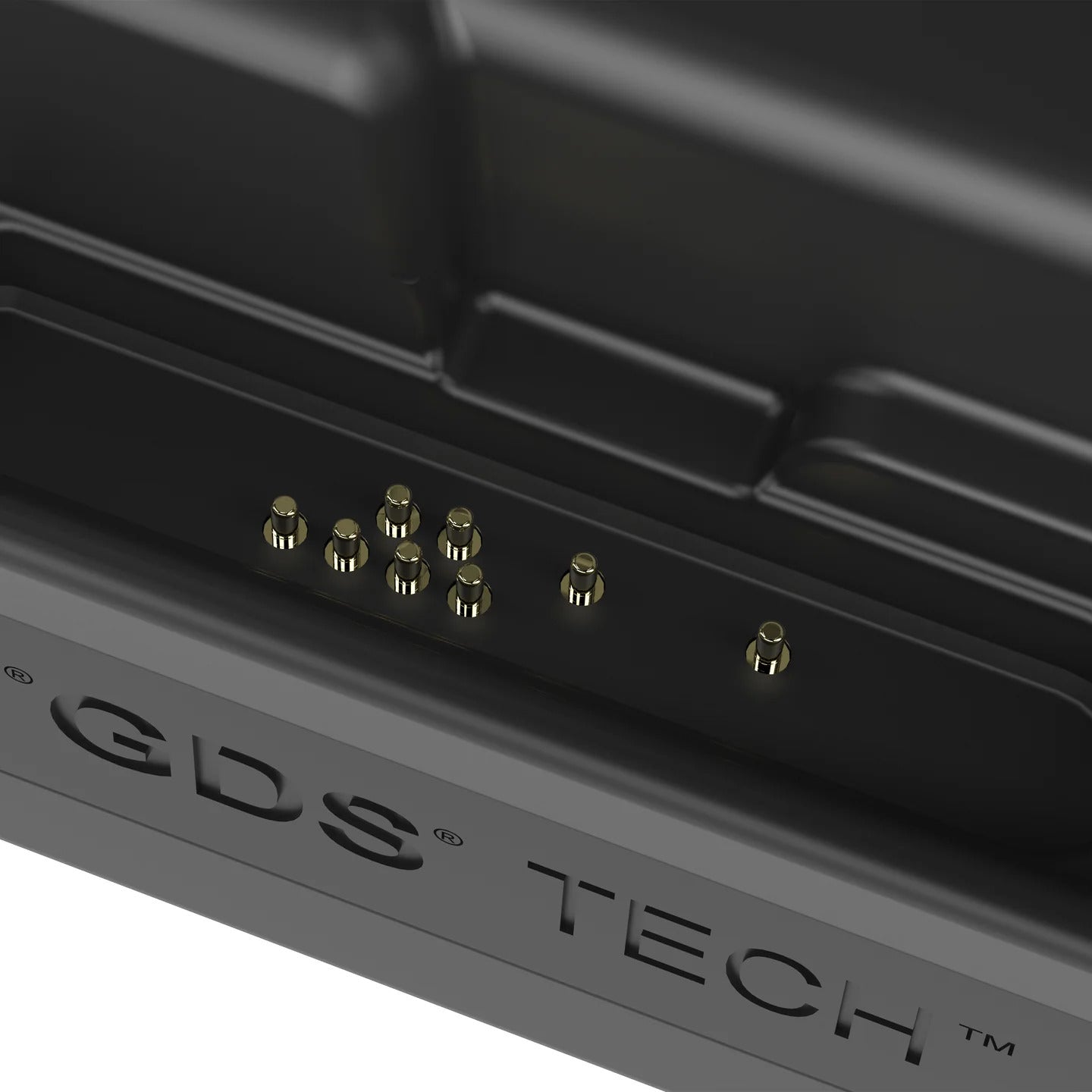

• When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
• Compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM^® 2-hole diamond bases and accessory side bracket
• Backed by a 3-year warranty

OVERVIEW

Featuring GDS^® Technology^™ for data and charging capabilities and a key lock for theft deterrence, the GDS^® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin^® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone or other handheld device.

HARDWARE INCLUDED

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

INPUT CABLE LENGTH

.21 Meter

OUTPUT CONNECTOR

USB 2.0 Type A

OUTPUT CABLE LENGTH

.24 Meter

TRANSFER SPEED

12Mbps

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY

3 year warranty

WEIGHT

1.84 lb

ADDITIONAL INFORMATION

IntelliSkin^® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin^®.
