GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A11+

GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A11+

OVERVIEW

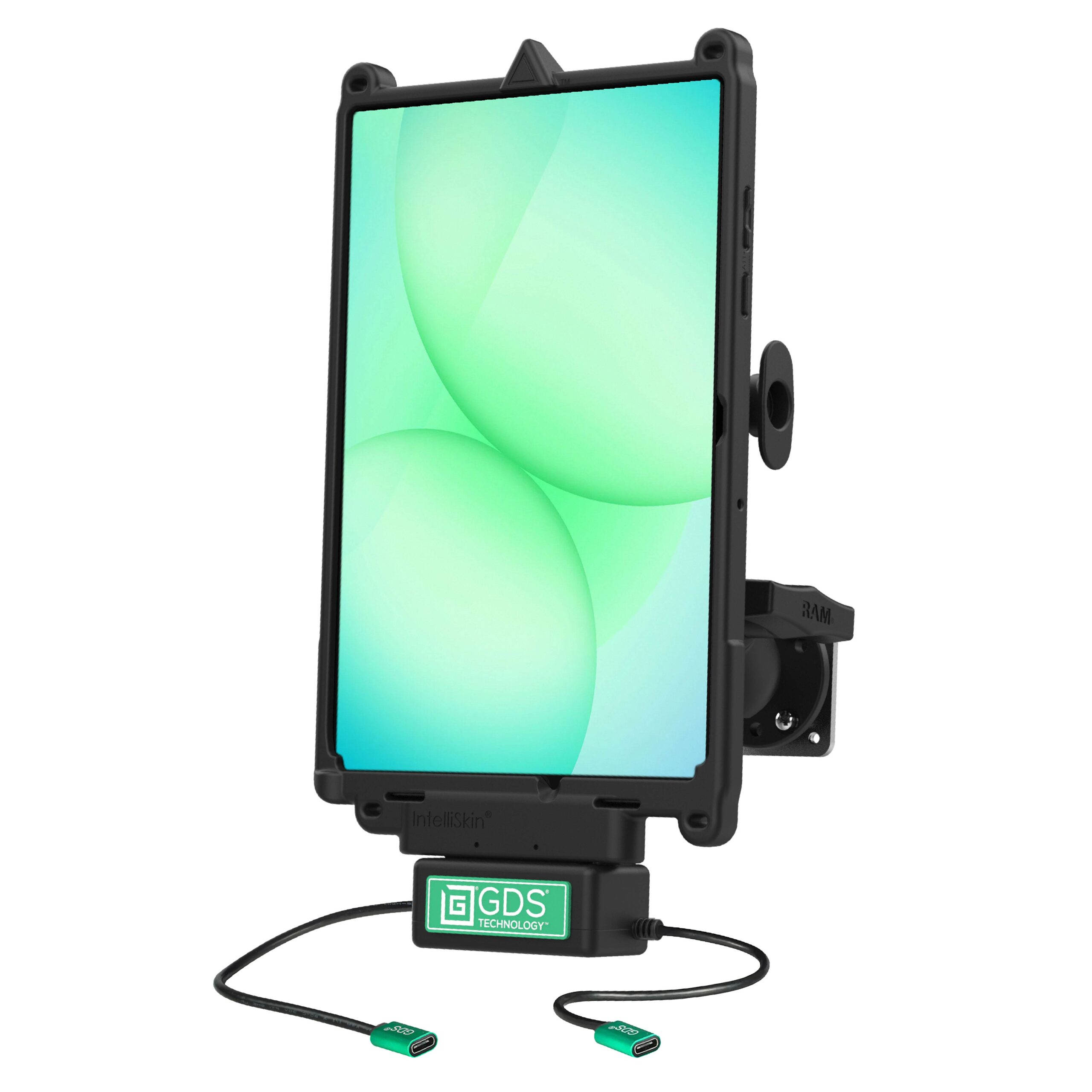

The GDS® Uni-Conn™ Vehicle Bundle with Release Button + Single USB-C for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection. This bundle is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® for the Tab A11+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™

HARDWARE INCLUDED

Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers(2) Cable Clamps(1) Vehicle Hardwire Charger

SOCKET TO SOCKET LENGTH

2.5"

BALL SIZE

C Size (1.5")

MATERIALS

SteelMarine-grade aluminumHigh strength composite

PACKAGING TYPE

Box

INPUT VOLTAGE

10-30VDC

OUTPUT VOLTAGE

5-9VDC*

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

USB Type-CUSB Type-C for 1 Peripheral

INPUT CABLE LENGTH

215mm

OUTPUT CABLE LENGTH

215mm

PERIPHERAL OUTPUT

500mA

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

REGULATORY

Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture ResistantFCC, CE, UKCA, IC

CERTIFICATIONS

E-Mark CertificationRCM CertificationIEC/UL 62368-1

WEIGHT

4.23 lb
