RAM Form-Fit Locking Cradle for Garmin Dezl 770LMTHD

FEATURES

• Open access to all electronic ports including speaker, microphone, and SD slots
• Form fitted cradle made of high strength materials ensures product longevity and protects device without vibration
• Built in visor prevents glare on screen
• Integrates the factory Garmin magnetic dock for charging
• Locks device in place so it cannot be removed without the use of tools

OVERVIEW

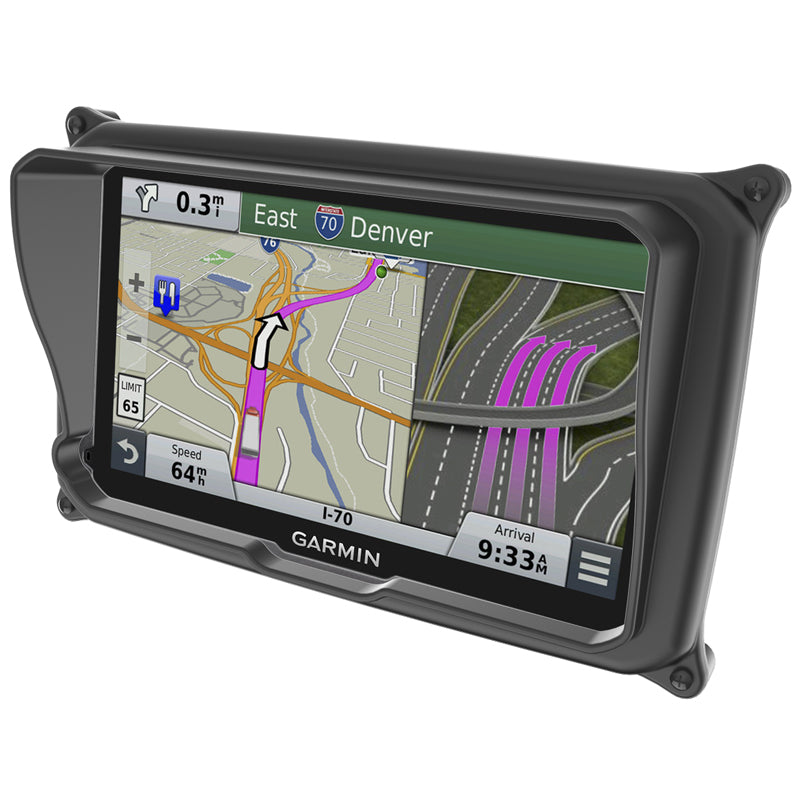

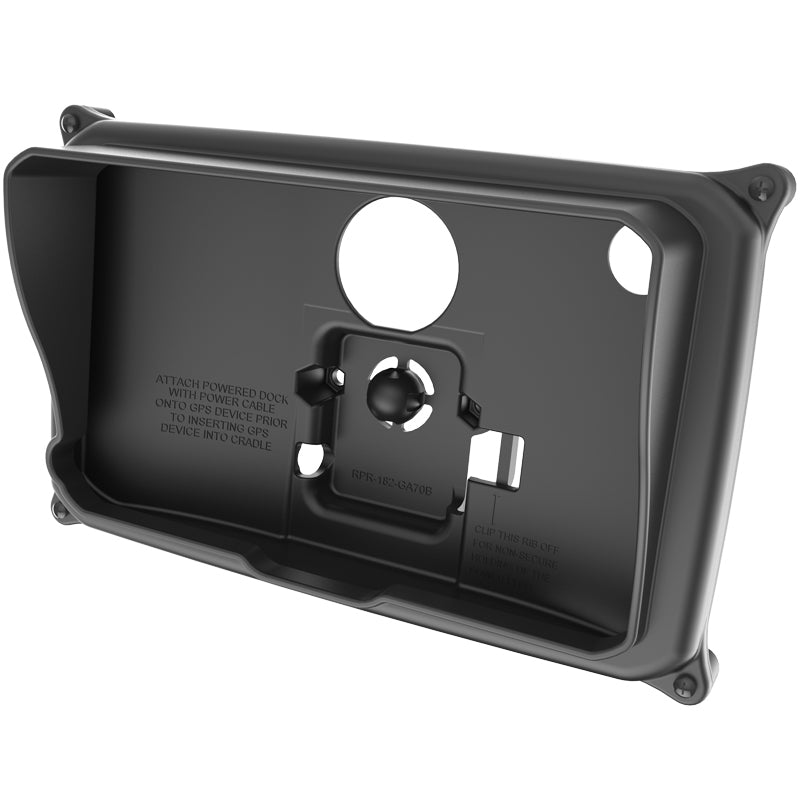

The RAM-HOL-GA70LU is a high-strength composite locking case for the Garmin dezl 770LMTHD. RAM has designed a form-fit cradle that supports the device and protects it from vibration. We have also molded in a sun visor to shield the screen and the diamond hole pattern allows the attachment to all RAM components or mounts that contain the universal AMPs hole pattern. Compatible and interchangeable with a wide range of popular RAM mounting products, this locking case is ready to compliment your GPS and become the most useful accessory in your vehicle.

Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

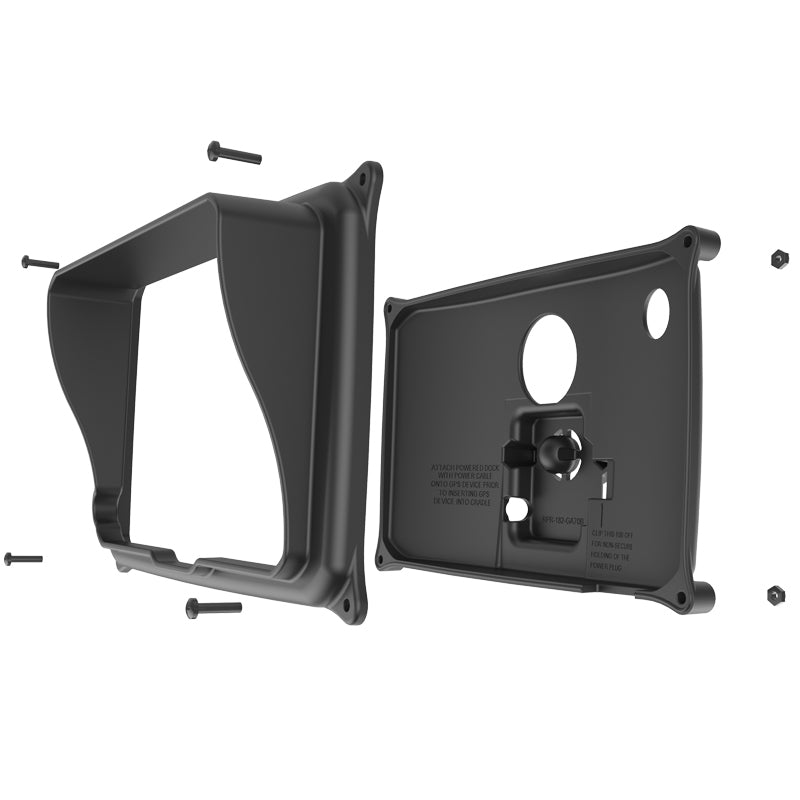

HARDWARE INCLUDED

Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) 4" Cable Tie

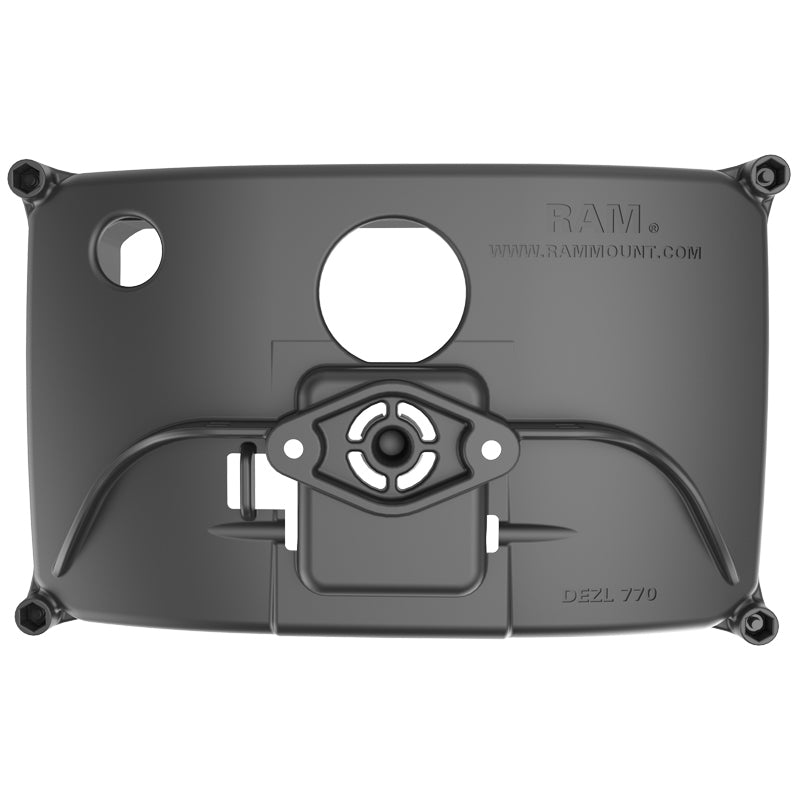

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

WEIGHT

0.55 lbs.
