RAM® EZ-Roll’r™ Power & Data Dock for Tab Active5 Pro & 4 Pro
$196.00
In stock
Device holder: tablets.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview

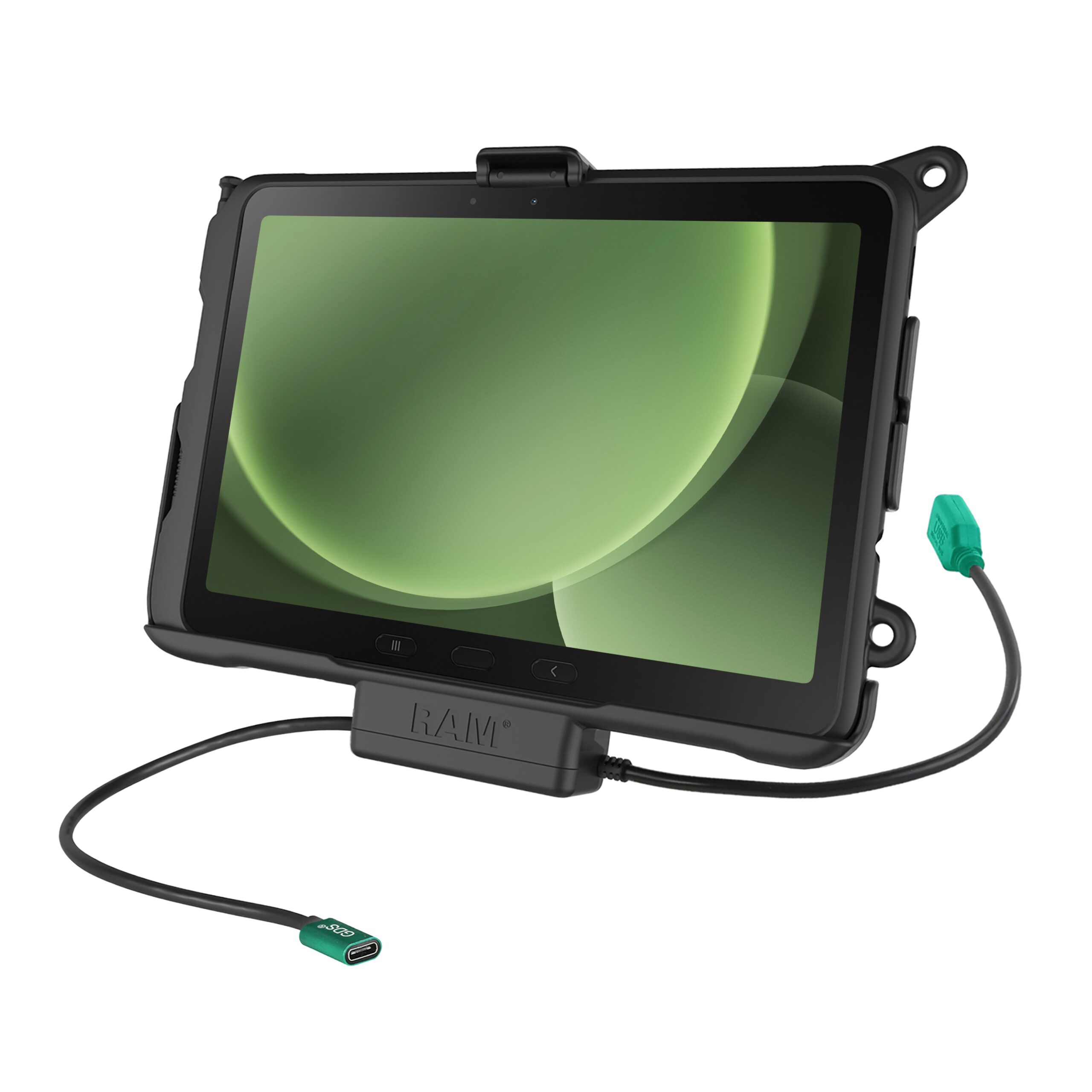

The RAM® EZ-Roll’r™ powered/data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.
Features
- Powered dock provides charging and data transfer capabilities for Samsung GalaxyTab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
- Easily insert and remove the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro with one hand
- Compatible with factory skin and RAM® Skin™
- Backed by a 3-year warranty
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
250mm
Output Connector
USB 1.1 Type A
Output Cable Length
250mm
Peripheral Output
500mA
Transfer Speed
12Mbps
Warranty
3 year warranty
Weight
0.74 lb
Additional Information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.
This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here.
This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
