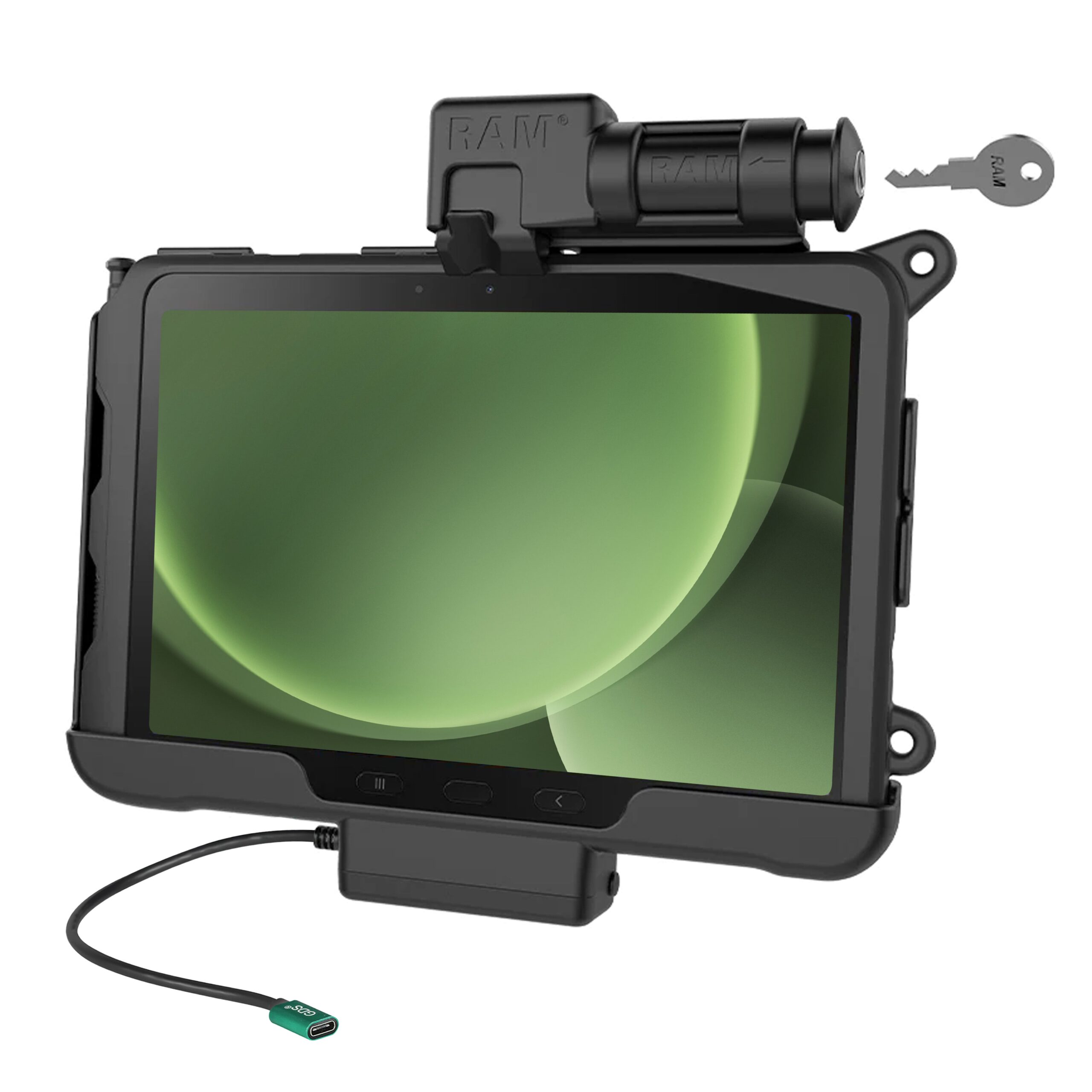

RAM Key-Locking USB-C Powered Dock for Tab Active4 Pro & Tab Active Pro
$320.00
In stock
Device holder: tablets.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview
This powered cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a keyed lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.
Features
- Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector (Non-Power Delivery charger required)
- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Warranty
3 year warranty
Weight
1.21 lb
Additional Information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.
This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
