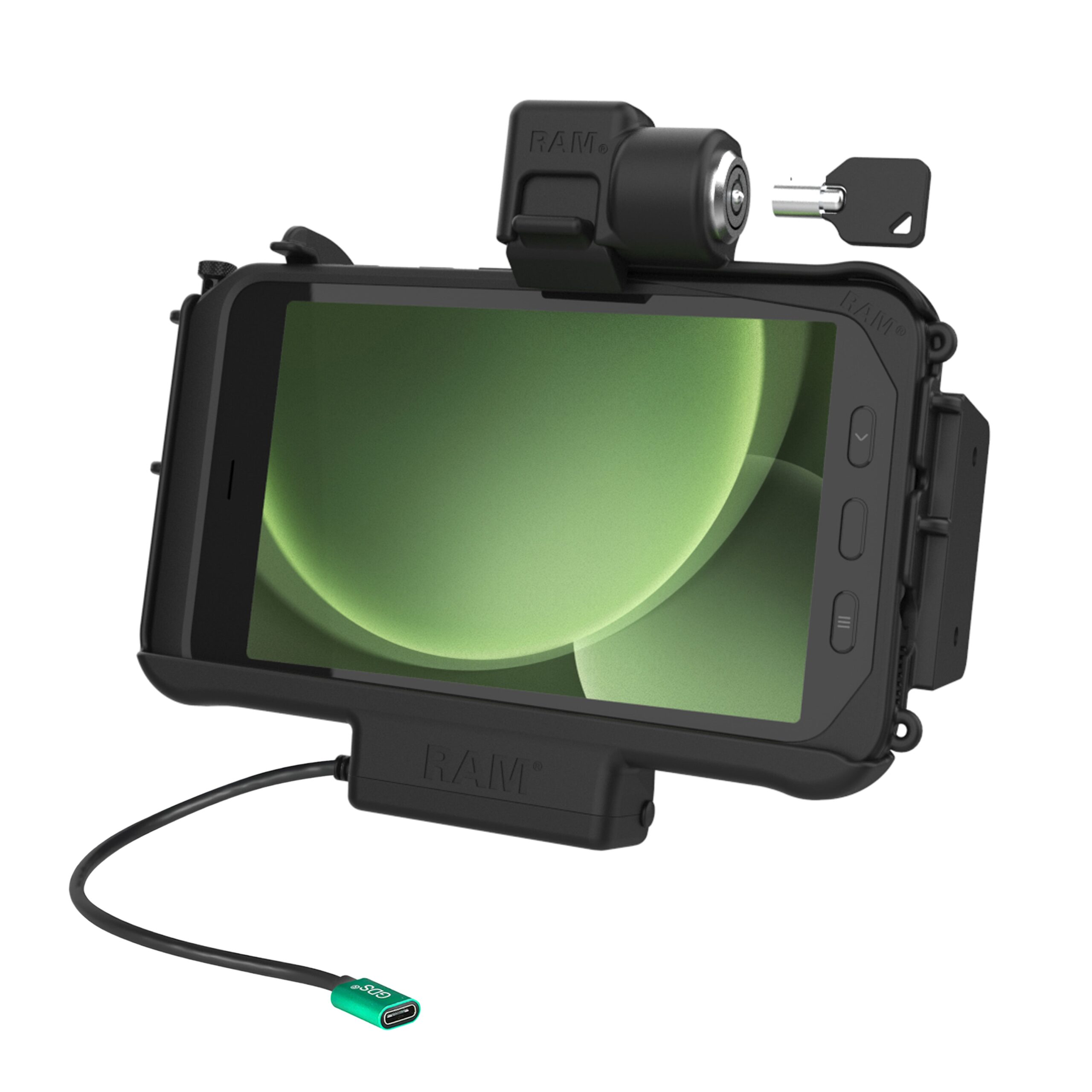

RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3 - Image 1

RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3 - Image 2

RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3

RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3 - Image 3

RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3

Name: RAM Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3
Brand: RAM Mounts
SKU: RAM-HOL-SAM58CPKLNU
Availability: InStock

$310.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAM-HOL-SAM58CPKLNU Categories RAM Mounts, Tablet Mounts

Overview

The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

Features

Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable (Non-Power Delivery charger required)
Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
Compatible with the Samsung OEM skin as well as the RAM® Skin™
Backed by a 3-year warranty

Specs

Hardware Included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Input Voltage

5.3-5.4VDC

Output Voltage

5VDC

Power Output

500mA

Input Connector

USB Type-C Female

Input Cable Length

215mm

Warranty

3 year warranty

Weight

1.2 lb

Additional Information

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

This dock is not compatible with the GDS® Hand-Stand™.
