RAM Combo Locking Power + Data Dock for Samsung Tab Active5 & 3

FEATURES:

• Powered cradle featuring combination lock for the Samsung Galaxy Tab Active3 and Tab Active2
• RAM^® Mounts Compatible^™ with AMPS hole pattern components
• Made of high-strength composite materials for durability and reliability in the most demanding environments
• Backed by a 3-year warranty

OVERVIEW

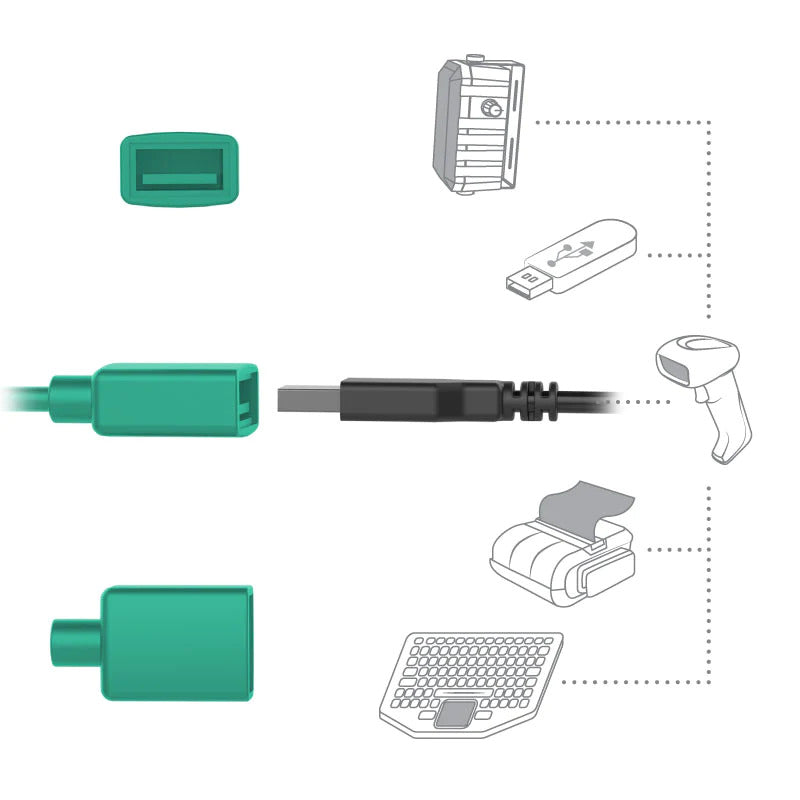

This combination locking RAM^® EZ-Roll’r^™ power cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS^® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM^® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS^® Hand-Stand^™ attachment so you can easily take your Tab Active3 or Tab Active2 from your vehicle, to your person, to your desk with zero hassle.

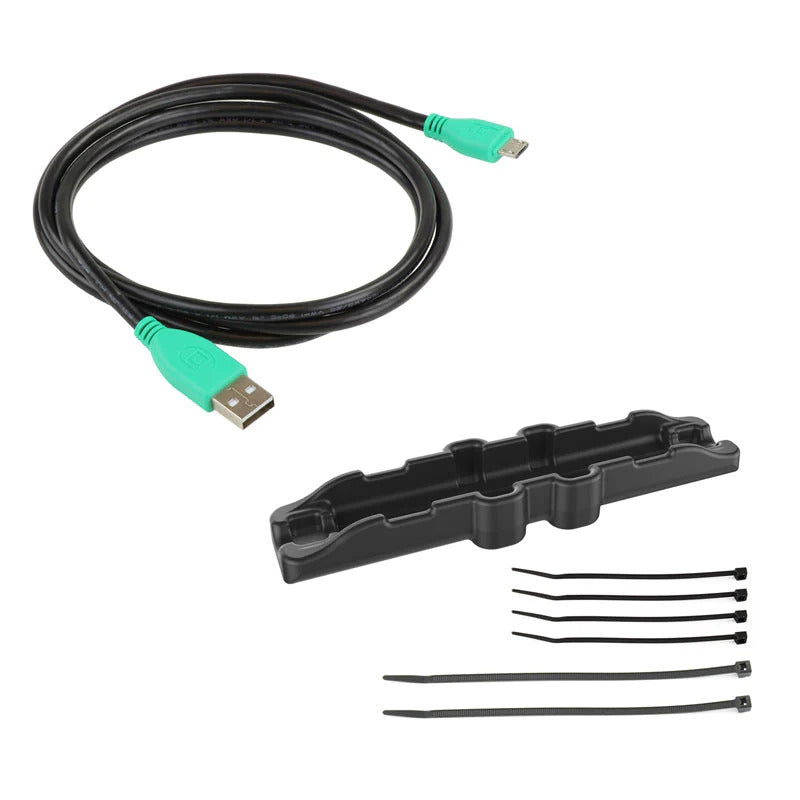

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS^® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"
Height: 7.75"
Depth: 3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

5.20VDC

POWER OUTPUT

500mA

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.22 Meter

OUTPUT CONNECTOR

USB 1.1 Type A

OUTPUT CABLE LENGTH

.22 Meter

TRANSFER SPEED

12Mbps

WARRANTY

3 year warranty

WEIGHT

1.1 lb

ADDITIONAL INFORMATION

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM^® Tough-Case^™ options here.
