RAM Mounts

$77.00

In stock

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-HOL-TAB-SAM29U Category
Overview

Overview

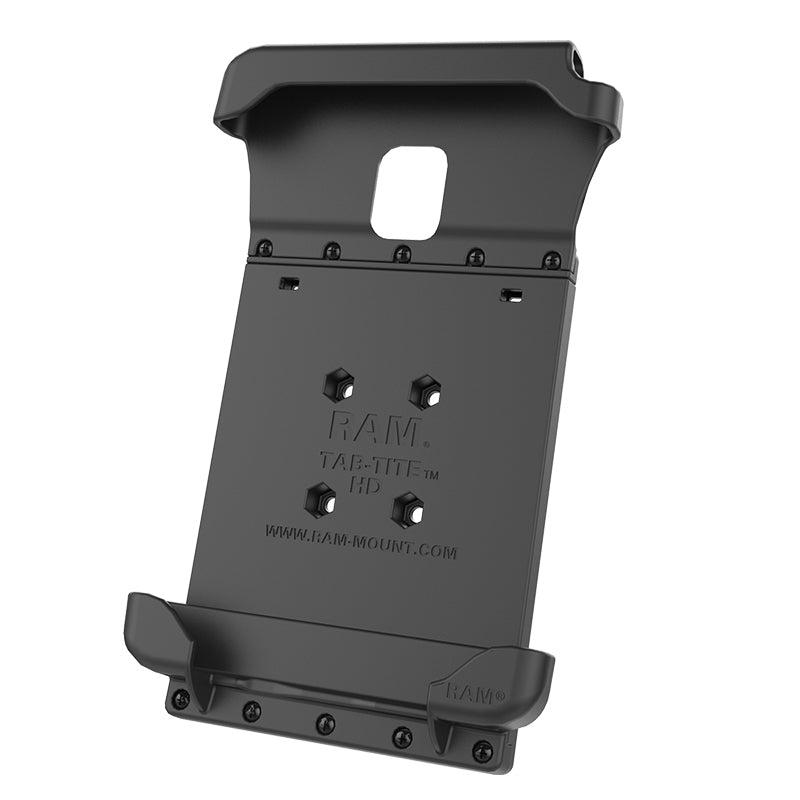

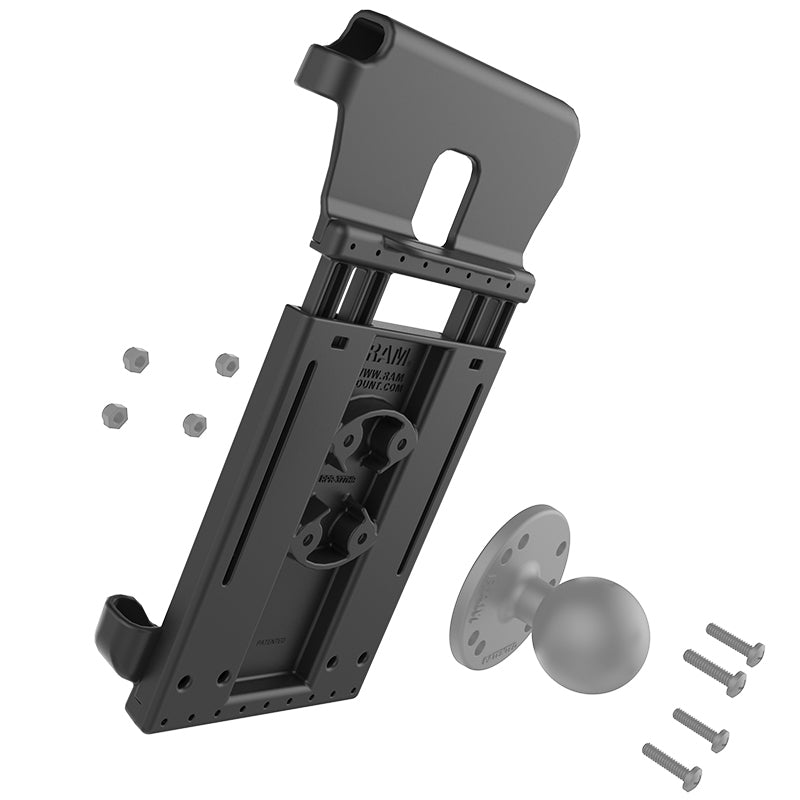

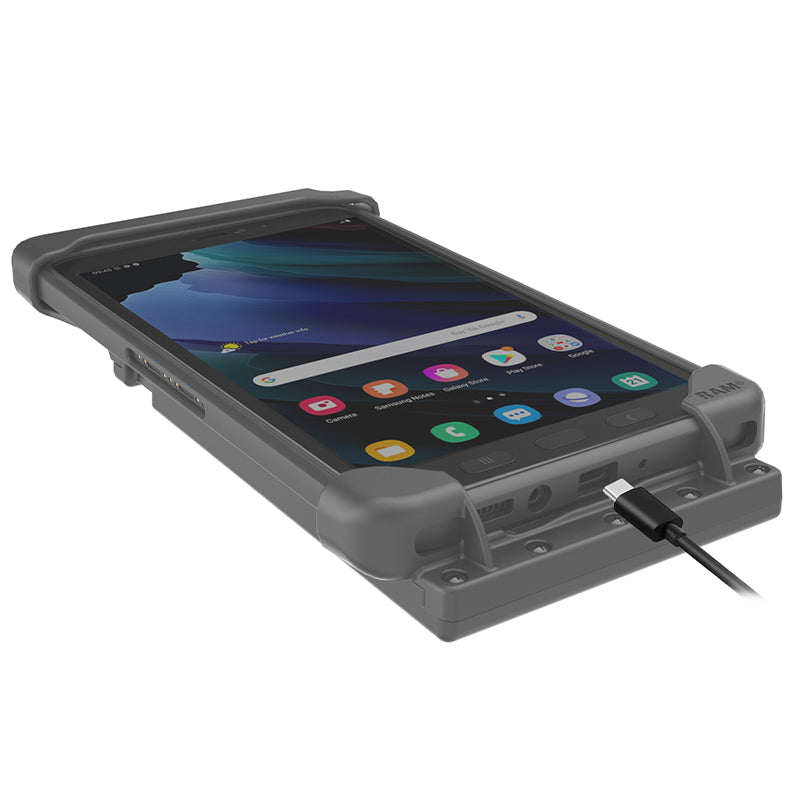

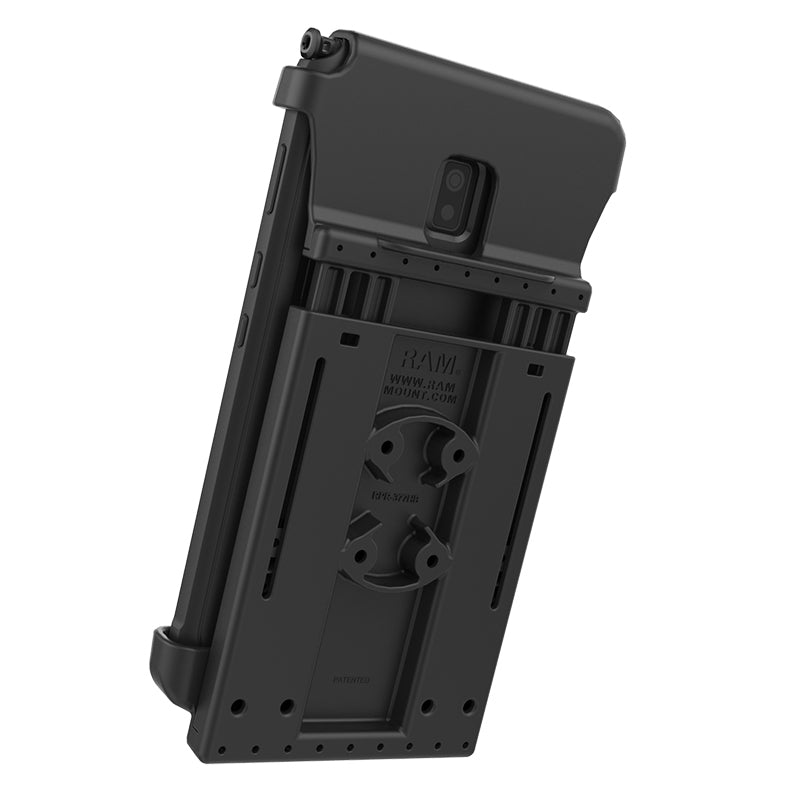

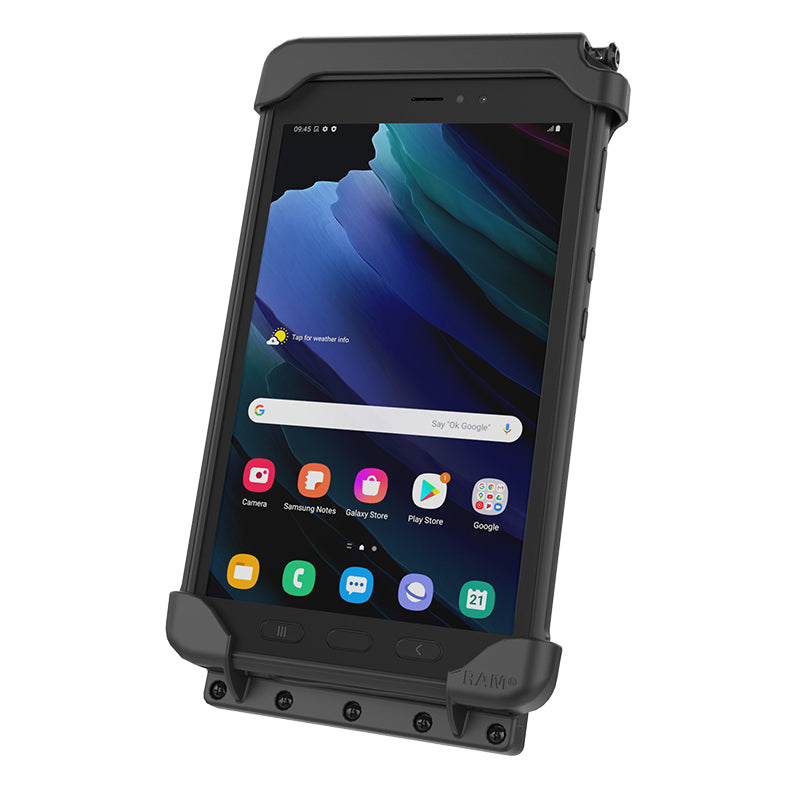

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 with either the OEM case or the RAM® Skin™. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. The bottom cup intentionally exposes the power connector so if the user has a Tab Active5 & 3 with no battery, the tablet can be inserted and removed without disconnecting the cable. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern.

Features

  • Spring-loaded holder secures the Samsung Tab Active5, Tab Active3 or 2
  • Access to the charge port allows for use of the Tab Active3's battery bypass feature when no battery installed
  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Product Dimensions

Overall Height: 7 7/8"
Overall Width: 5 1/2"
Overall Thickness: 1 5/8"

Holder Dimensions

Height Range: 8.5" - 10.375"
Max Width: 5.23"
Max Depth: 0.6"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.59 lb
