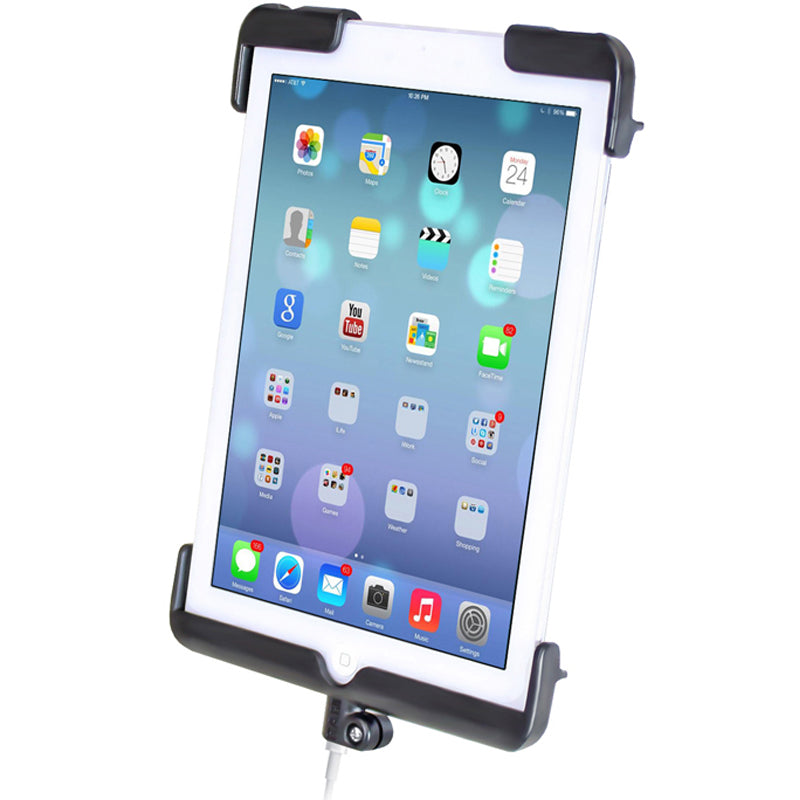

RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 1

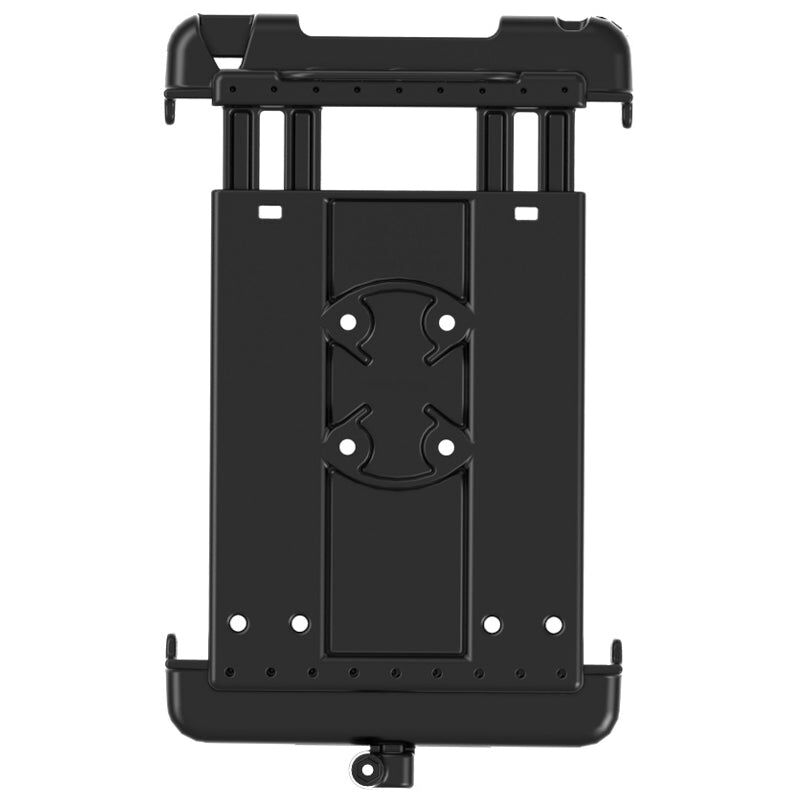

RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 2
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 3
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 4
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 5
RAM Tab-Tite Tablet Holder for iPad mini 1-3
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 2
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 3
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 4
RAM Tab-Tite Tablet Holder for iPad mini 1-3 - Image 5

RAM Tab-Tite Tablet Holder for iPad mini 1-3

RAM Mounts

$69.00

Out of stock

Available on backorder

Device holder: tablets 129–135 mm wide.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-HOL-TAB11U Category
Overview

Overview

The RAM-HOL-TAB11U consists of a spring loaded back plate, custom support cups and docking connector for the iPad mini without case, skin or sleeve. The docking connector enables the use of the factory iPad cables with docking connector for charging as well as other functions. Also works with most aftermarket cables and or modules with docking connectors. With the vast variety of available cable/docking connector accessories for the iPad you can quickly dock your iPad for charging, line out audio, external GPS antenna and much more. This spring loaded design makes it easy to load and unload your iPad, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

  • Support cups contain open slots to accommodate for tablets of various sizes
  • High strength materials maximize longevity of cradle
  • Unique design enables the use of the factory iPad charging cable and docking connector
  • Quickly dock and undock your iPad without requiring the insertion and removal of the charging cable
  • Spring loaded tension provides secure support and quick release for your tablet

Specs

Hardware Included

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
(1) #4-40 x 3/8" Machine Screw
(1) #4-40 Nylock Nut

Holder Dimensions

Height Range: 6.8" - 10.55"
Width Range: 5.06" - 5.31"
Max Depth: .3"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.52 lb
