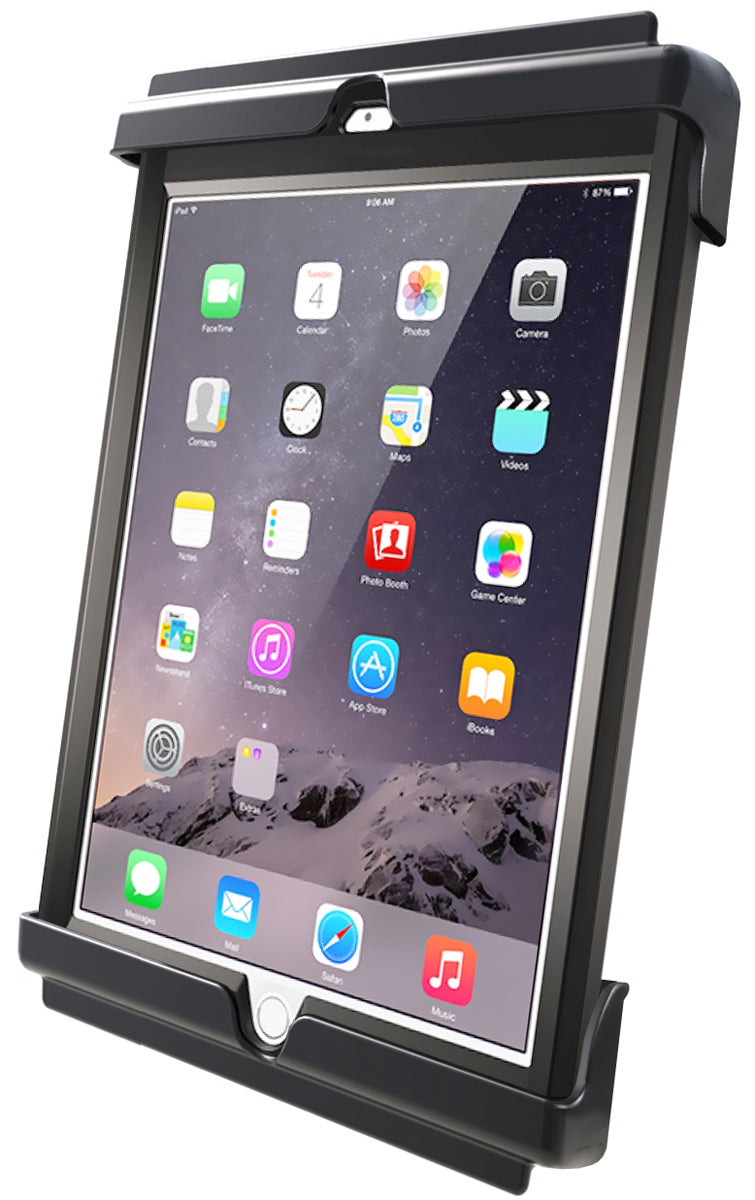

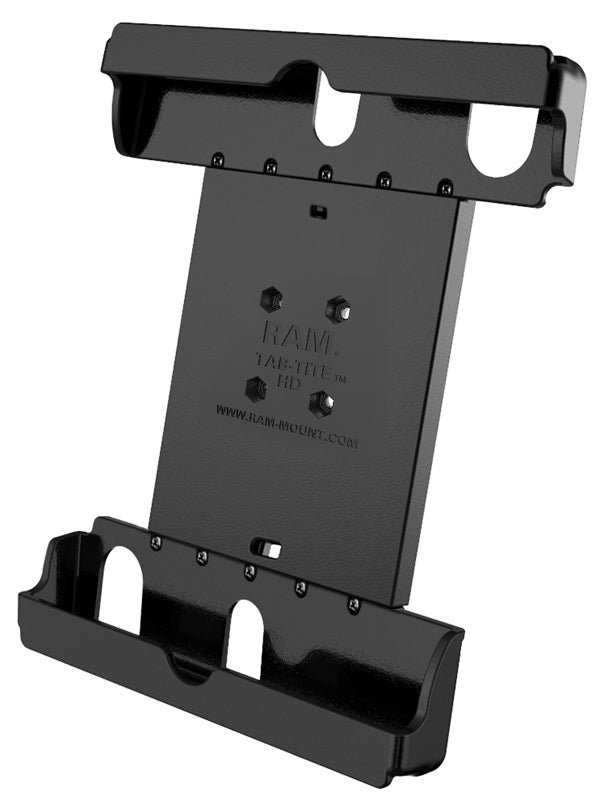

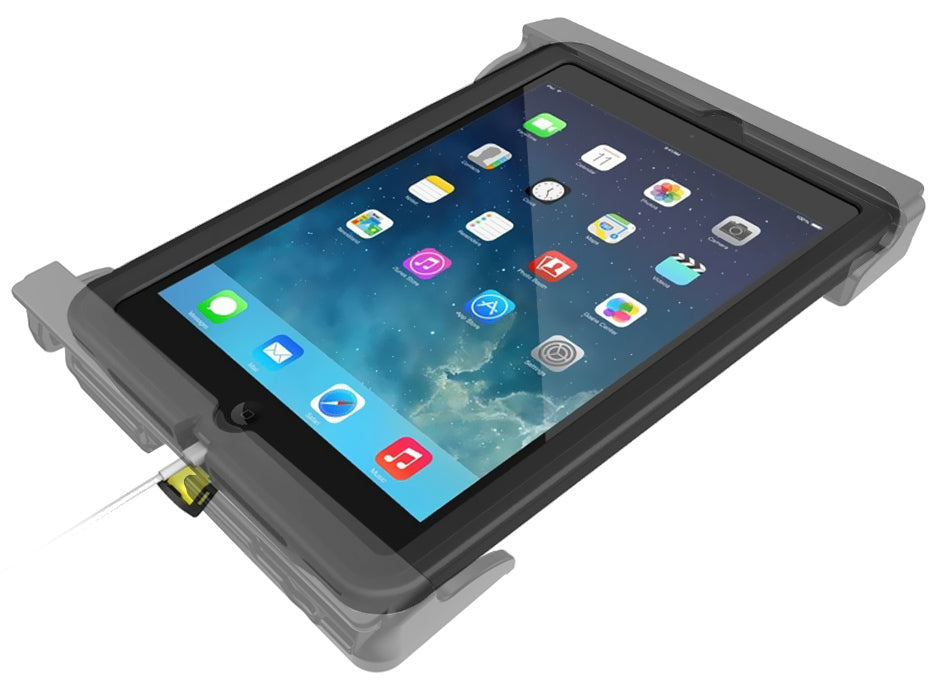

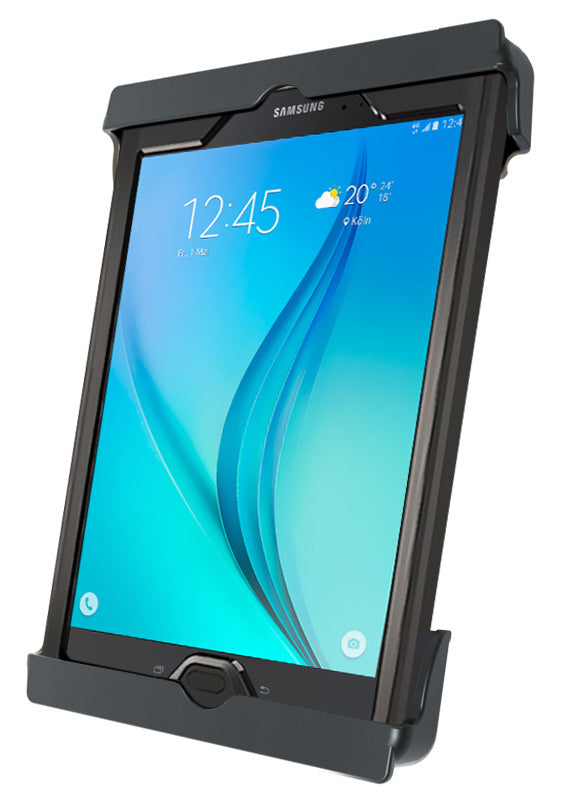

RAM Tab-Tite Holder for 9″-10.5″ Tablets with Heavy Duty Cases

$71.00

In stock

SKU RAM-HOL-TAB20U Category
Overview

FEATURES:

  • Spring-loaded holder secures most 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty



Please note: This cradle does not come with a ball and base. If you require one, please order RAM-B-202U by clicking HERE



OVERVIEW:

The RAM® Tab-Tite spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a vareity of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM® Tab-Tite holder is compatible with any tablet within the listed dimensions.

HARDWARE INCLUDED:

Assembly Hardware

  • (4) #8-32 x 5/8" Machine Screws
  • (4) #8-32 x 1/2" Machine Screws
  • (4) #8-32 Nylock Nuts

HOLDER DIMENSIONS:

  • Height Range: 9.5" - 12.125"
  • Width Range: 6.55" - 7.43"
  • Depth Range: .3" - .875"

HOLE PATTERN:

4-Hole AMPS: 1.181" x 1.496"

MATERIALS:

High strength composite



Compatibility:



Apple
  • iPad (5th Generation) with Case
  • iPad (6th Generation) with Case
  • iPad (7th Generation) with Case
  • iPad (8th Generation) with Case
  • iPad 9.7 (2017) with Case
  • iPad 9.7 (2018) with Case
  • iPad Air with Case
  • iPad Air 2 with Case
  • iPad Pro 10.5 (2nd Generation) with Case
ASUS
  • ZenPad 10 with Case
  • ZenPad 3S 10 with Case
  • ZenPad Z10 with Case
Huawei
  • MediaPad M2 10.0 with Case
Lenovo
  • Tab 2 A10-70 with Case
  • Tab 4 10 with Case
  • Tab 4 10 Plus with Case
  • Tab3 10 Business with Case
  • Yoga Tab 3 10 with Case
LG
  • G Pad 10.1 with Case
  • G Pad II 10.1 with Case
  • G Pad X 10.1 with Case
  • G Pad X II 10.1 with Case
Microsoft
  • Surface Go with Case
  • Surface Go 2 with Case
Samsung
  • Galaxy Tab 10.1 with Case
  • Galaxy Tab 3 10.1 with Case
  • Galaxy Tab 8.9 with Case
  • Galaxy Tab A 9.7 with Case
  • Galaxy Tab A 10.5 with Case
  • Galaxy Tab Pro 10.1 with Case
  • Galaxy Tab S2 9.7 with Case
  • Galaxy Tab S3 9.7 with Case
  • Galaxy Tab S4 10.5 with Case
  • Galaxy Tab S6 with Case
  • Galaxy Tab S7 with Case
Sony
  • Xperia Tablet Z with Case
Vankyo
  • MatrixPad Z4 10"
