RAM Tab-Tite Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case
$83.00
In stock
Device holder: tablets.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview

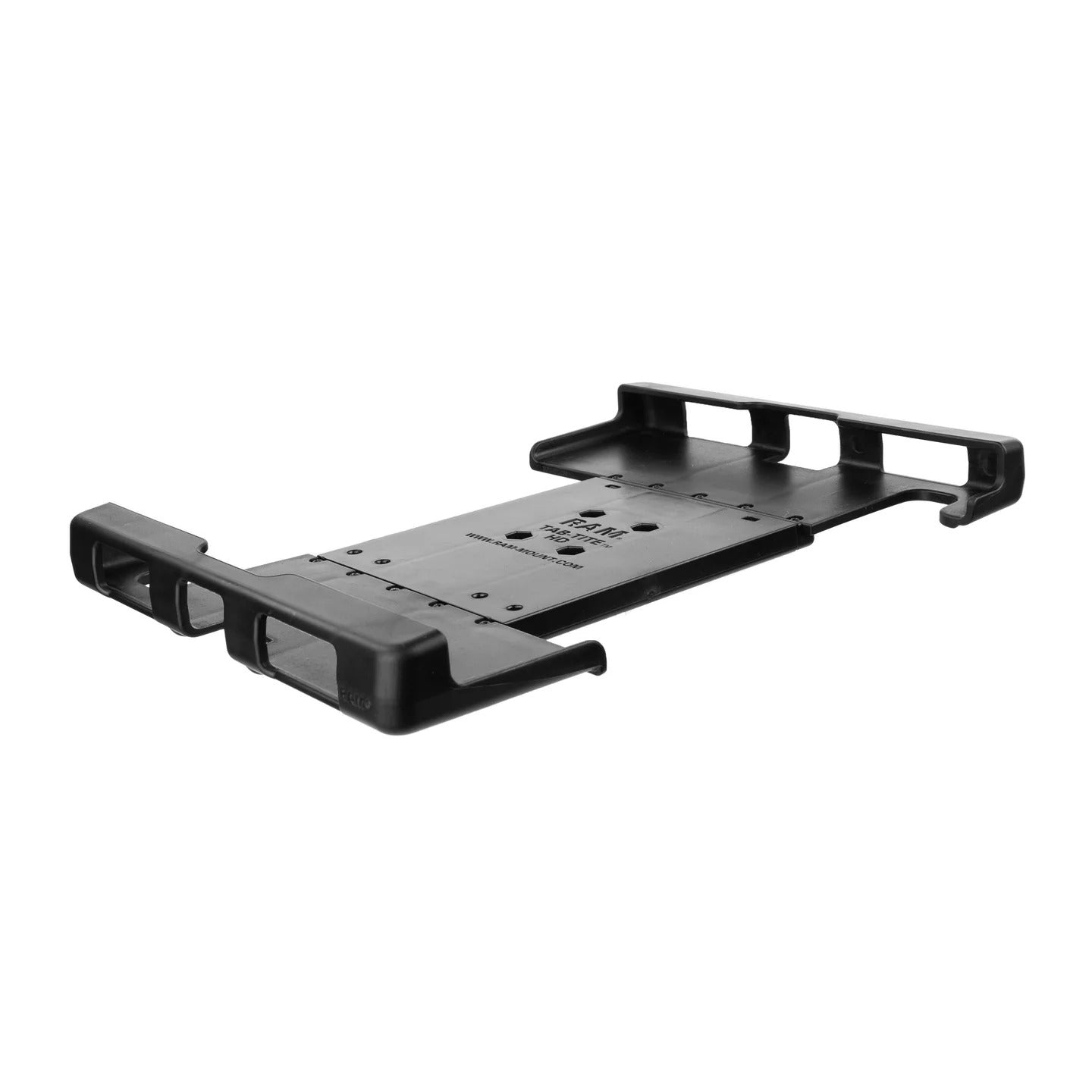

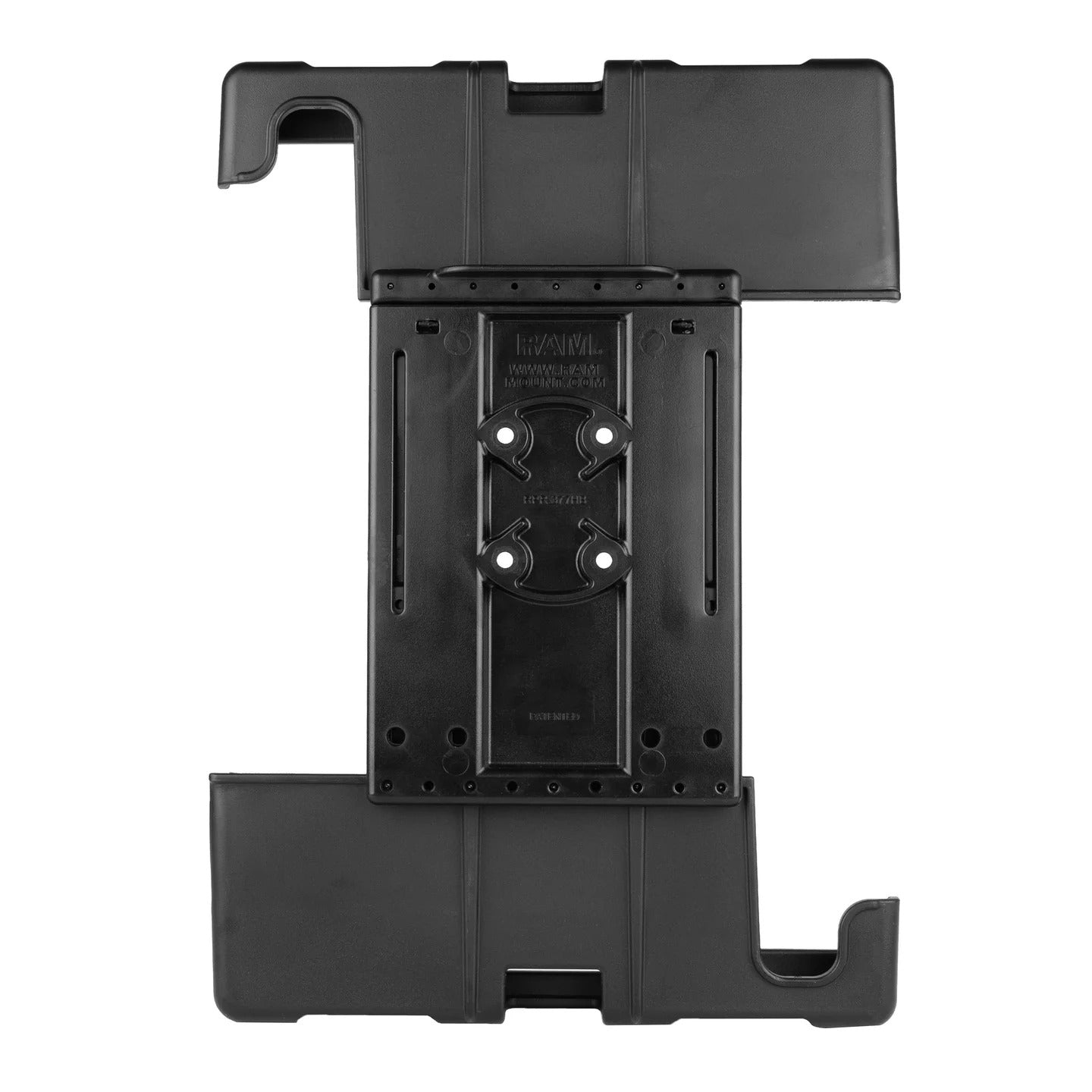

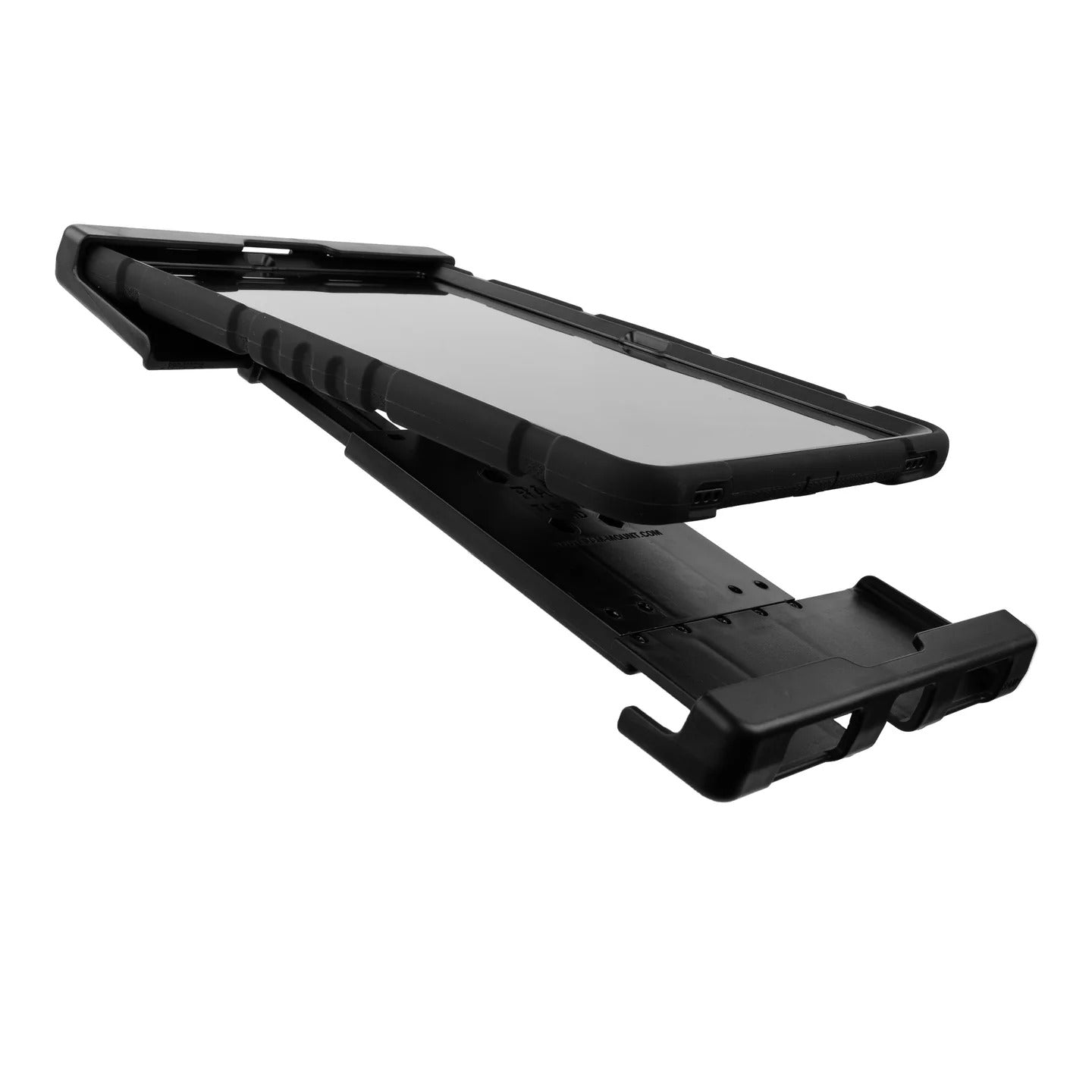

The RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case.
Features
- Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Holder Dimensions
Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Weight
0.74 lb
Additional Information
This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U.
If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
