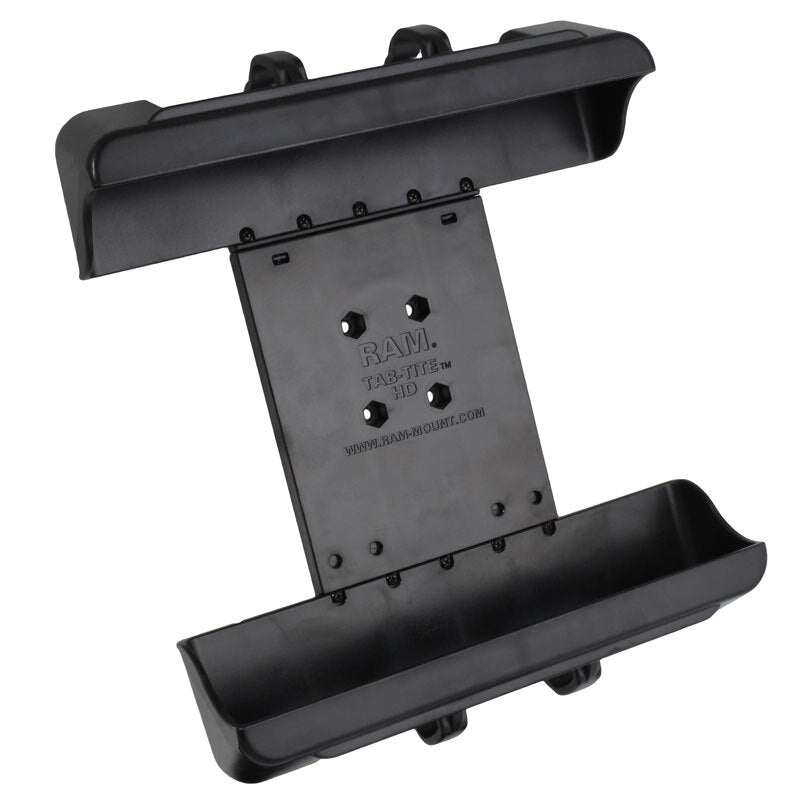

RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 1
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 2
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 3
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 4
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 2
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 3
RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case - Image 4

RAM Tab-Tite Tablet Holder for Panasonic Toughpad FZ-A1 with Case

RAM Mounts

$91.00

In stock

Device holder: tablets 162–235 mm wide.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-HOL-TAB9U Category
Overview

Overview

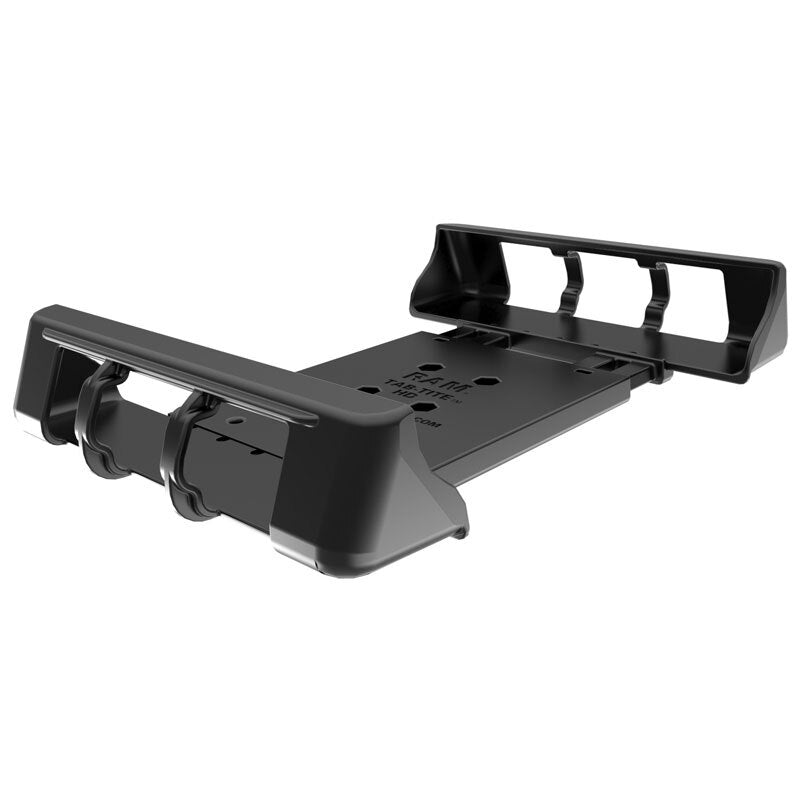

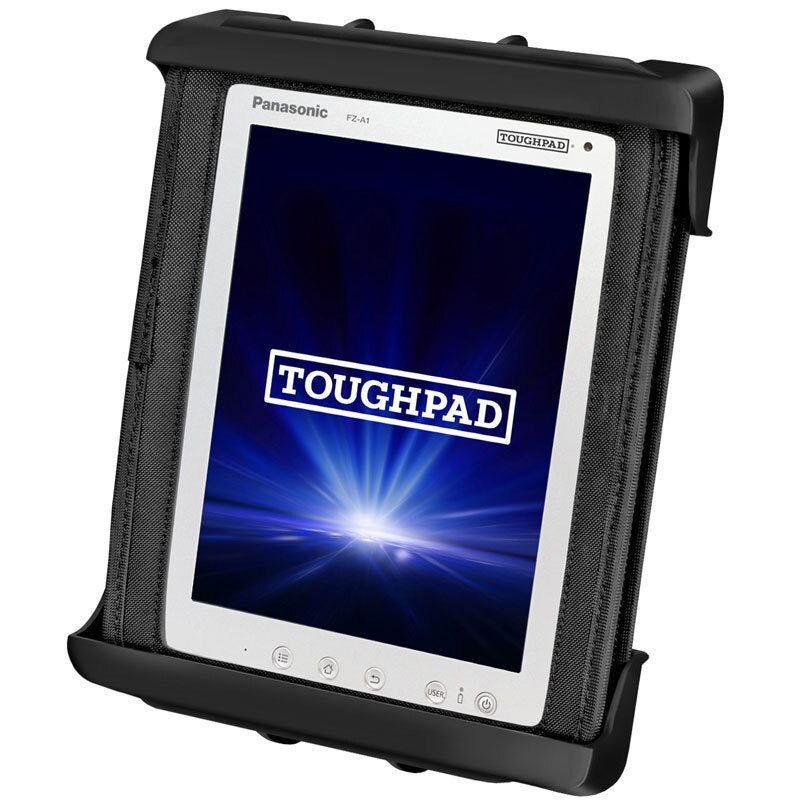

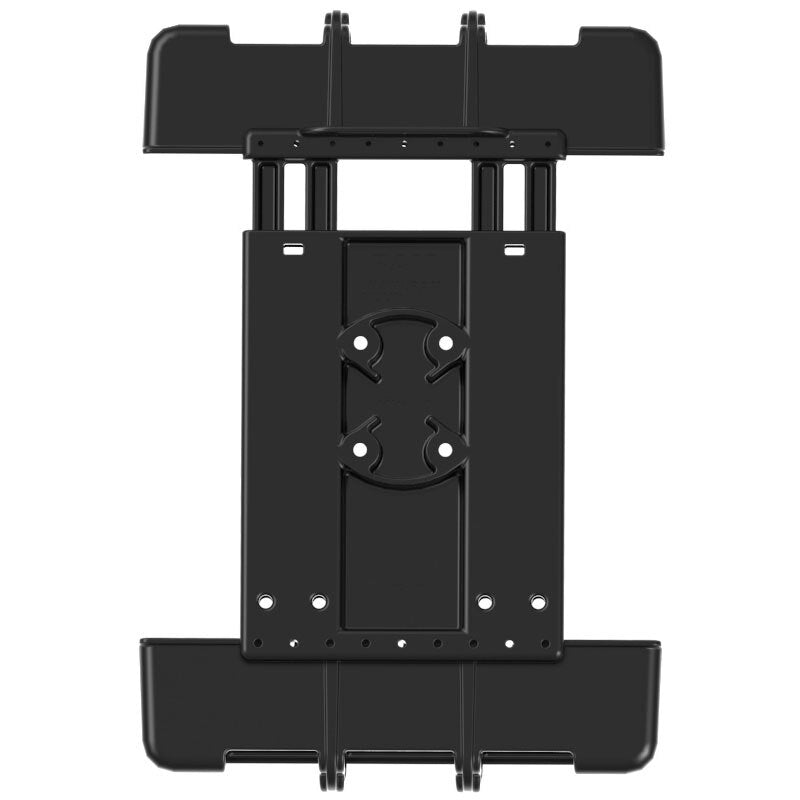

The spring loaded cradle for the Panasonic Toughpad™ FZ-A1 is durable and allows for easy removal or insertion of your tablet. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. With a full complement of compatible mounts, you are sure to find the perfect solution for all your mobile needs. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

Features

  • Spring-loaded holder secures the Panasonic Toughpad™ FZ-A1 with case; interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Holder Dimensions

Height Range: 10.625" - 12.625"
Width Range: 6.38" - 9.25"
Depth Range: .13" - 2"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.9 lb
