RAM Tab-Lock Tablet Holder for iPad mini 1-3

RAM Tab-Lock Tablet Holder for iPad mini 1-3

OVERVIEW

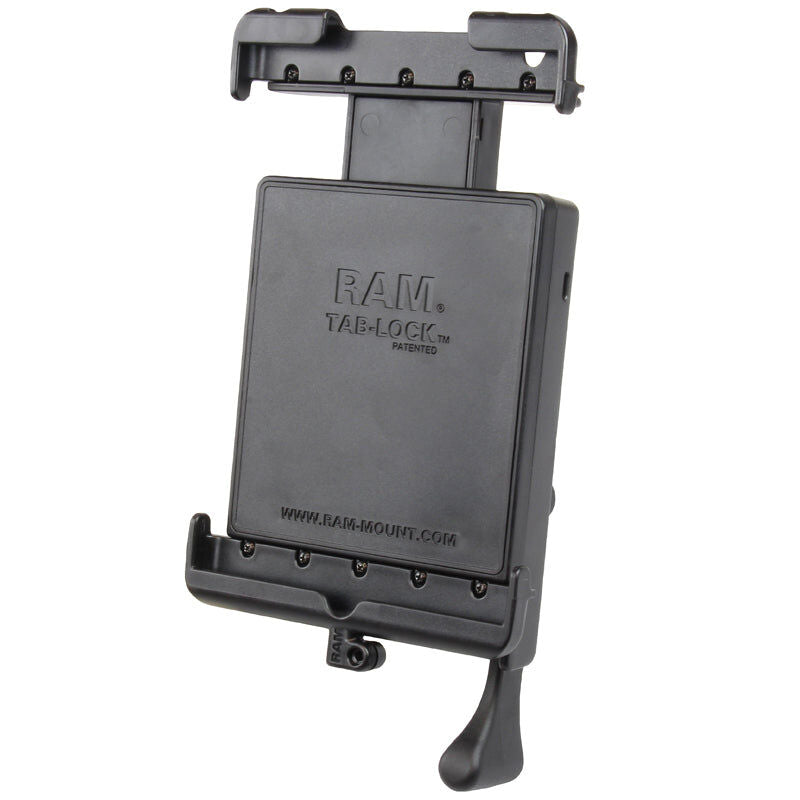

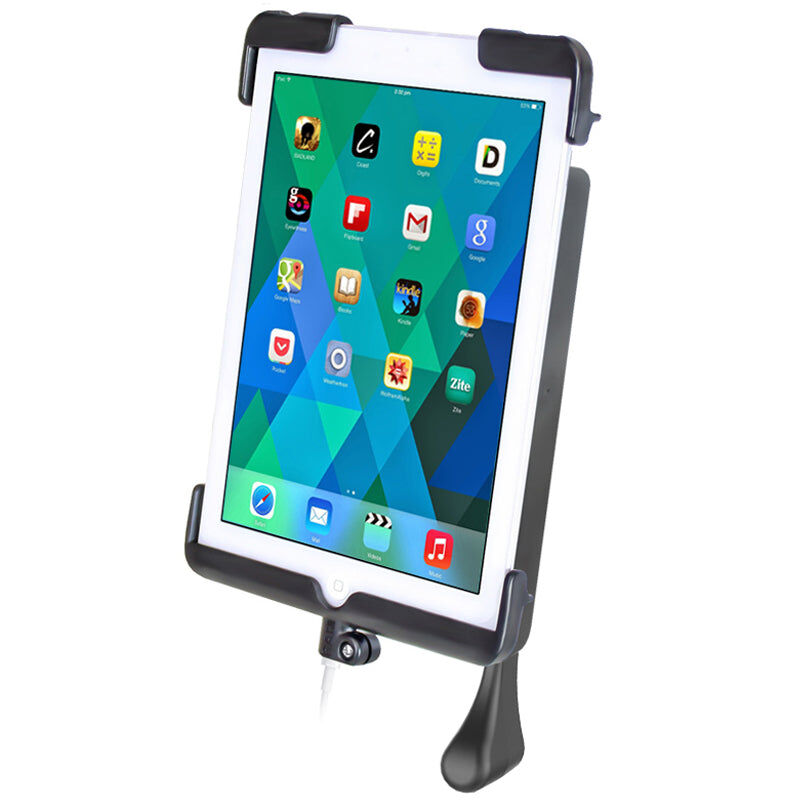

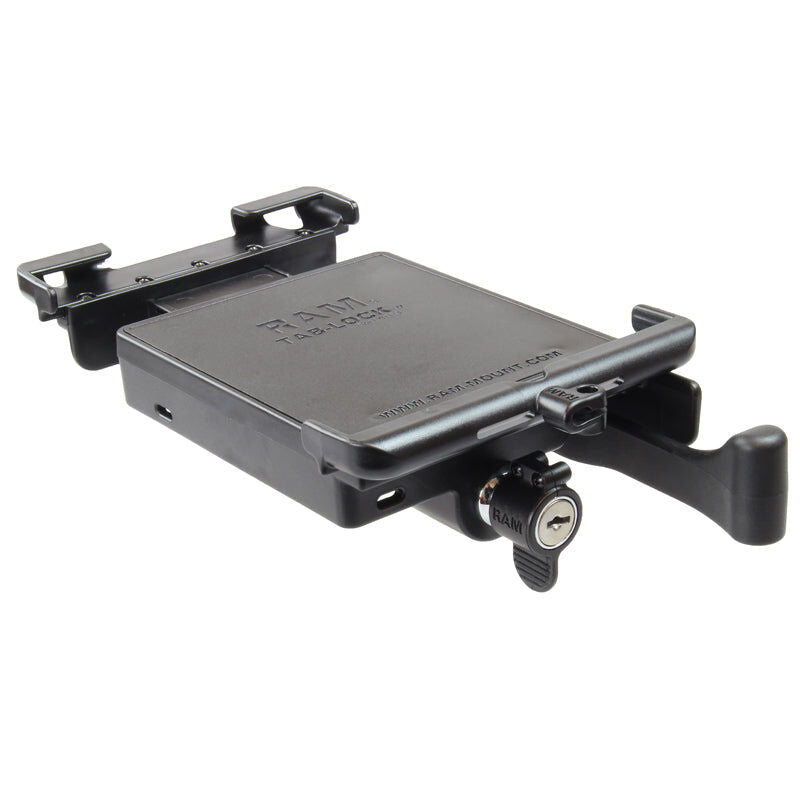

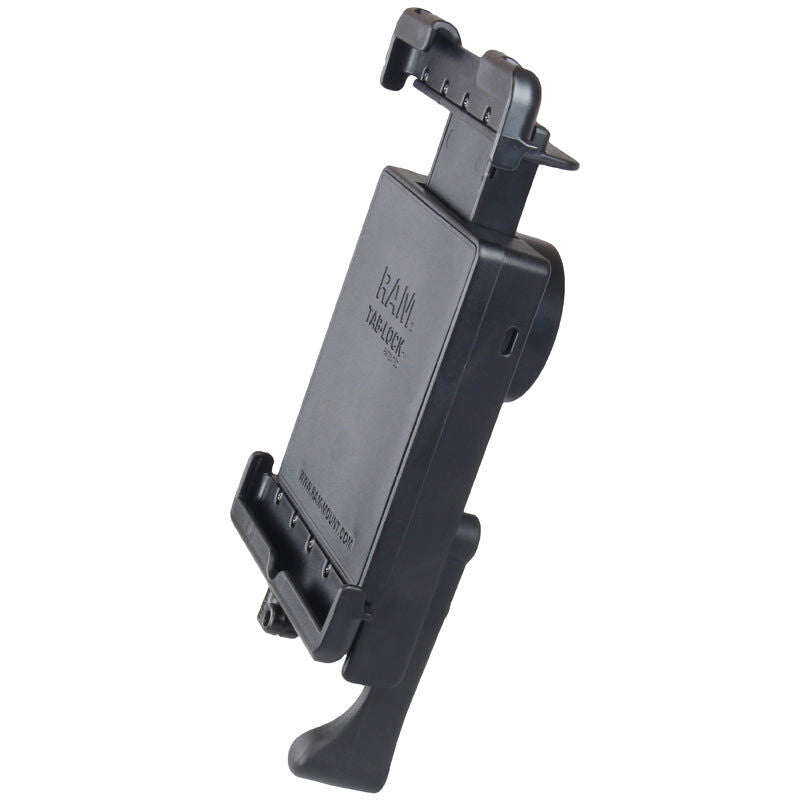

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

HARDWARE INCLUDED

Assembly Hardware(2) #8 x 5/8" Sheet Metal Screws(2) M4 x 32mm Machine Screws(2) M4 Nylock Nuts(2) Keys(1) #4-40 x 3/8" Machine Screw(1) #4-40 Nylock Nut

HOLDER DIMENSIONS

Height Range: 6.8" - 10.55"Width Range: 5.06" - 5.31"Max Depth: .3"

HOLE PATTERN

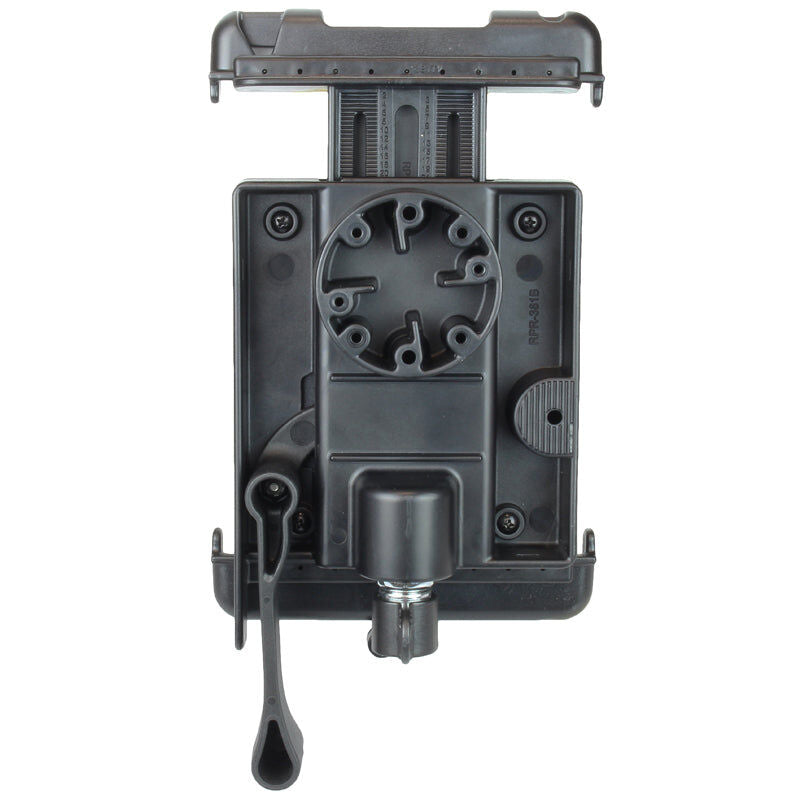

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.22 lb
