GDS Combo Locking Powered Dock for Zebra ET5x 10.1″ Series

GDS Combo Locking Powered Dock for Zebra ET5x 10.1″ Series

OVERVIEW

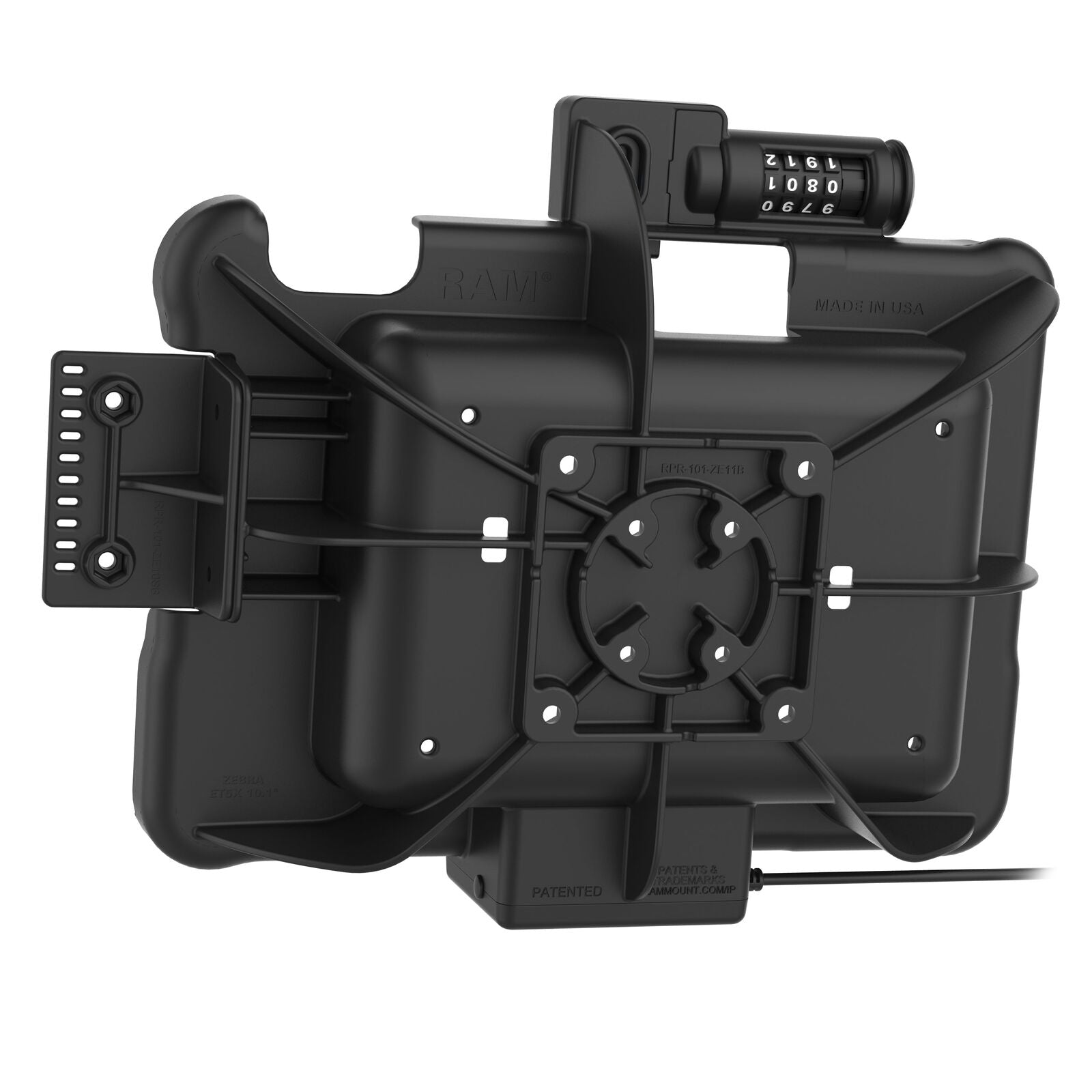

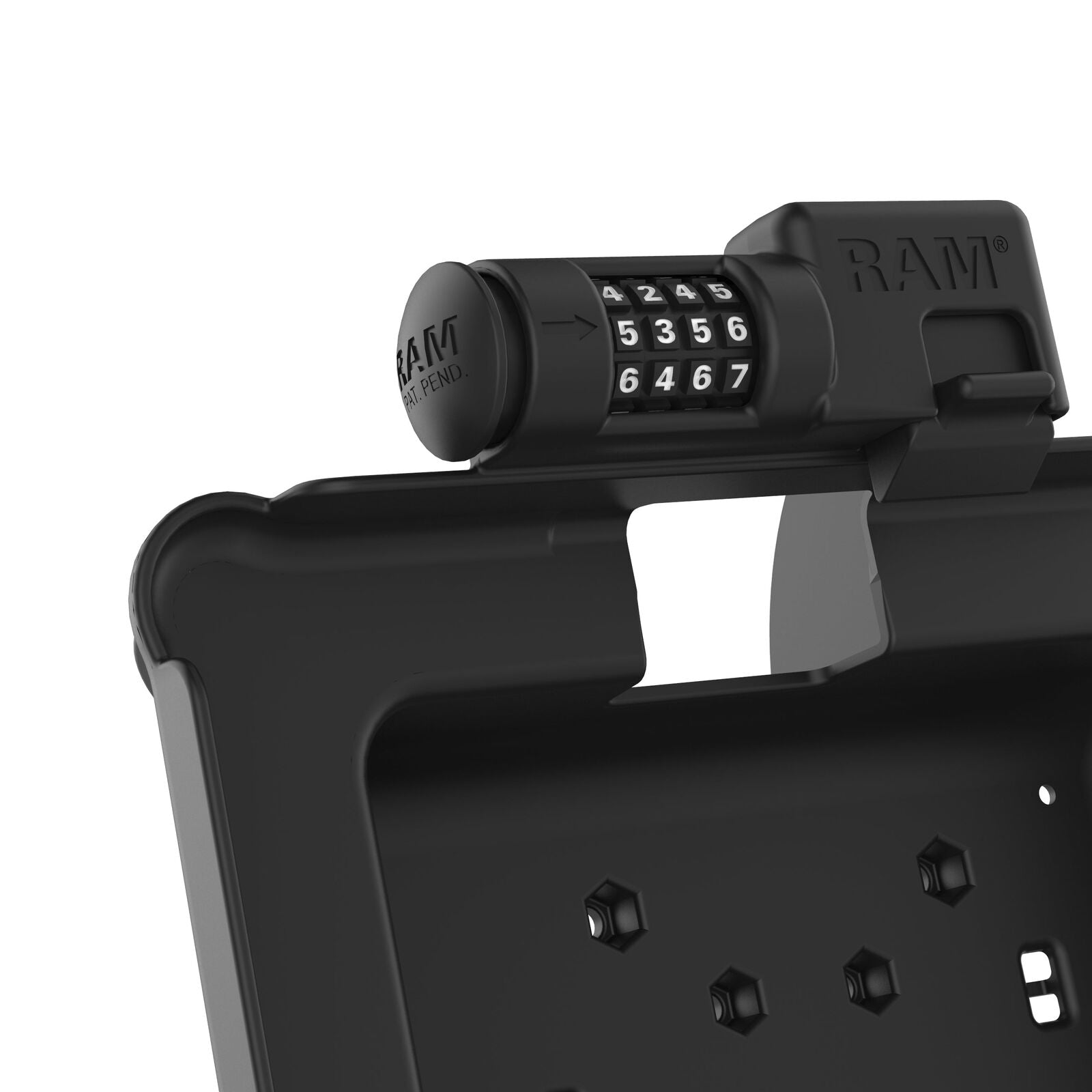

Featuring GDS® Technology™ for charging capabilities and a combination lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, rotating hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(1) Side bracket for accessory mounting and strain relief(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(4) #10-24 Nylock Nuts(4) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

WARRANTY

3 year warranty

WEIGHT

1.9 lb

ADDITIONAL INFORMATION

This dock will support the rotating hand strap but is not compatible with the SG-ET5X-SFSTRAP1-01 hand strap.
