GDS Form-Fit Holder for Zebra XSLATE L10

GDS Form-Fit Holder for Zebra XSLATE L10

OVERVIEW

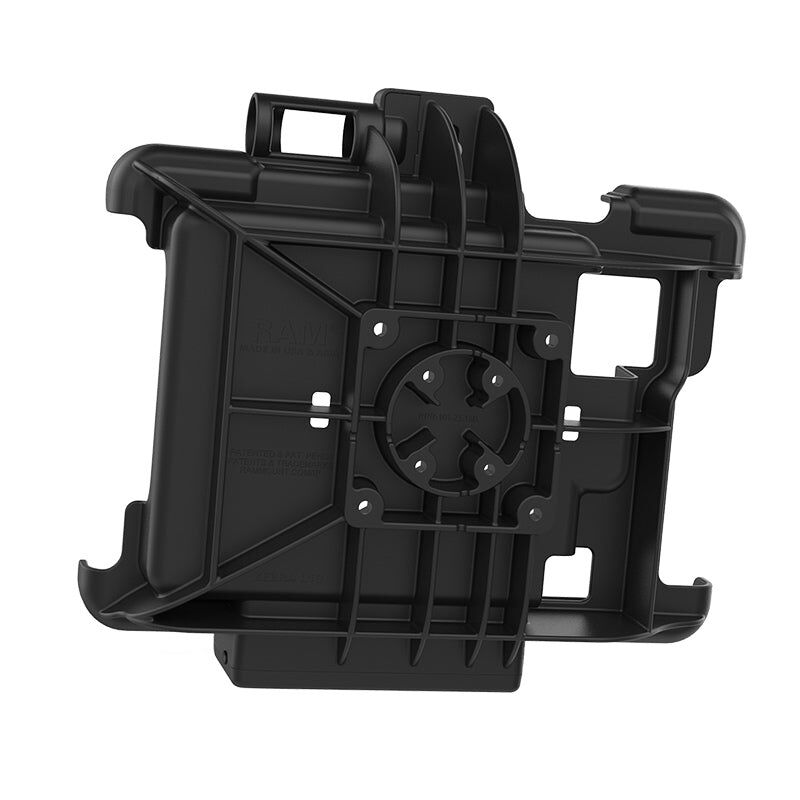

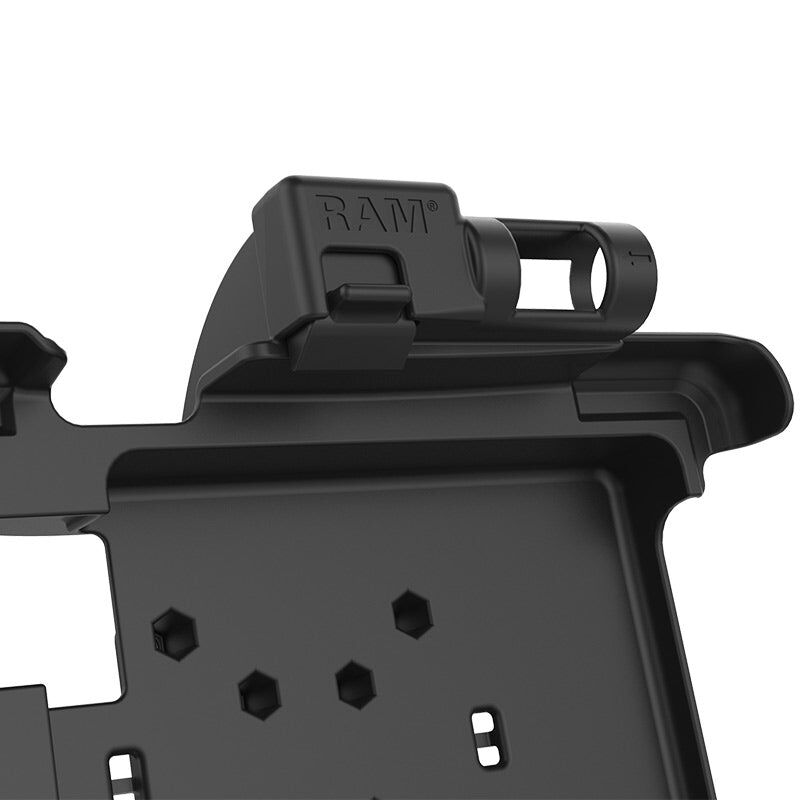

The GDS® Vehicle Dock features a form-fit design specifically for the Zebra XSLATE L10, including cutouts leaving all buttons and ports exposed. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

HARDWARE INCLUDED

(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(4) #10-24 Nylock Nuts

HOLE PATTERN

75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.75 lb
