RAM Form-Fit Powered Dock for Zebra EC50 & EC55

RAM Form-Fit Powered Dock for Zebra EC50 & EC55

OVERVIEW

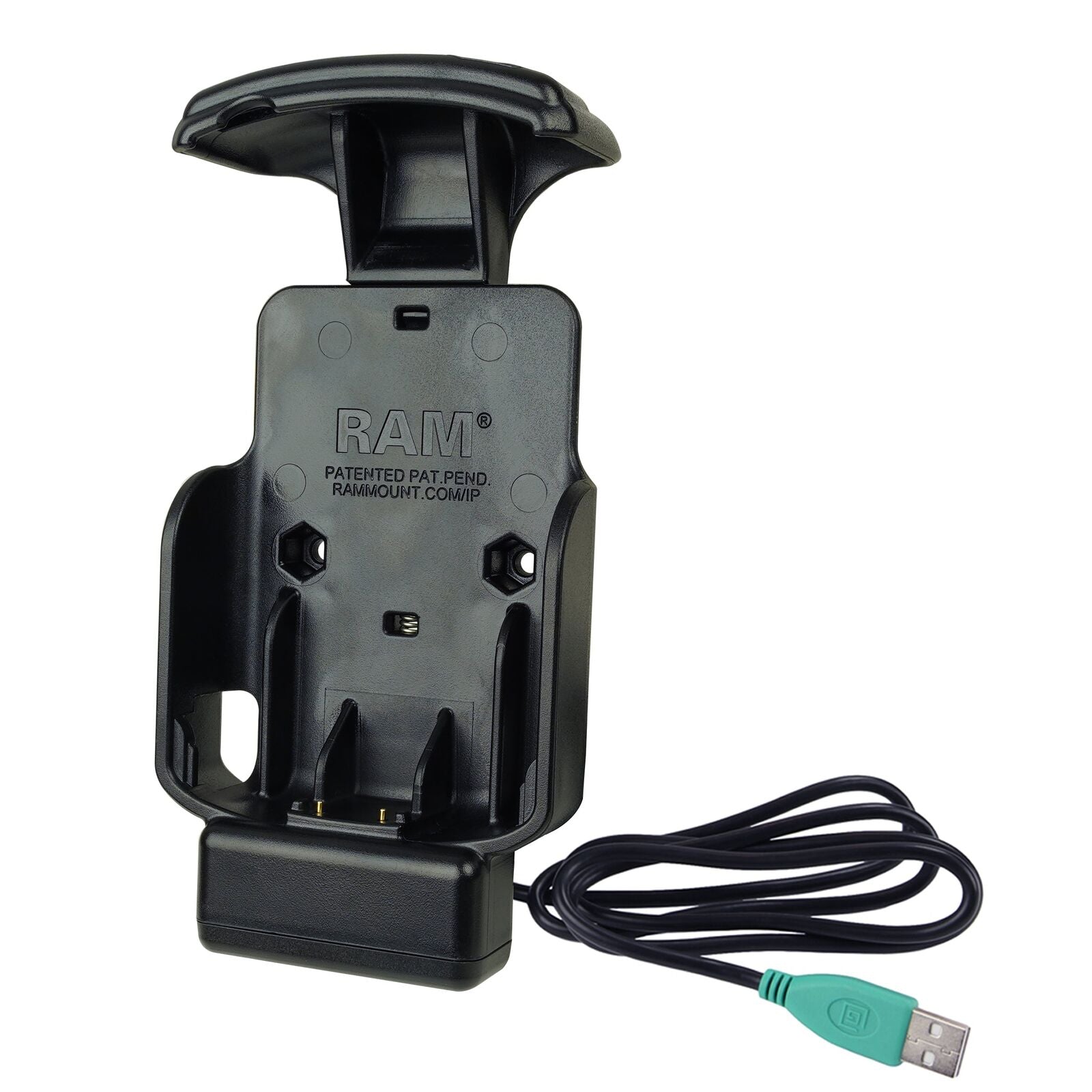

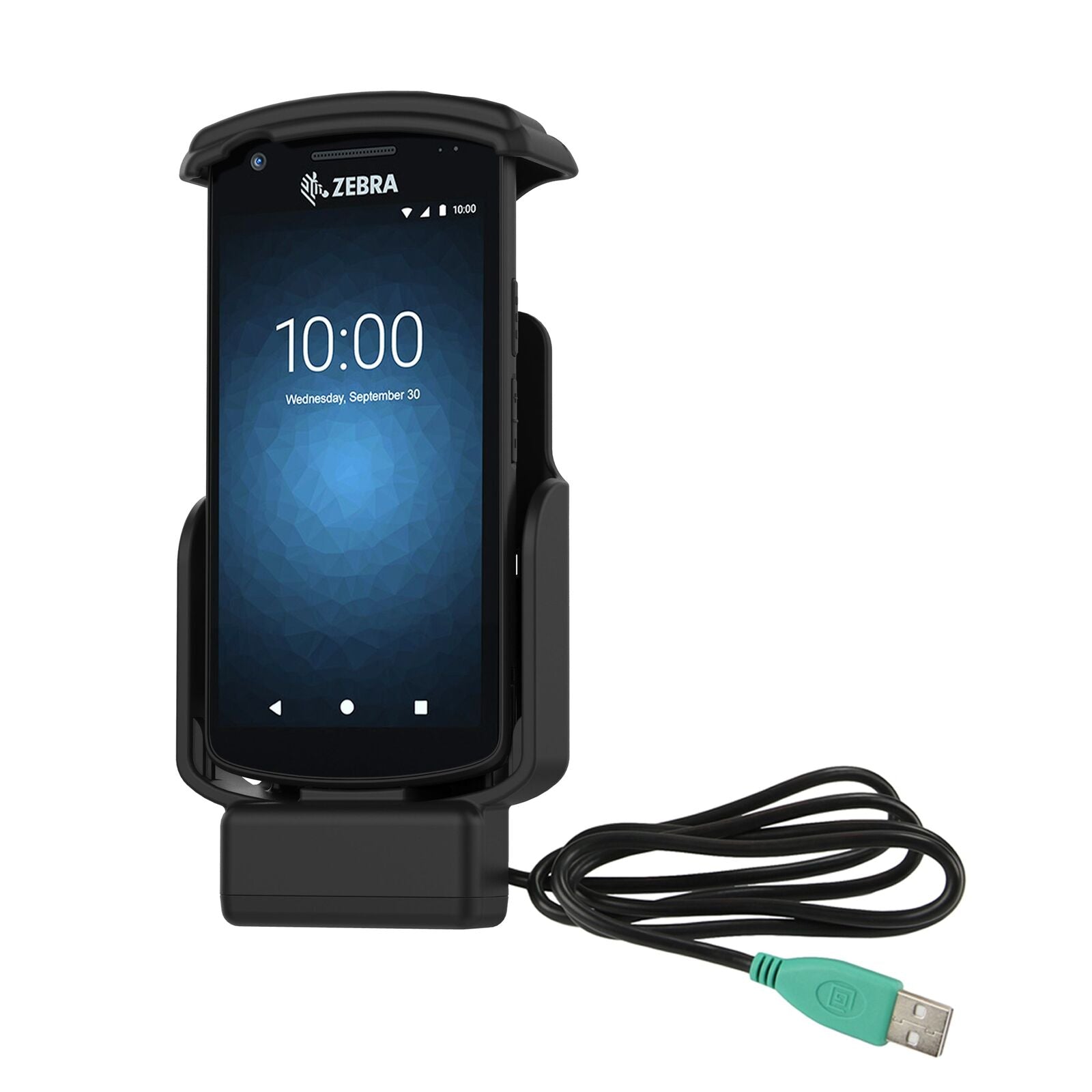

This spring loaded powered dock is designed specifically for the Zebra EC50 and EC55 enterprise mobile computers. The dock features two integrated pogo pins that provide charging capabilities to the device while docked and plugged into a power source via 1.2m long USB Type-A cable. While keeping the Zebra EC50/55 secure, the powered dock also leaves the device’s top scanner, buttons and camera exposed and usable. Available space in the back accommodates standard and extended battery packs as well as the OEM hand strap. For mounting, pair the dock with a B size RAM® diamond ball base and B size mounting components.

HARDWARE INCLUDED

(2) #8-32 x 5/8" Machine Screws(2) #8-32 Nylock Nuts

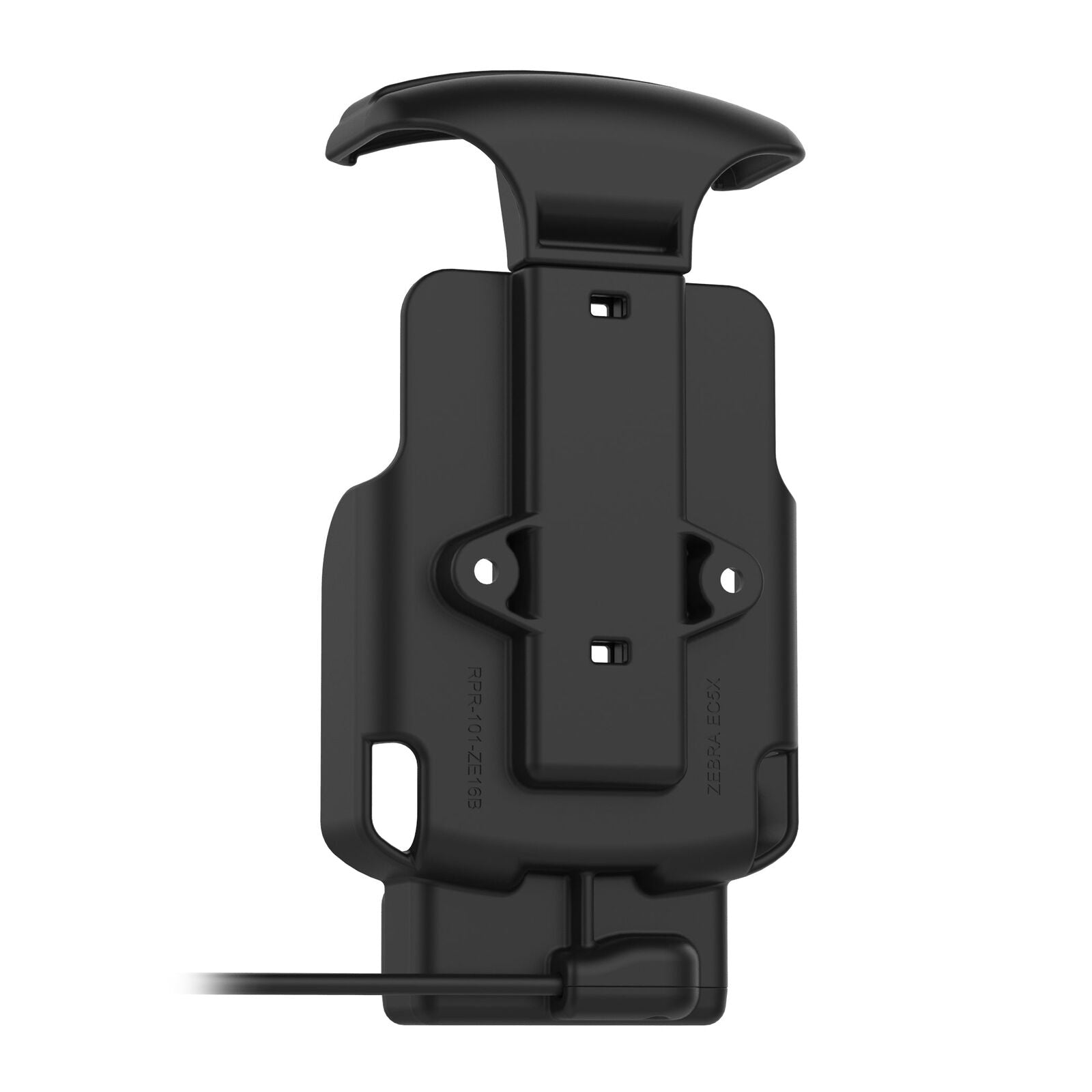

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

USB Type A

INPUT CABLE LENGTH

1.25 Meters

WEIGHT

0.45 lb
