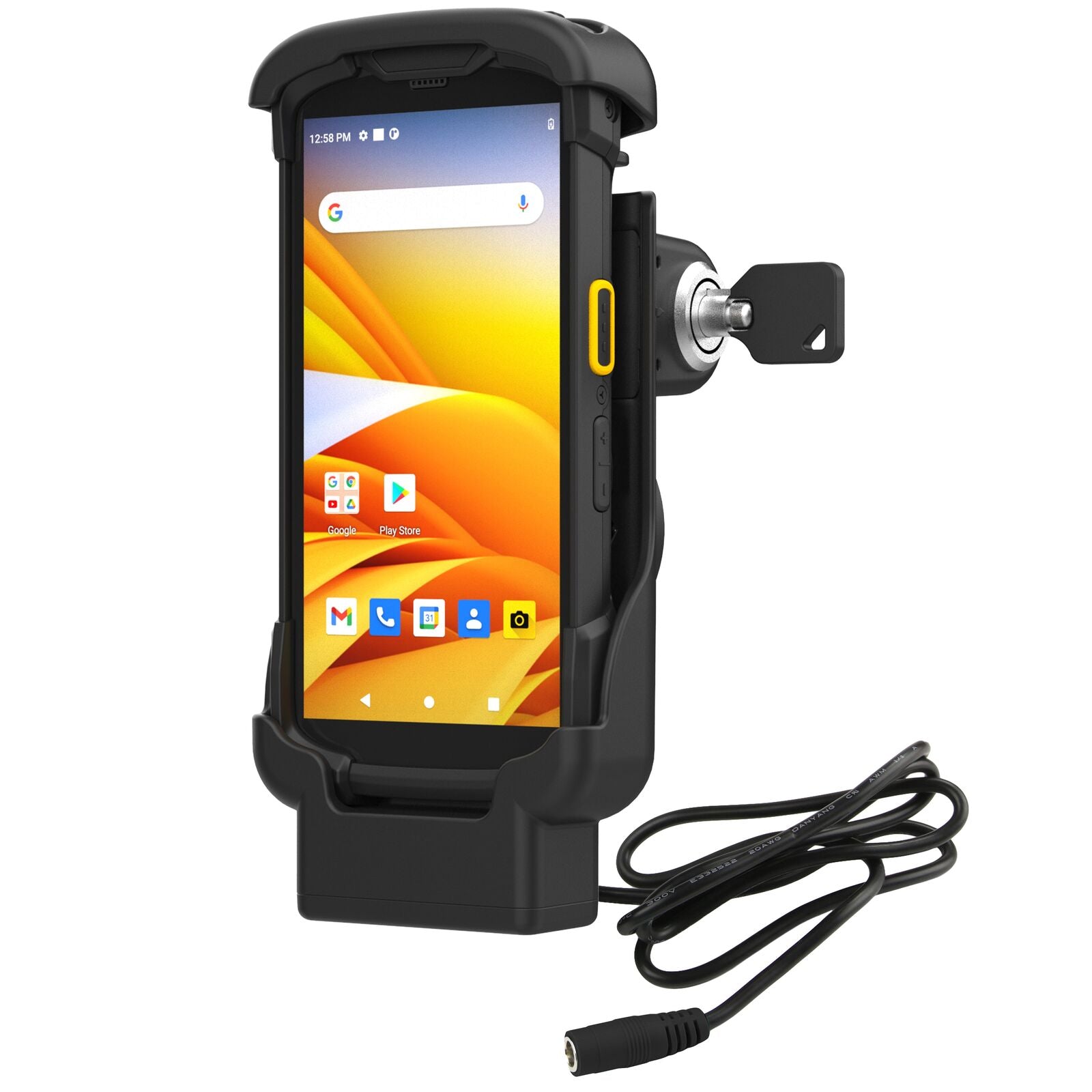

RAM Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78

RAM Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78

OVERVIEW

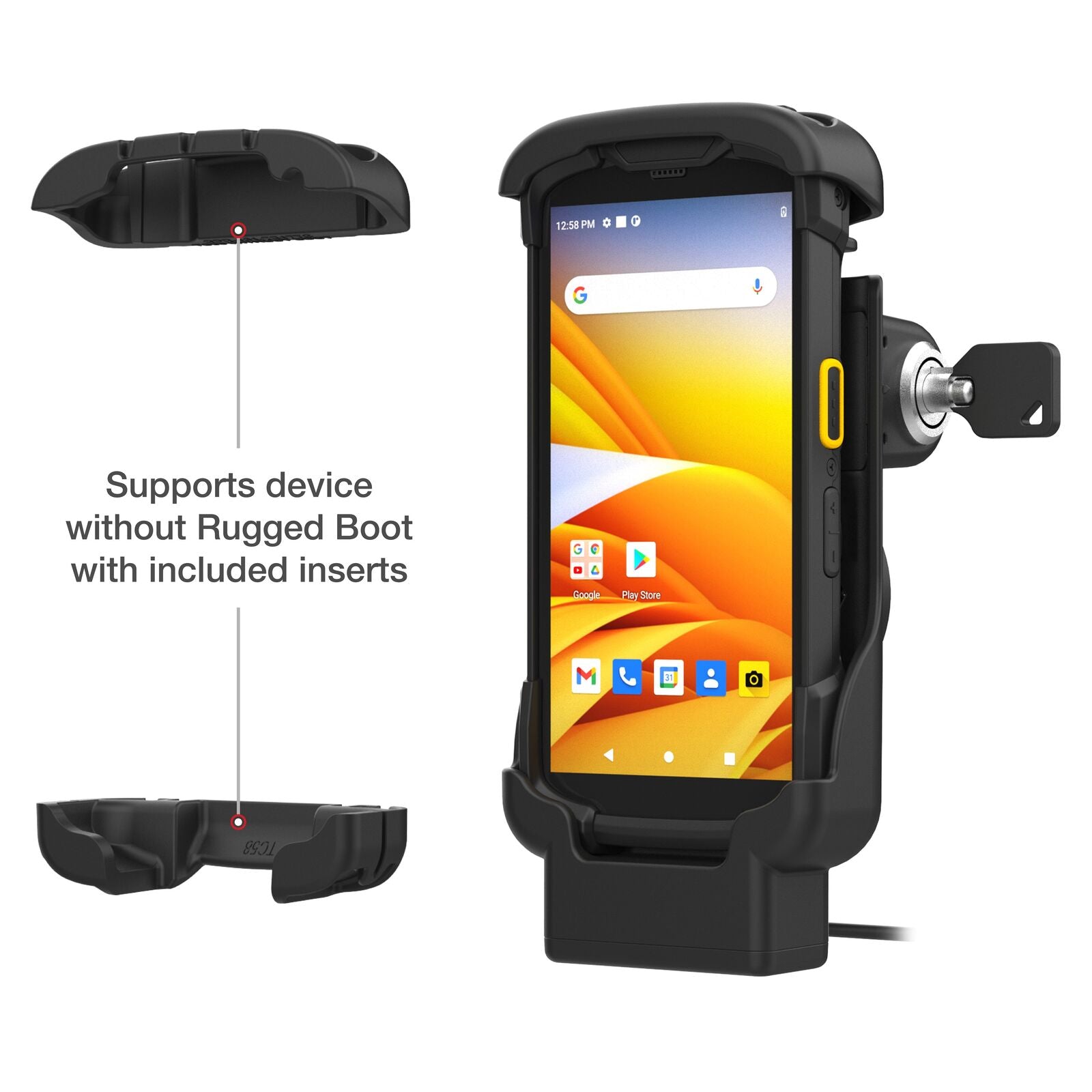

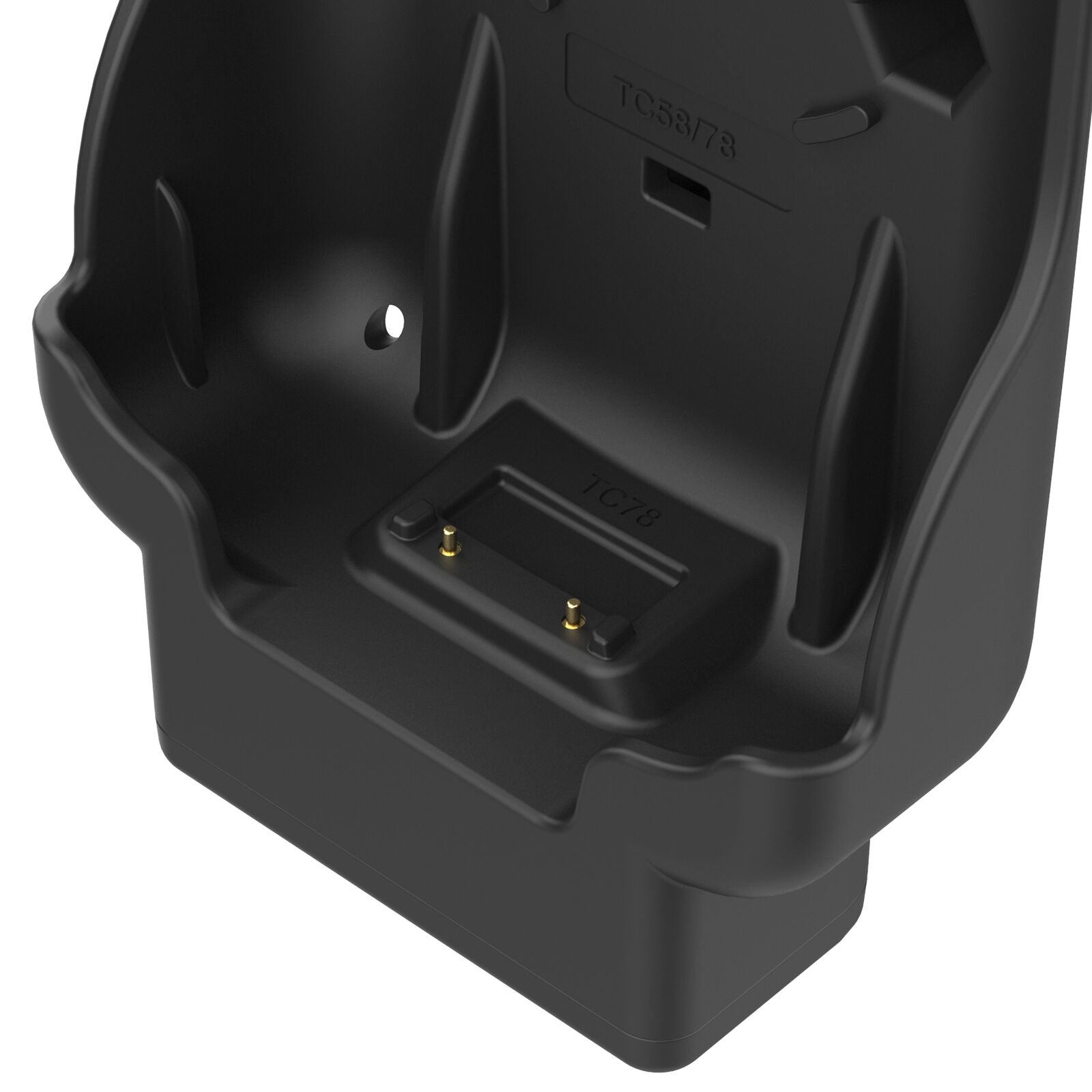

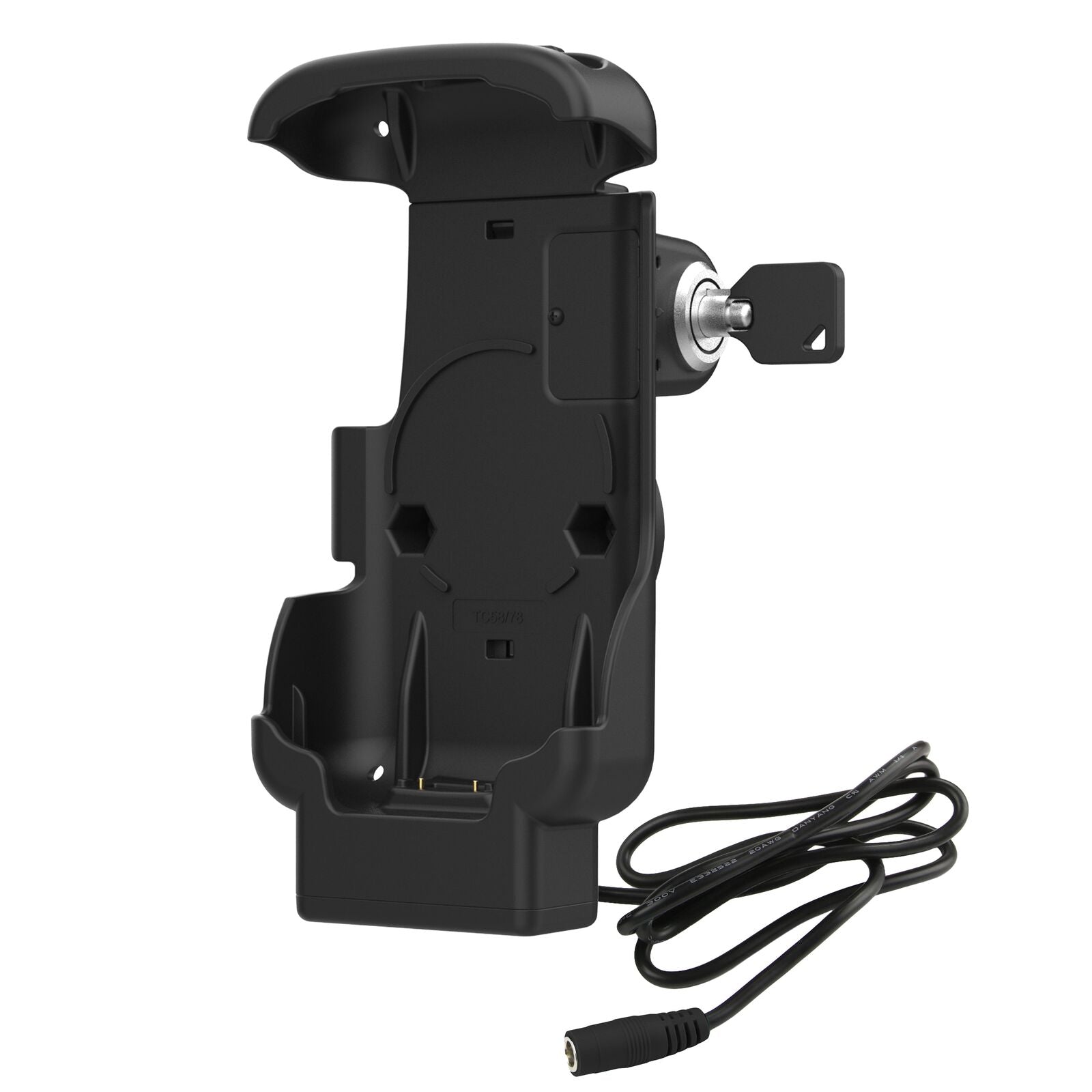

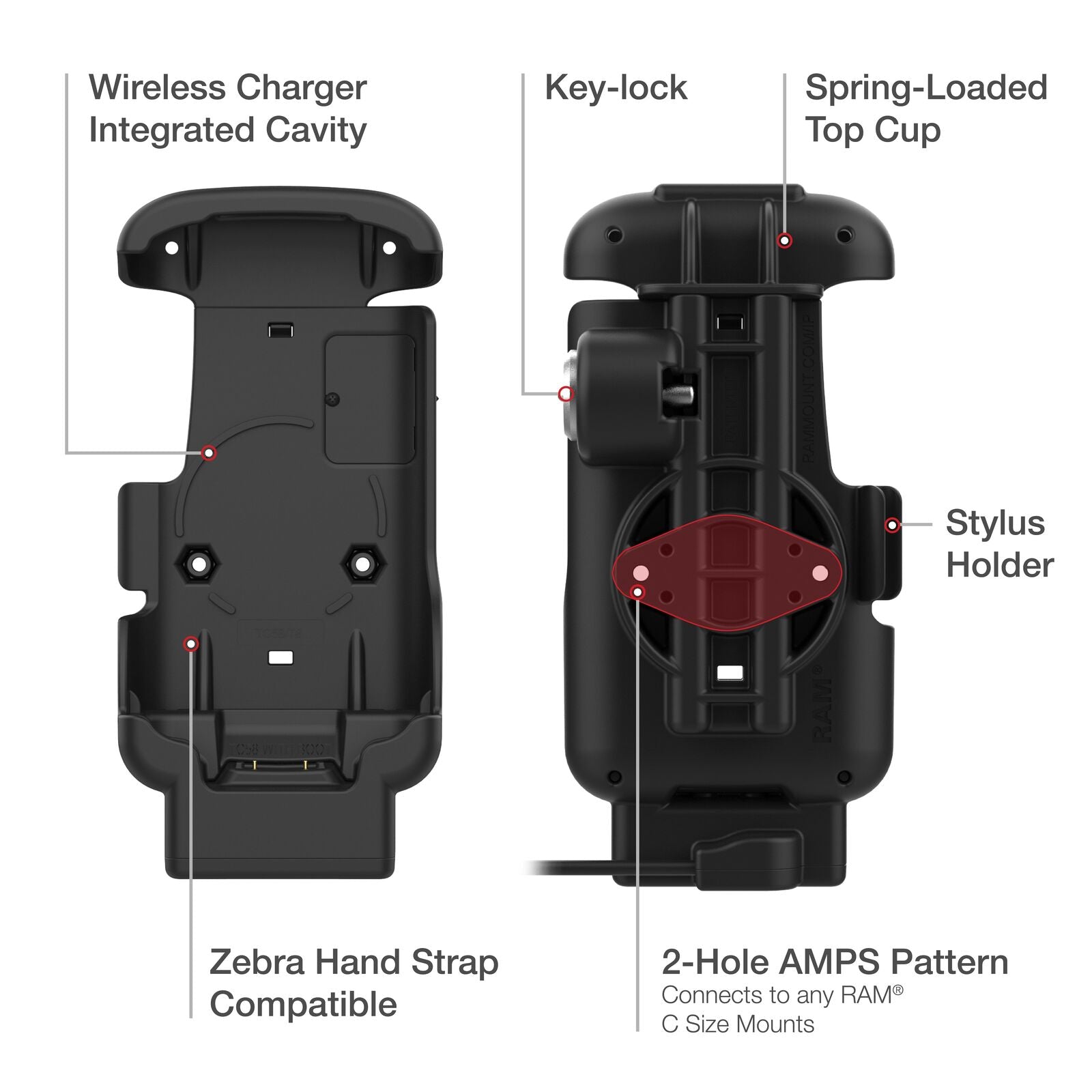

This key-locking, spring-loaded, form-fit, powered dock (RAM-HOL-ZE17L-1U) allows you to secure the Zebra TC73 and the TC78 rugged handheld PC. Power to the device is delivered via a 1.2m long female 5.5mm DC barrel connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

HARDWARE INCLUDED

(2) Keys(2) #8-32 x 3/4" Machine Screws(2) #8-32 x 5/8" Machine Screws(2) #8-32 Nylock Nuts

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

INPUT CABLE LENGTH

1.25 Meters

WARRANTY

3 year warranty

WEIGHT

0.8 lb

ADDITIONAL INFORMATION

Chargers not included. See "Expand Your RAM®" tab to view compatible charging accessories.
