Locking RAM Tough-Dock for Zebra ET401 8″

Locking RAM Tough-Dock for Zebra ET401 8″

OVERVIEW

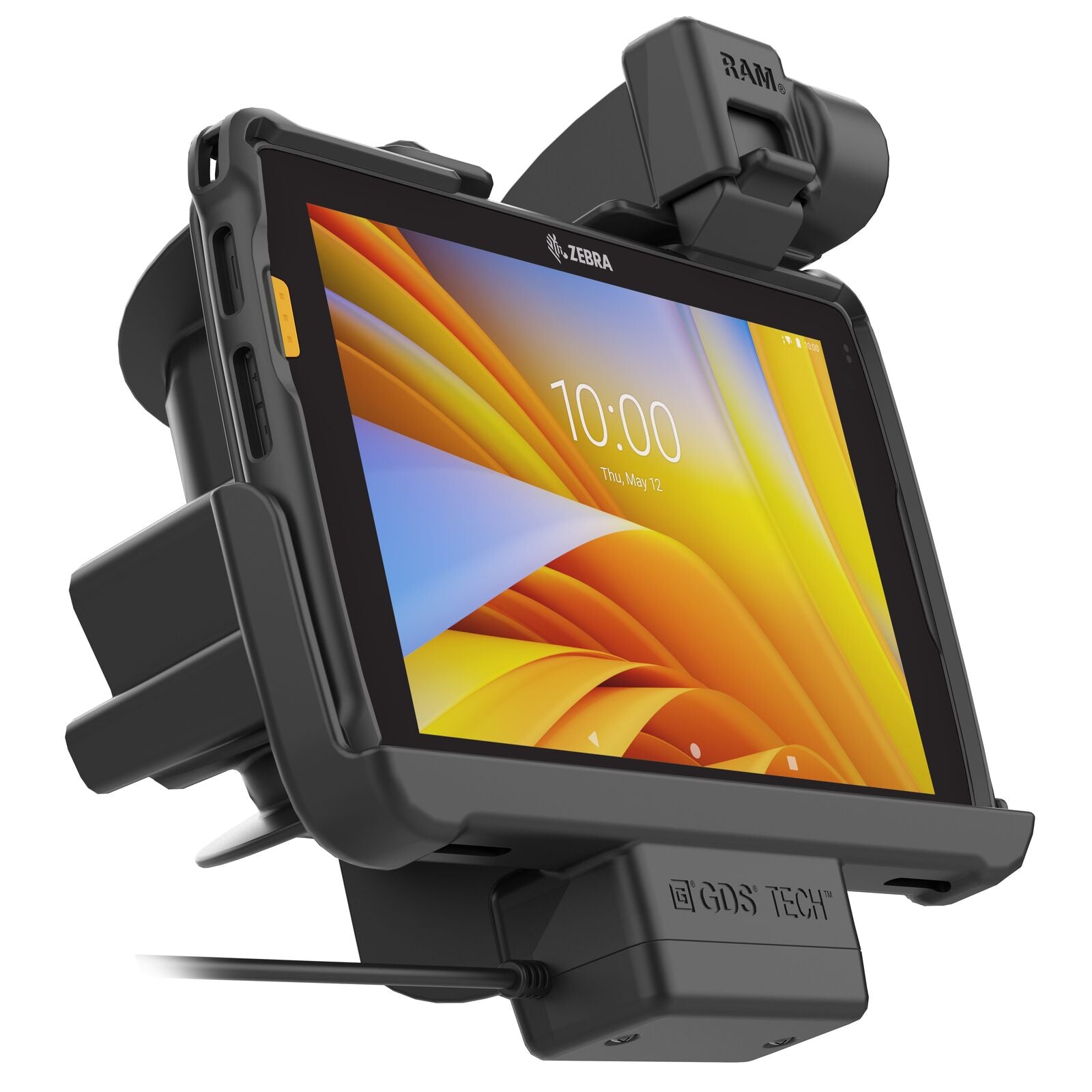

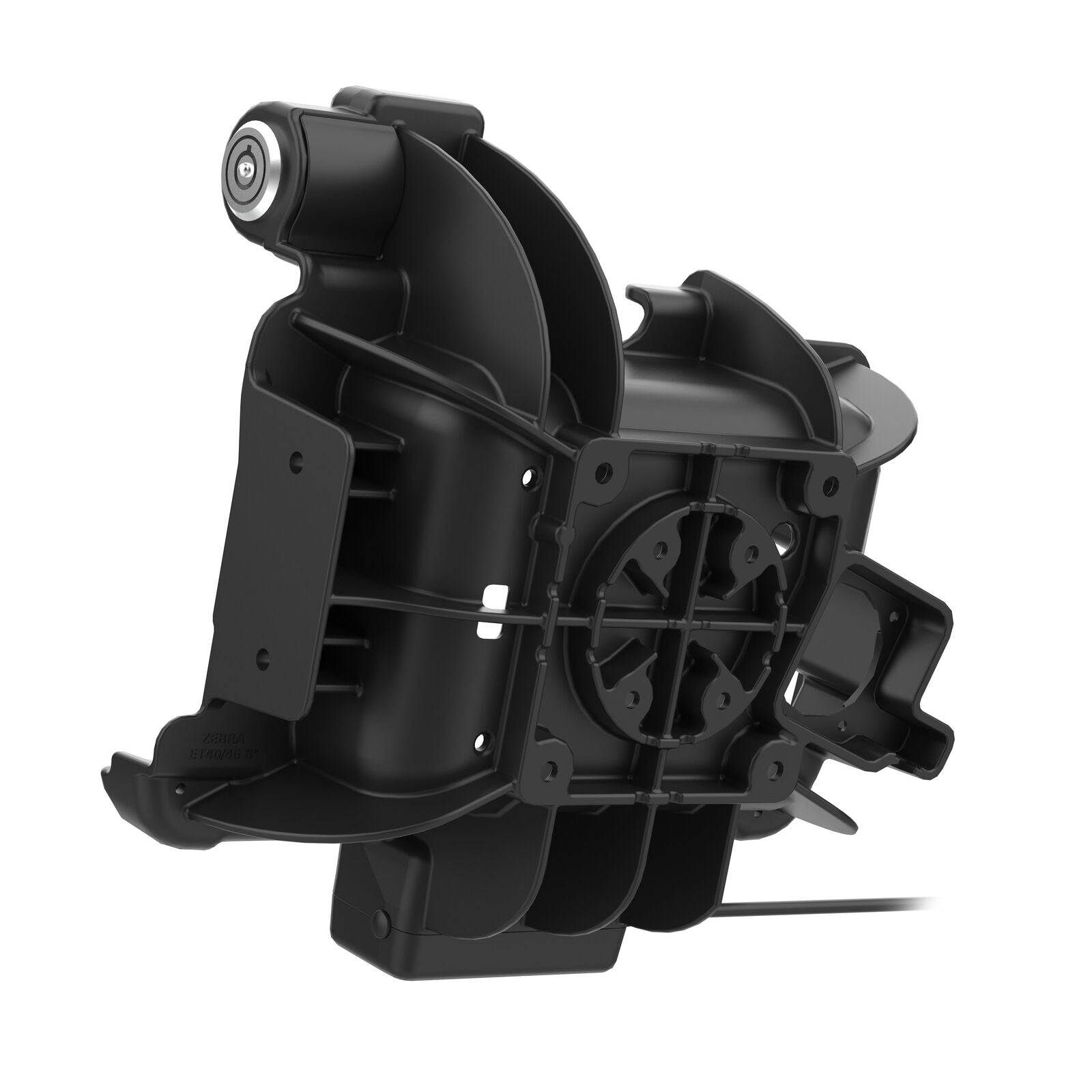

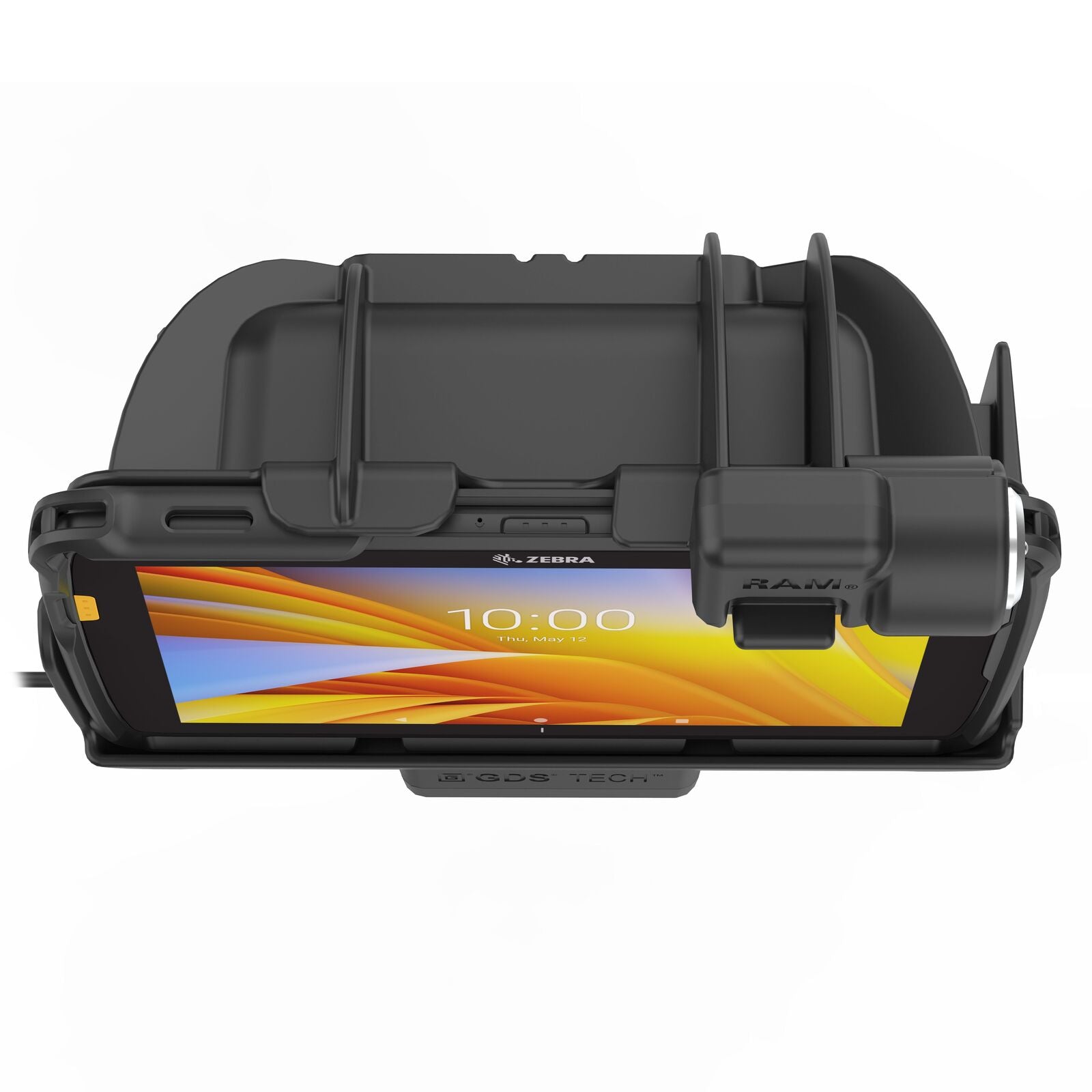

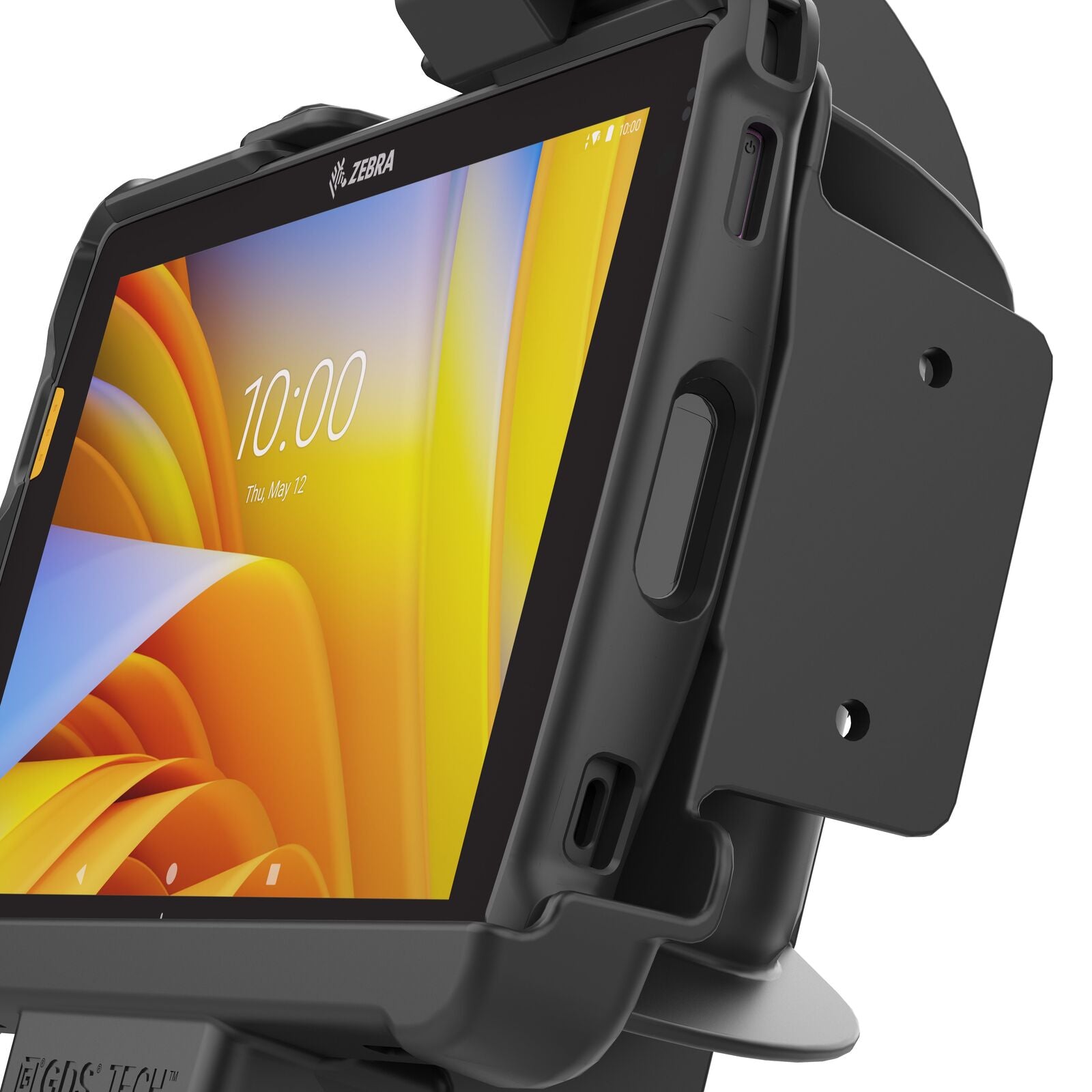

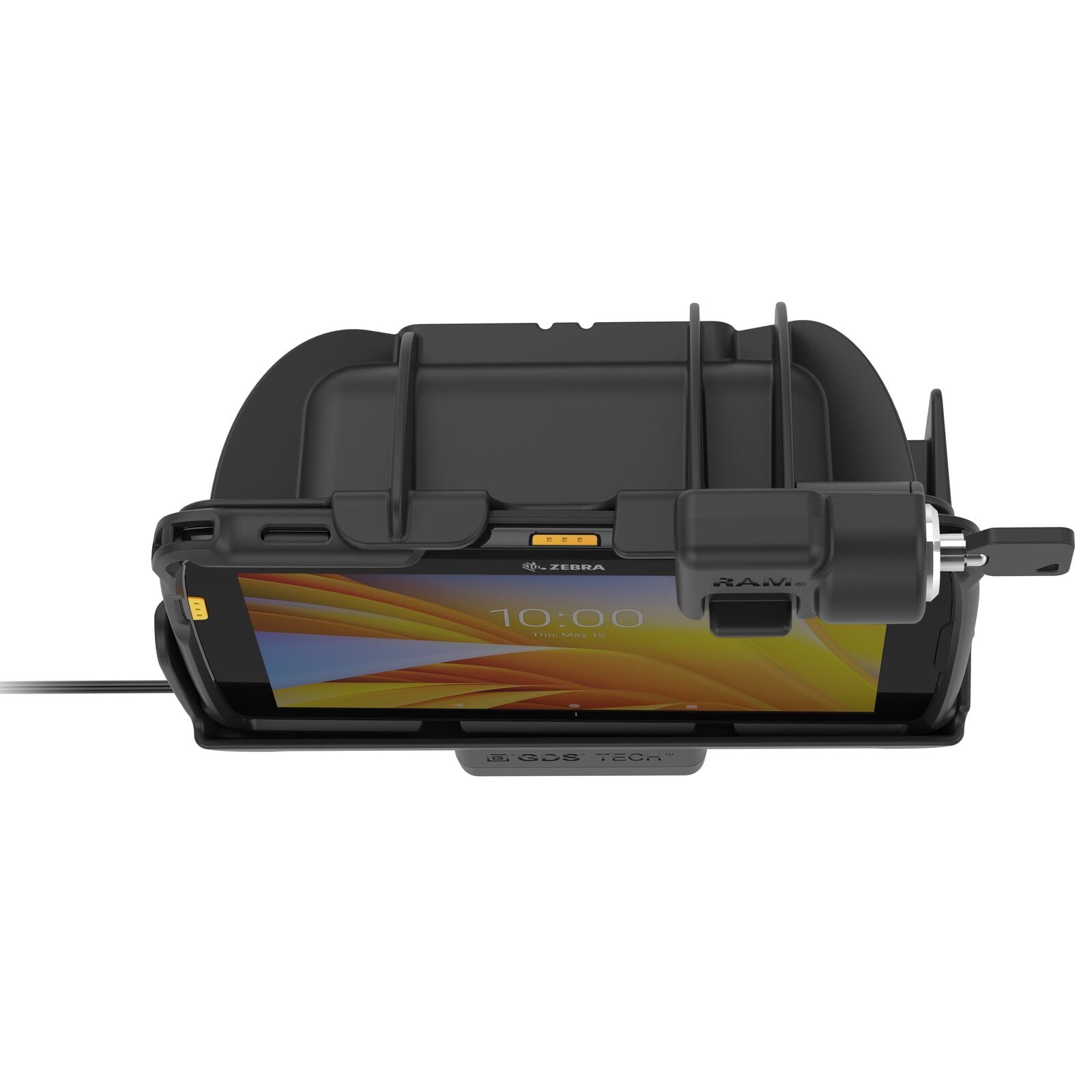

Featuring charging capabilities and a key lock for theft deterrence, the RAM® Tough-Dock™ (RAM-HOL-ZE20PKLU) works with the Zebra ET401 with RAM® Skin™ or ET40 & ET45 8" with Rugged Frame. This dock allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.

HARDWARE INCLUDED

(2) Keys(1) Side bracket for accessory mounting(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(4) #10-24 Nylock Nuts(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

INPUT CABLE LENGTH

1 Meter

CERTIFICATIONS

RoHSWEEECEUKCA

WARRANTY

3 year warranty

WEIGHT

1.51 lb

ADDITIONAL INFORMATION

To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKL-ZE20PU.
