RAM Form-Fit Powered Dock for Zebra TC51, 52, 56 & 57

RAM Form-Fit Powered Dock for Zebra TC51, 52, 56 & 57

OVERVIEW

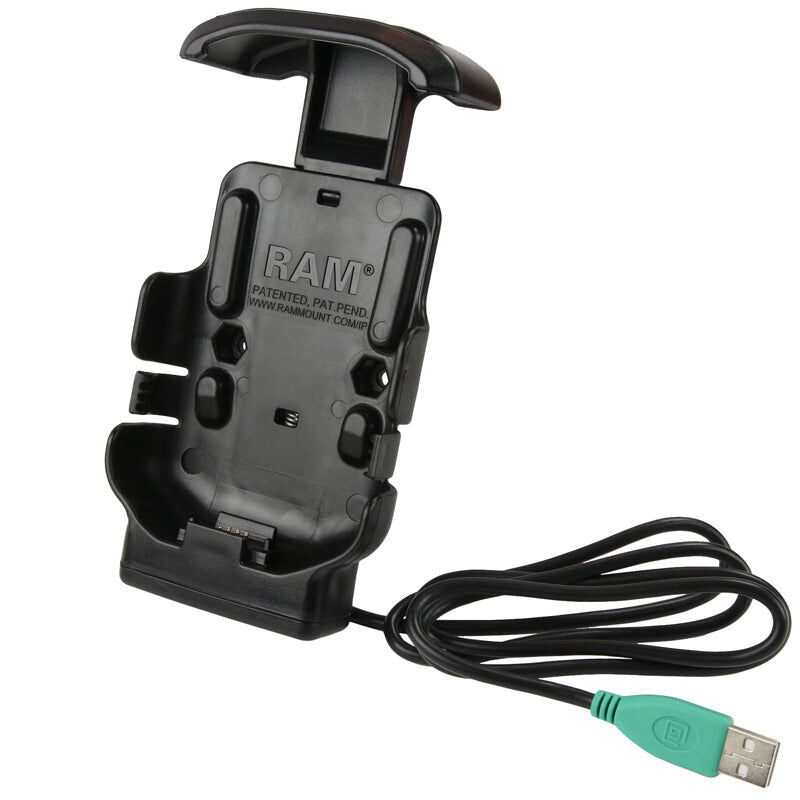

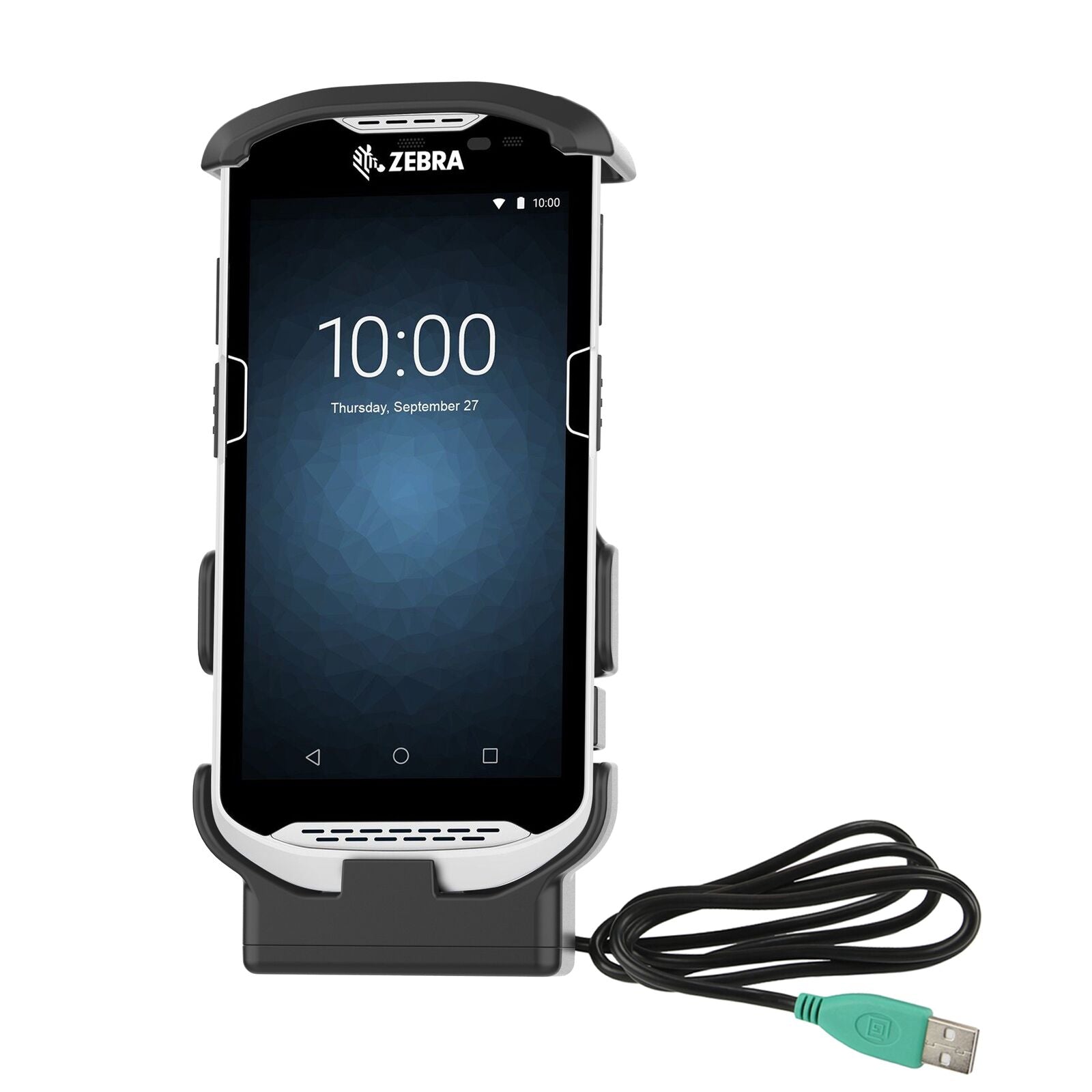

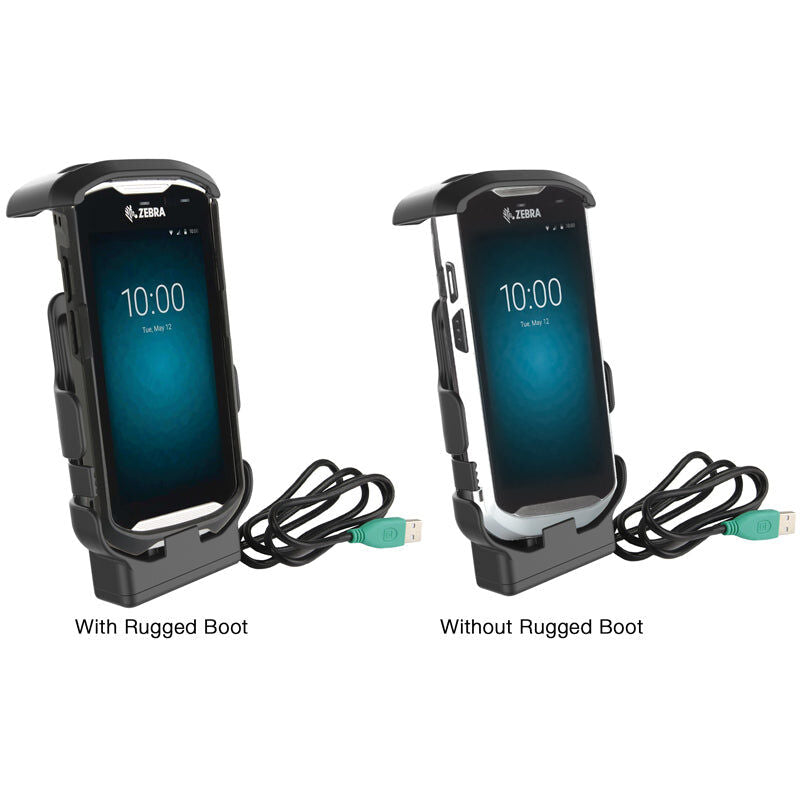

This spring-loaded cradle allows you to secure your Zebra TC51, TC52, TC56 and TC57 with or without the Rugged Boot and Handstrap accessories. The cradle is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options. For charging capabilities, take advantage of the GDS® Modular Hardwire Charger or the GDS® 2-Port USB Cigarette Charger (See Complete Your Solution tab). Includes a cable with a Type-A male connector.

HARDWARE INCLUDED

(2) #8-32 x 5/8" Machine Screws(2) #8-32 Nylock Nuts

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

USB Type A

WEIGHT

0.4 lb
