RAM Tough-Mag 48MM 4-Point Magnetic Mounting Base

$1,174.00

In stock

SKU RAM-MAG48-4U Category
Overview

FEATURES

  • Four-point steel plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness
  • 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
  • External magnets include handles for ease of install
  • Backed by a lifetime warranty

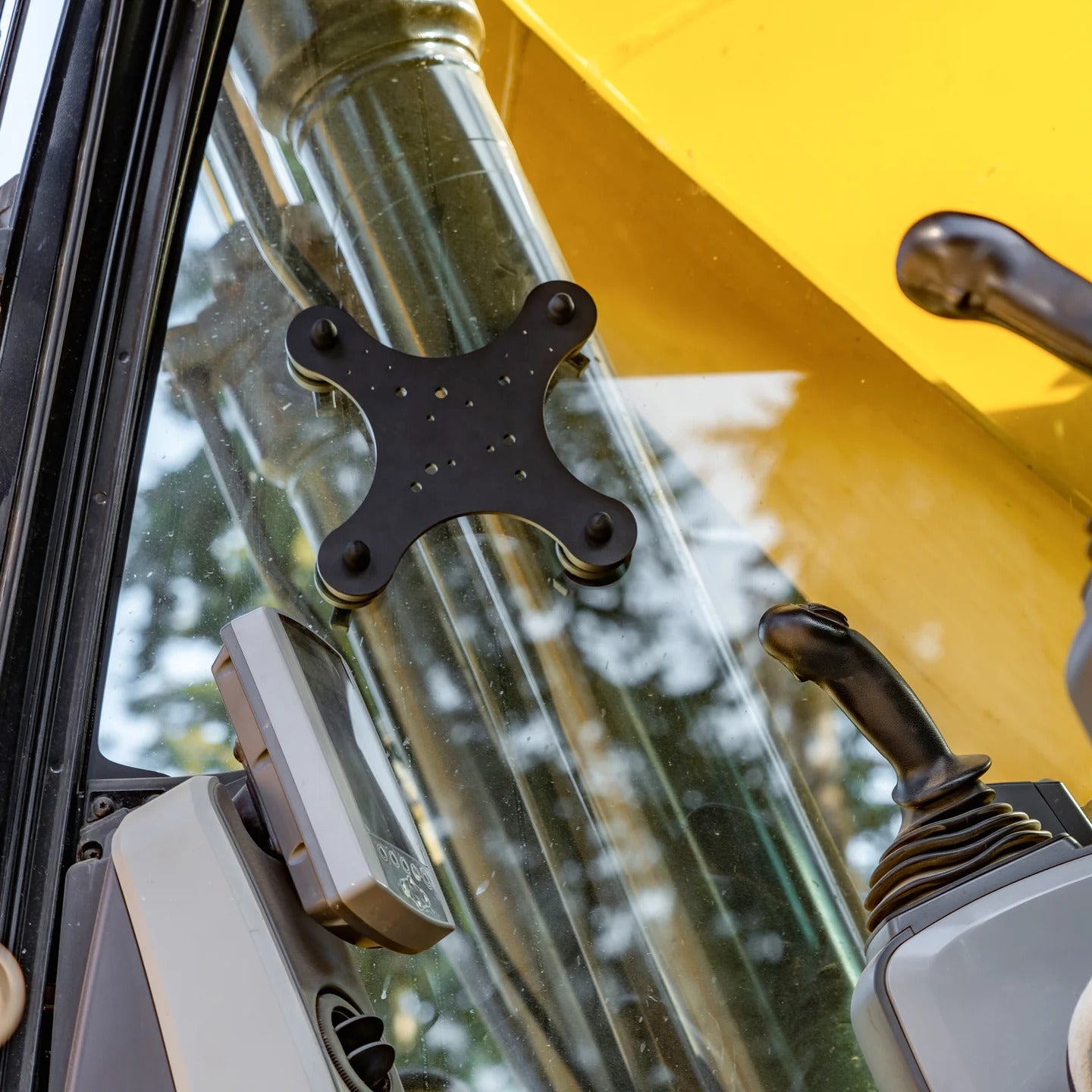

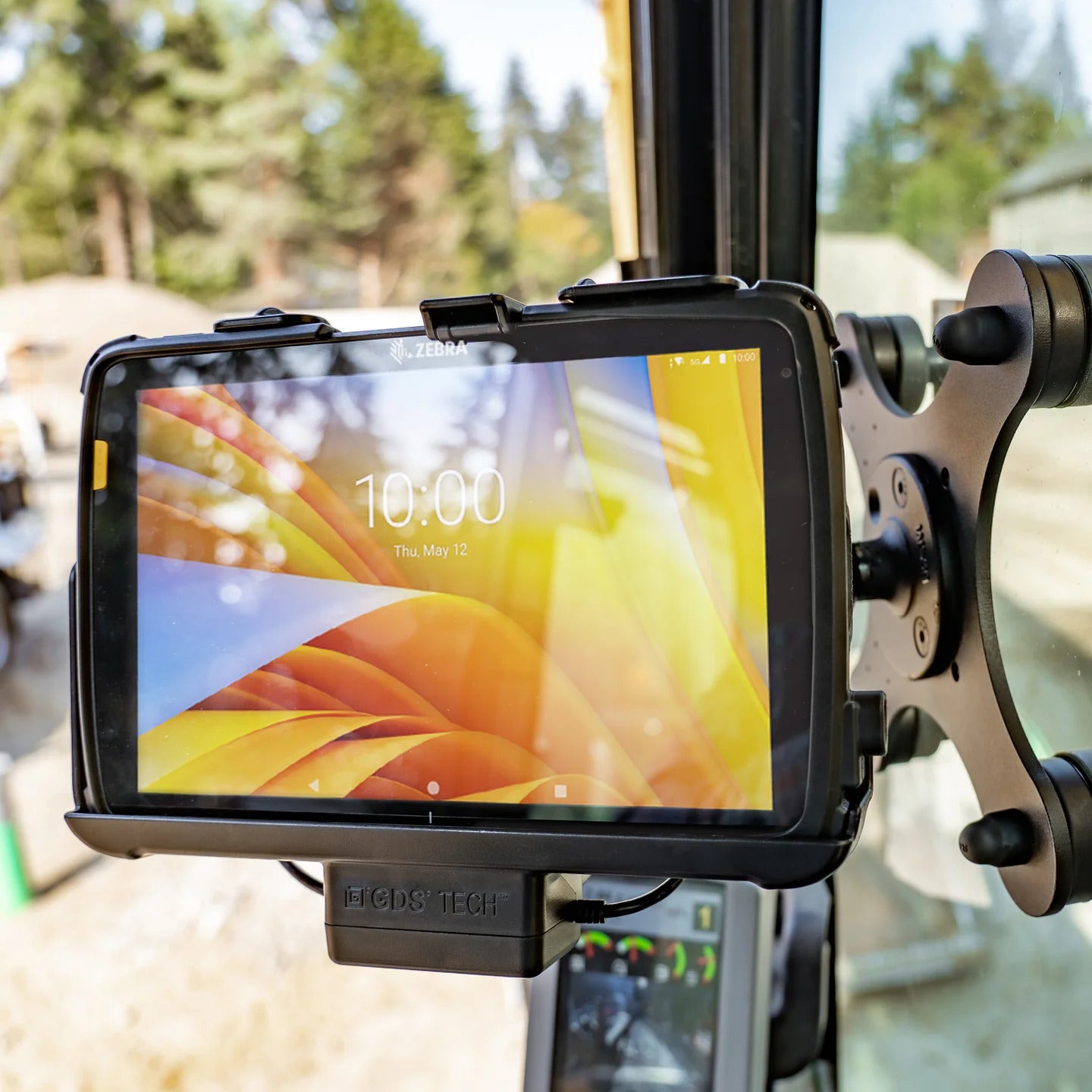

The RAM® Tough-Mag™ Magnetic Window Mount (RAM-MAG48-4U) consists of a steel plate with four magnetic ends and four 48mm external magnets for mounting on a window, or any other flat glass surface. The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.

HARDWARE INCLUDED

Assembly Hardware

  • (8) #4-40 x 1/4" Machine Screws
  • (4) #10-24 x 3/4" Machine Screws
  • (4) #10-24 Nylock Nuts
  • (4) Rubber Caps

PRODUCT DIMENSIONS

  • Overall Length: 8.99"
  • Overall Width: 8.99"
  • Overall Thickness (inside surface): 1.64"

HOLE PATTERN

  • 4-Hole AMPS: 1.181" x 1.496"
  • 75 x 75mm VESA

PACKAGING TYPE

Poly Bag
