RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob – D Size Short

RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob – D Size Short

OVERVIEW

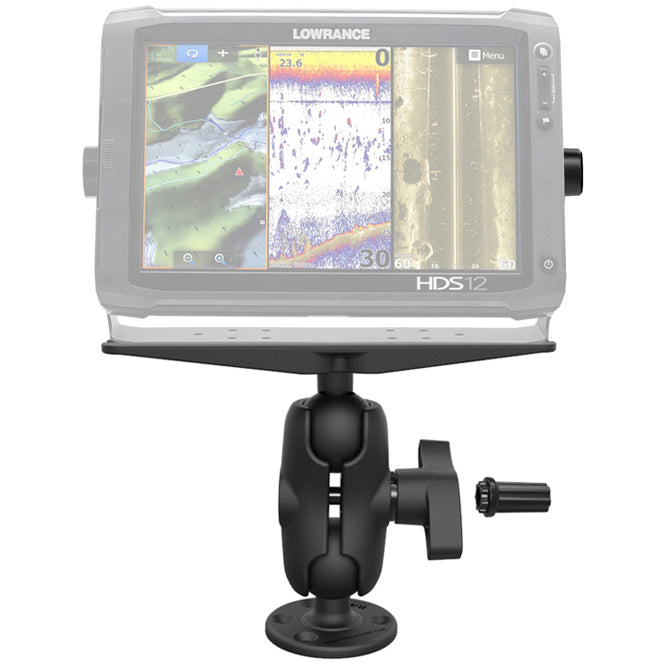

The RAM-SG-D-111U-C consists of a 3.68" diameter round base, SHORT LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.

HARDWARE INCLUDED

(2) RAM Pin-Lock Security Keys(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Length: 8.125"

SOCKET TO SOCKET LENGTH

3.6"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 3" x 11"Bottom Plate: 3.68" Diameter

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbsHeavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

4.47 lb

ADDITIONAL INFORMATION

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
