RAM Vertical Drill-Down Laptop Mount (Legacy) (RAM-VB-181-SW1)

RAM Mounts

$539.00

Out of stock

Available on backorder
Not sure which RAM® Mount you need?Build your complete mount: pick your device and where it goes.Build my mount
SKU RAM-VB-181-SW1 Categories ,
Overview

Overview

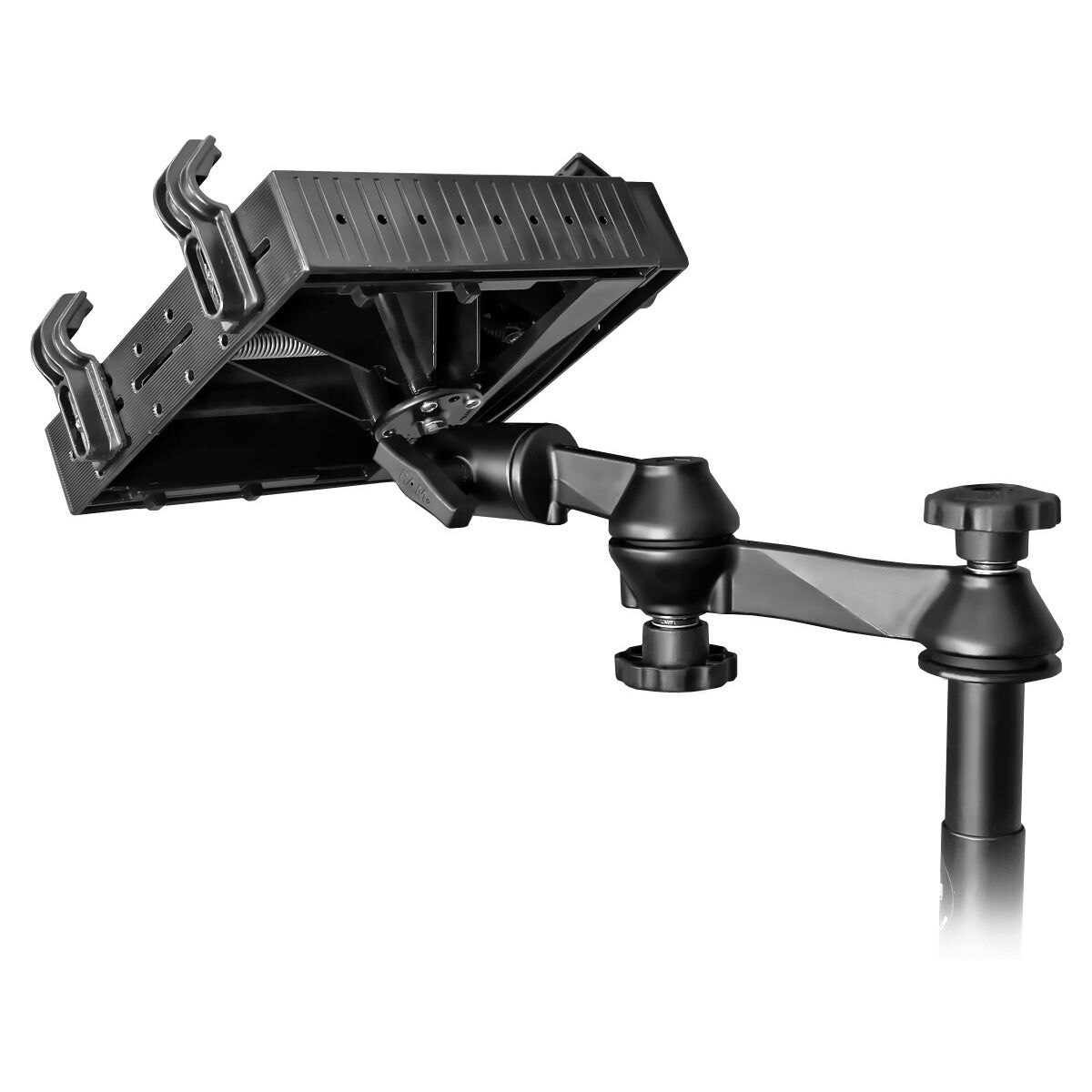

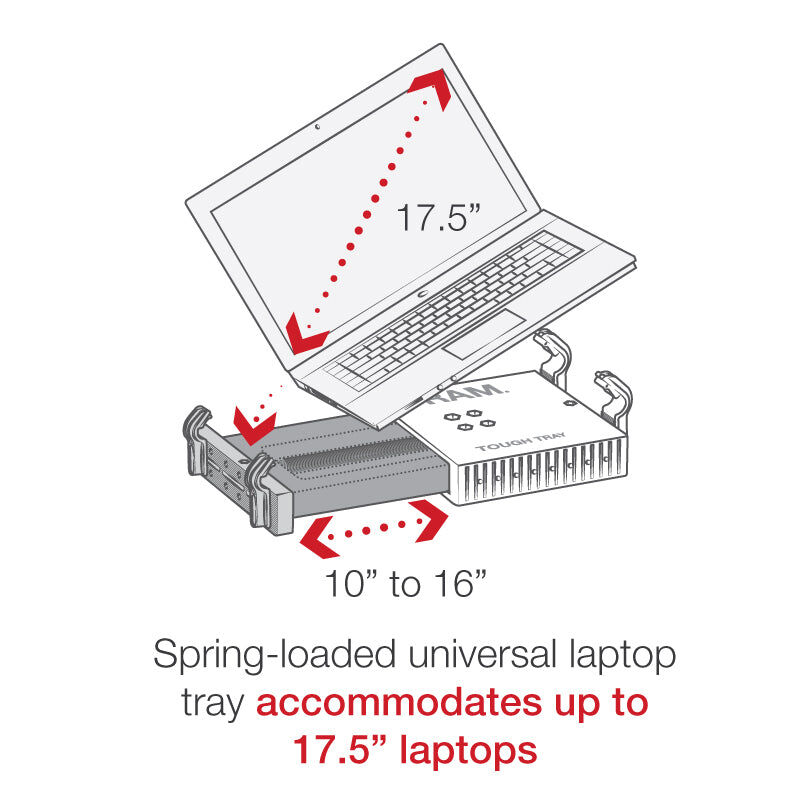

The RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW1) can be installed into any vehicle with a flat, vertical surface or directly to the RAM® Tough-Box™ console. This laptop mounting kit is telescoping, allowing users to adjust the height. Dual swing arms provide articulation and 12” of reach for passenger or driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.

Features

  • Custom laptop vehicle mount installs directly to flat, vertical surface; drilling required

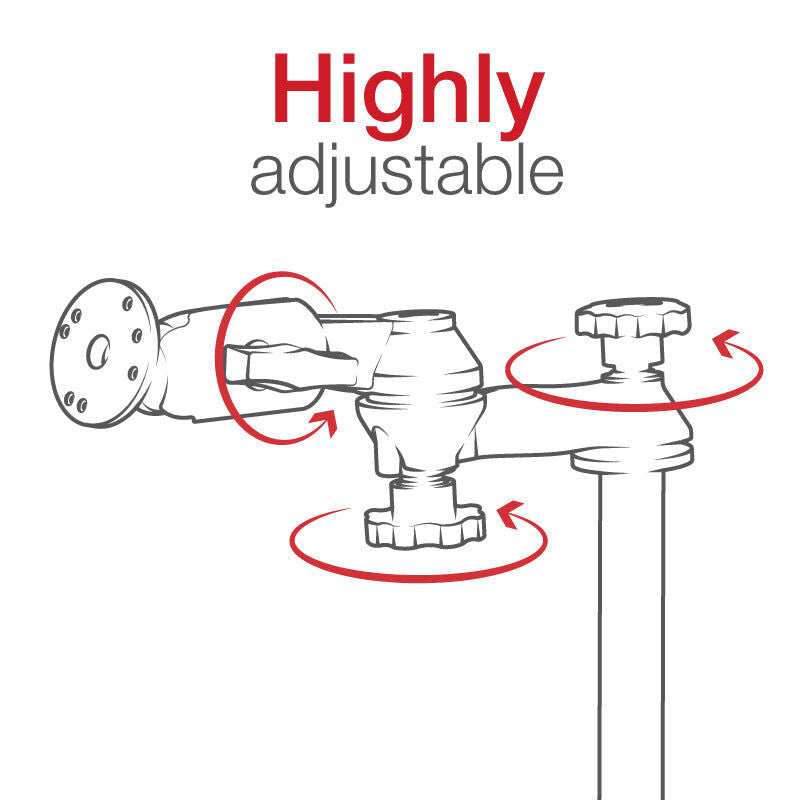

  • Dual articulating swing arm provides a high-level of adjustability
  • Universal laptop tray accommodates most laptops
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Specs

Type: Complete mount. Nothing else needed.

Mounts on: Dashboard, console or any flat surface, screwed down.

Hardware Included

Assembly Hardware

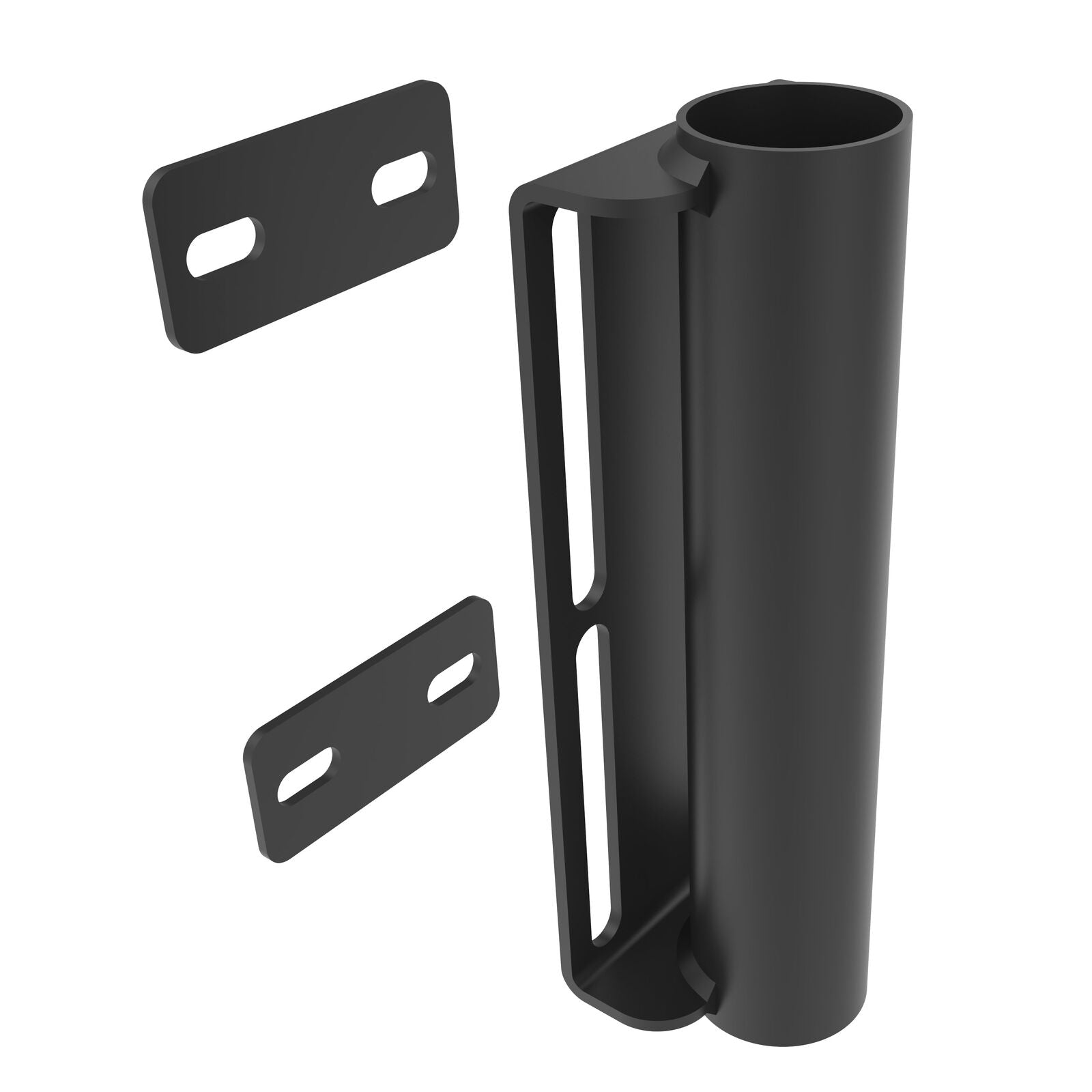

(2) Backing Plates
(4) 1/4"-20 x 1" Hex Bolts
(4) 1/4"-20 Hex Nuts
(8) 1/4" Flat Washers
(4) 1/4" Lock Washers
(2) #10-24 x 3/4" Machine Screws
(2) #10 Fender Washers
(1) 1/4"20 x 3/4" Machine Screw

Tray Dimensions

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

Hole Pattern

See Drawing

Ball Size

C Size (1.5")

Materials

Powder coated steel
Marine grade-aluminum
High strength composite

Packaging Type

Box

Weight

10.23 lb
