RAM® Universal Drill-Down Vehicle Laptop Mount

RAM® Universal Drill-Down Vehicle Laptop Mount

OVERVIEW

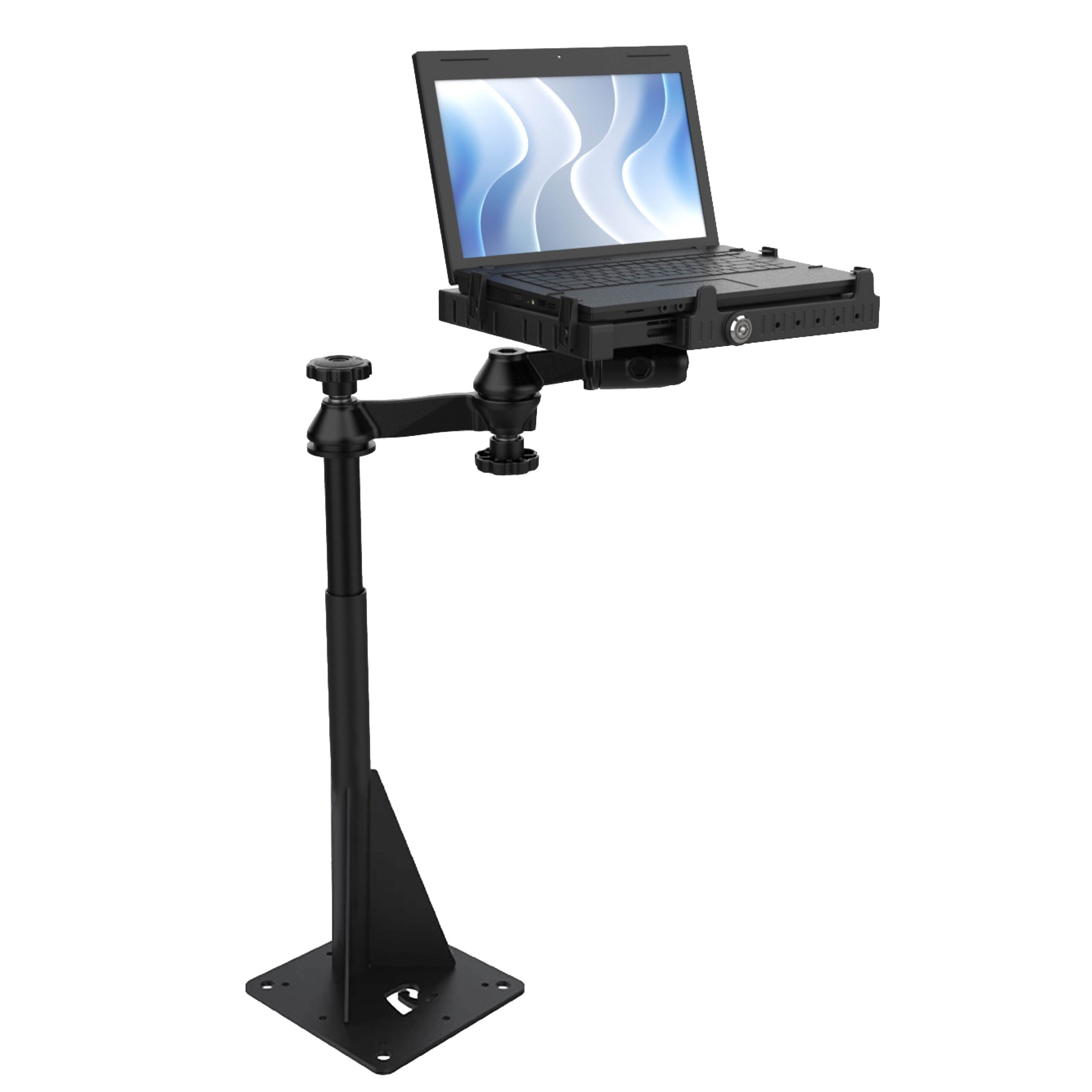

The RAM® Universal Drill-Down Vehicle Laptop Mount (RAM-VBD-122-SW3) installs into most vehicles using self-tapping screws, or alternatively, by drilling and then bolting down the mount base to the vehicle*. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.

HARDWARE INCLUDED

Assembly Hardware

PRODUCT DIMENSIONS

Minimum Height: 25.05"Maxium Height: 32.05"

TRAY DIMENSIONS

Width Range: 10" - 15.25"Side Arm Clamp Height: 0" - 1.875"Depth Range: 7.625" - 10.625"Tray Thickness: 1.26"

HOLE PATTERN

Base: See Drawing

PLATE SIZE

8" x 8"

BALL SIZE

C Size (1.5")

MATERIALS

Powder coated steelMarine grade-aluminumHigh strength composite

PACKAGING TYPE

Box

WEIGHT

16.0 lb
