RAM® U-Bolt Mount for Brother PocketJet Series – Long

RAM® U-Bolt Mount for Brother PocketJet Series – Long

OVERVIEW

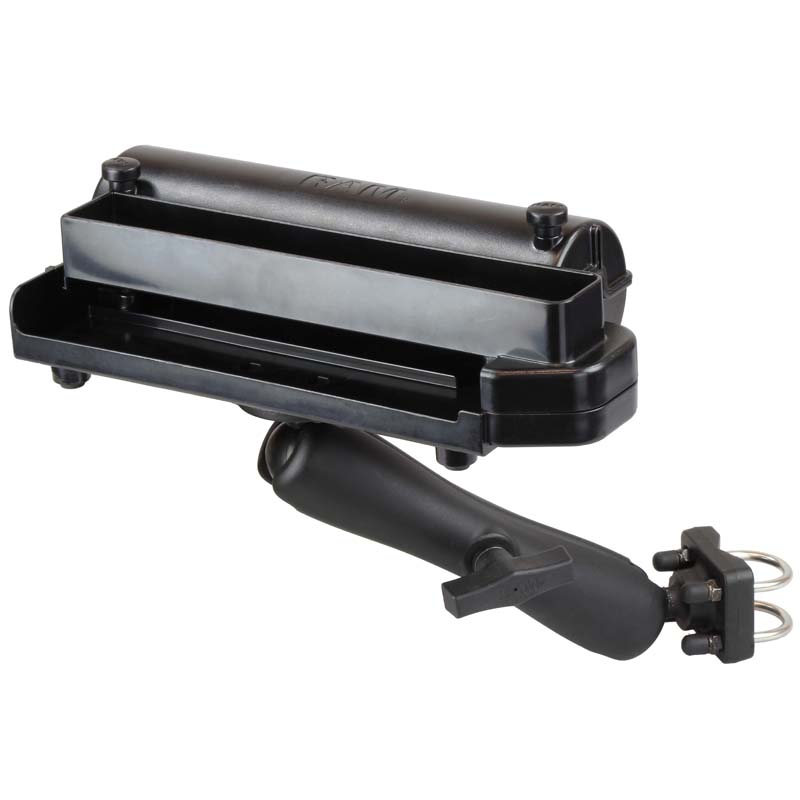

The RAM-VPR-101-D-253U is designed to hold Brother® PocketJet® 6 and 7 Series portable printers, as well as the Printek Interceptor 80 Series. A custom fit enclosure, the cradle is form fitting with no sharp edges and adds little to the overall size of the printer. Key features are full view of LED's, sight hole to check paper level, and a caddy to store pens, cell phone, paper clips, glasses and other useful items. This is a complete kit and includes C size 1.5" ball U-Bolt base, long arm and base to mount printer cradle.

HARDWARE INCLUDED

Assembly Hardware(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails(4) 1/4"-20 Nylock Nuts(4) Rubber Caps

CLAMP RANGE

1.25" - 1.5" diameter

SOCKET TO SOCKET LENGTH

8"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

3.45 lb
