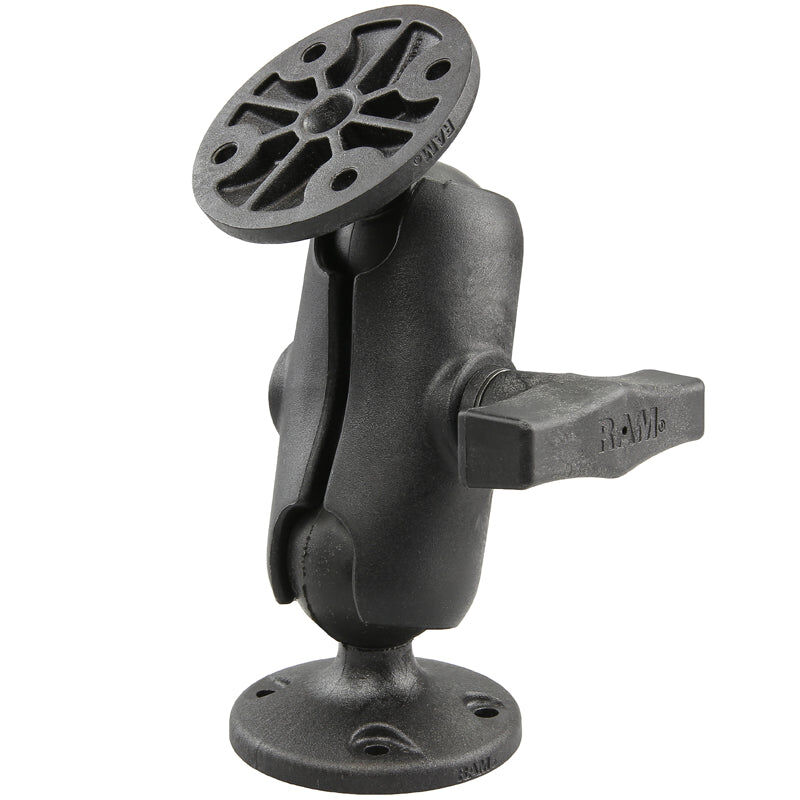

RAM Composite Double Ball Mount with Two Round Plates – Short

RAM Composite Double Ball Mount with Two Round Plates – Short

OVERVIEW

The RAP-101U-B, high strength composite flat surface mount, consists of a short double socket arm mount and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device.

PRODUCT DIMENSIONS

Overall Height: 5.75"

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE

2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.62 lb
