RAM® Composite Double Ball Mount for Lowrance Elite-5, Mark-5 + More

RAM Mounts

$103.00

RAM Composite Round Plate with Ball - C Size

$26.00

RAM Composite Double Socket Arm - C Size Medium

$42.00

RAM Quick Release Ball Adapter for Lowrance Elite 5 & 7 Ti + More

$35.00

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAP-101U-LO11 Categories , ,
Overview

Overview

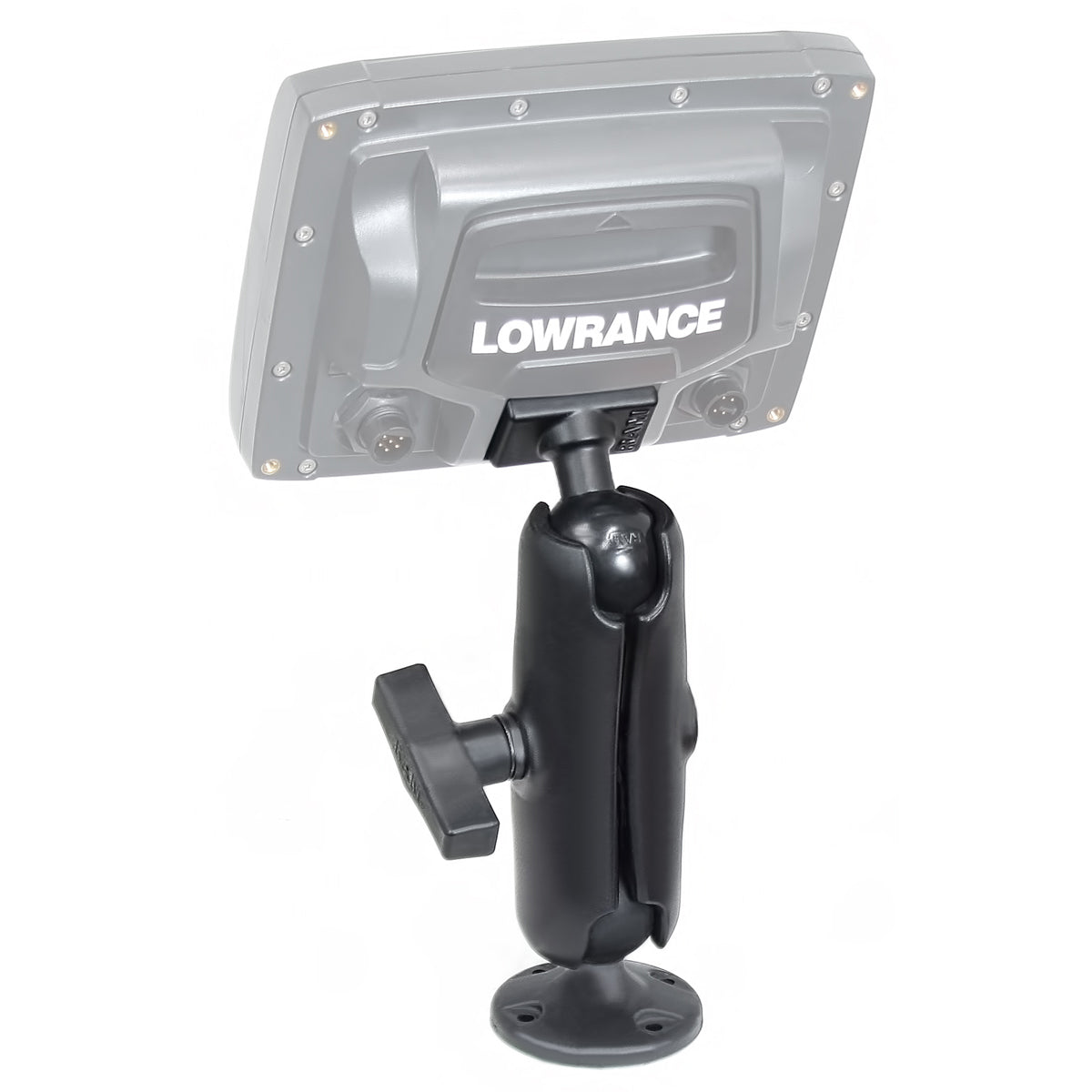

The RAP-101U-LO11 consists of a 2.5" diameter round base that contains the universal AMPS hole pattern double socket arm and adapter base that inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Specs

Product Dimensions

Overall Height: 7.35"

Socket To Socket Length

4.66"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Plate Size

2.5" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag
