RAM Cable Manager with AMPS Hole Pattern for Electronic Mounts

OVERVIEW

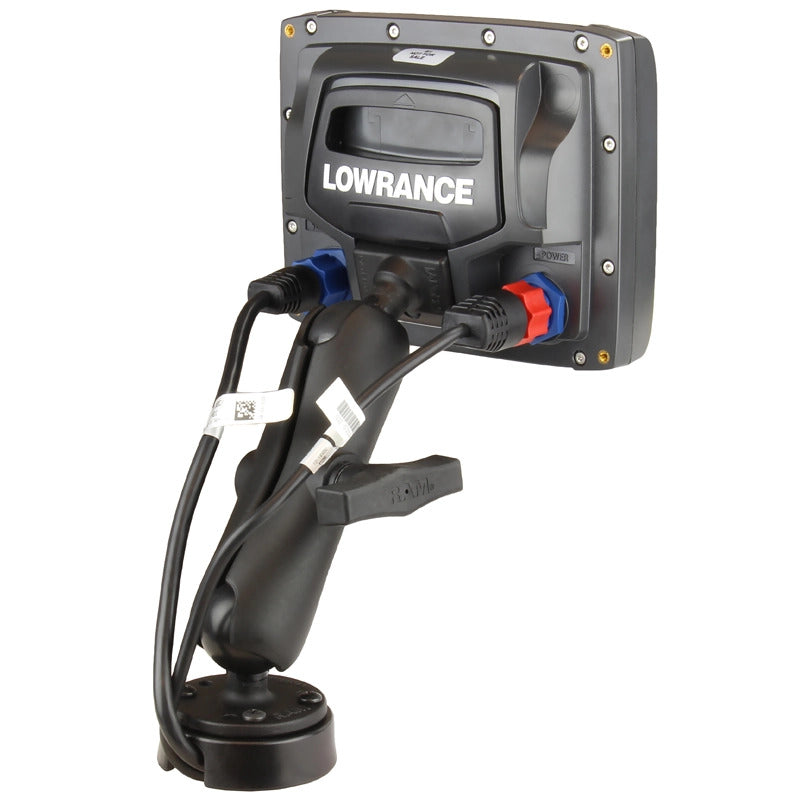

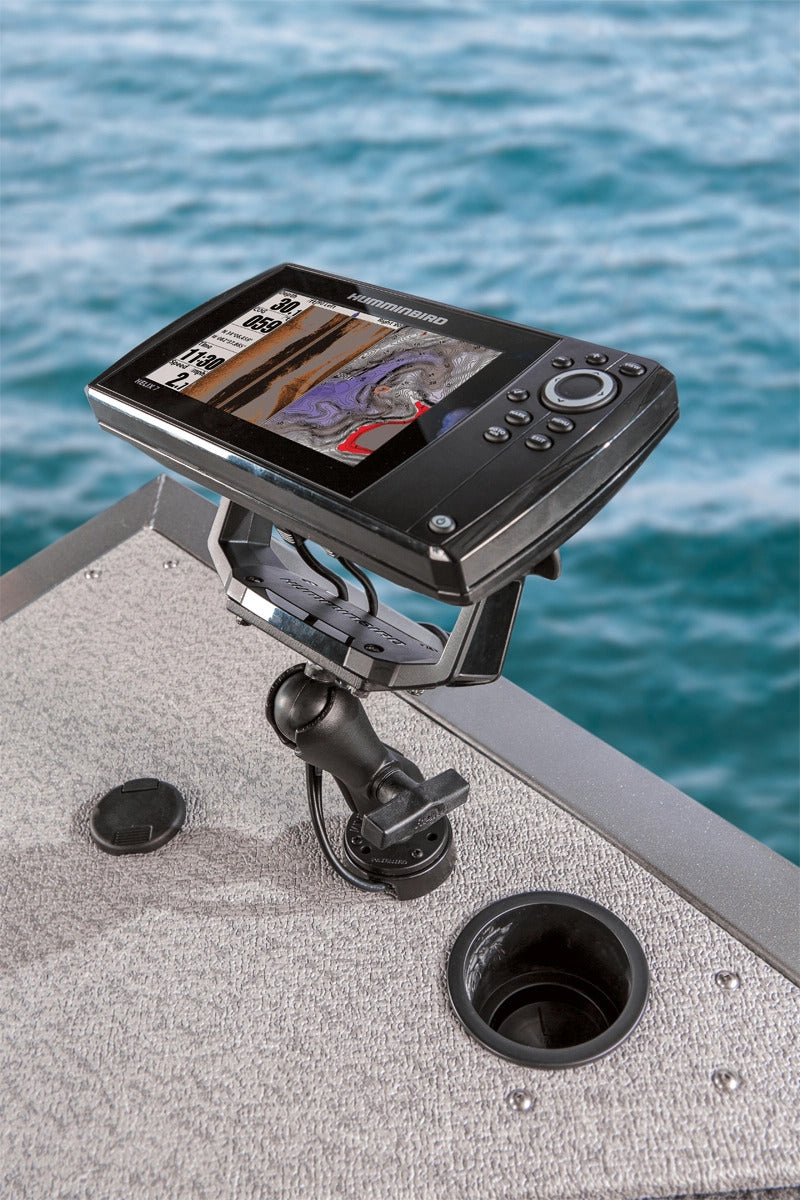

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.

HARDWARE INCLUDED

(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

PRODUCT DIMENSIONS

Cable Slot Height: .56"
Cable Slot Width: .7"

CLAMP RANGE

Max mounting surface thickness: .68"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.25 lbs.

ADDITIONAL INFORMATION

• To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
