RAM Track-Node Adjustable Track & Ratchet Base - Image 1

RAM Track-Node Adjustable Track & Ratchet Base - Image 2

RAM Track-Node Adjustable Track & Ratchet Base

RAM Track-Node Adjustable Track & Ratchet Base

Name: RAM Track-Node Adjustable Track & Ratchet Base
Brand: RAM Mounts
SKU: RAP-411
Availability: InStock

$56.00

In stock

Mounting base: slides into a RAM track.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

SKU RAP-411 Category General Mounts

Overview

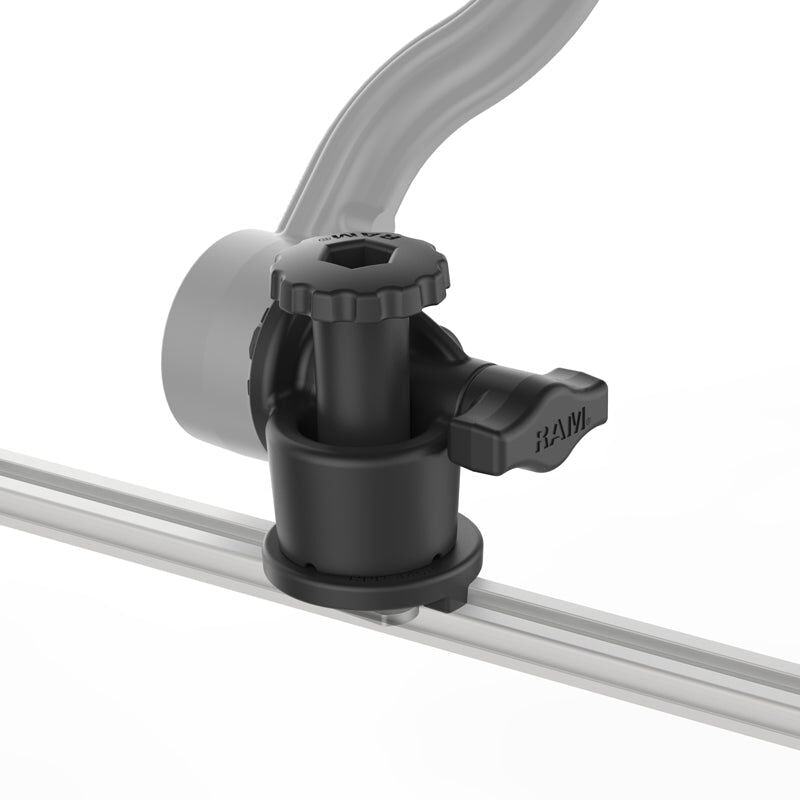

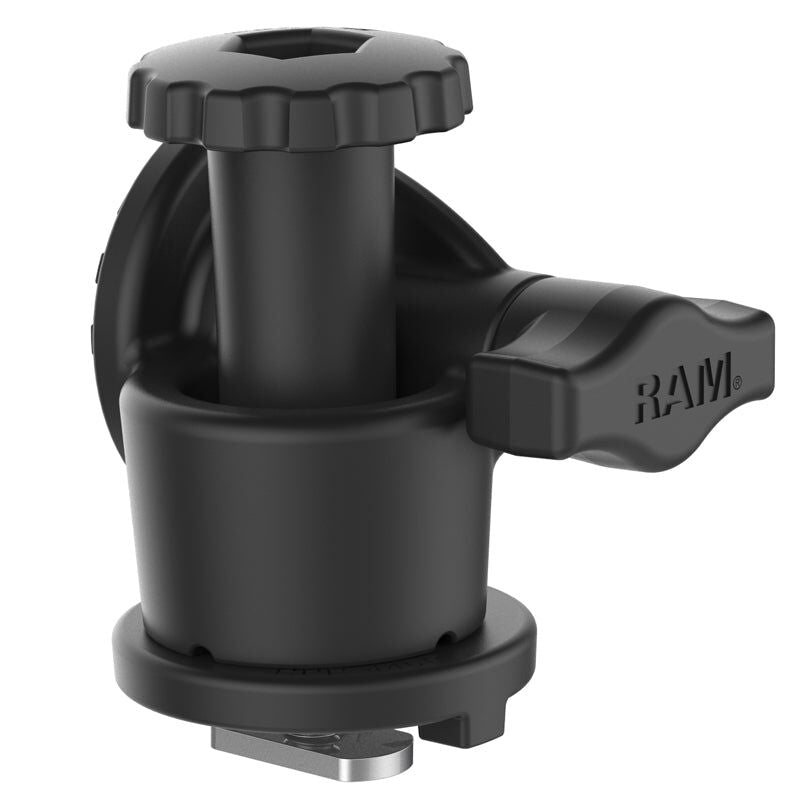

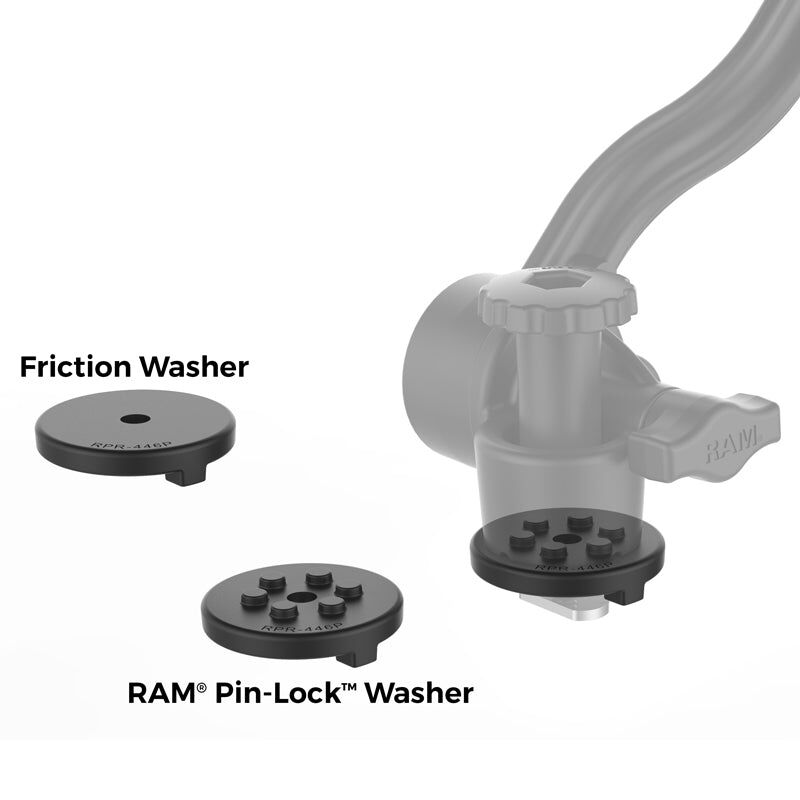

The RAM® Track-Node™ is a ratcheting, highly adjustable track base designed to accommodate both fishing rod holders and the RAM® Tough-Pole™ action camera mount. Included with the stand-alone base is a fixed and friction washer. The fixed washer allows you to attach a compatible rod holder, and the friction washer allows you to attach a RAM® Tough-Pole™. A quick twist of the knob allows you to easily swing your rod holder or action camera in and out of your vessel. To install, simply slide the RAM® Track-Node™ base into your track mount system thanks to the connected T-Bolt and turn the circular knob to tighten in place. Loosen the circular knob for 360-degree rotation. The RAM® Track-Node™ is compatible with all versions of the RAM® Tough-Track™ and most third-party track mount systems.

Specs
