RAM Mounts

$72.00

In stock

Mounting base: mounting base.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAP-469U Categories ,
Overview

Overview

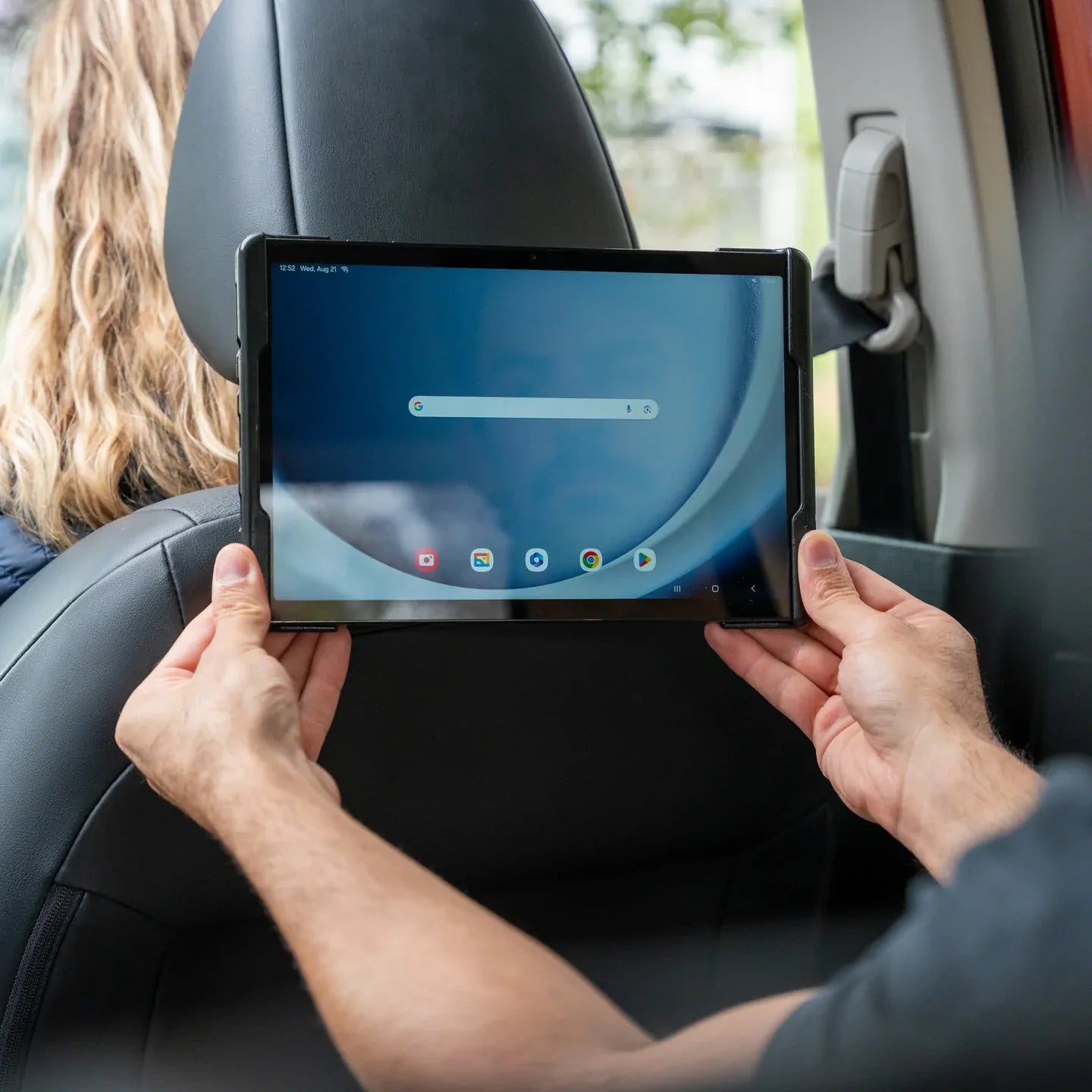

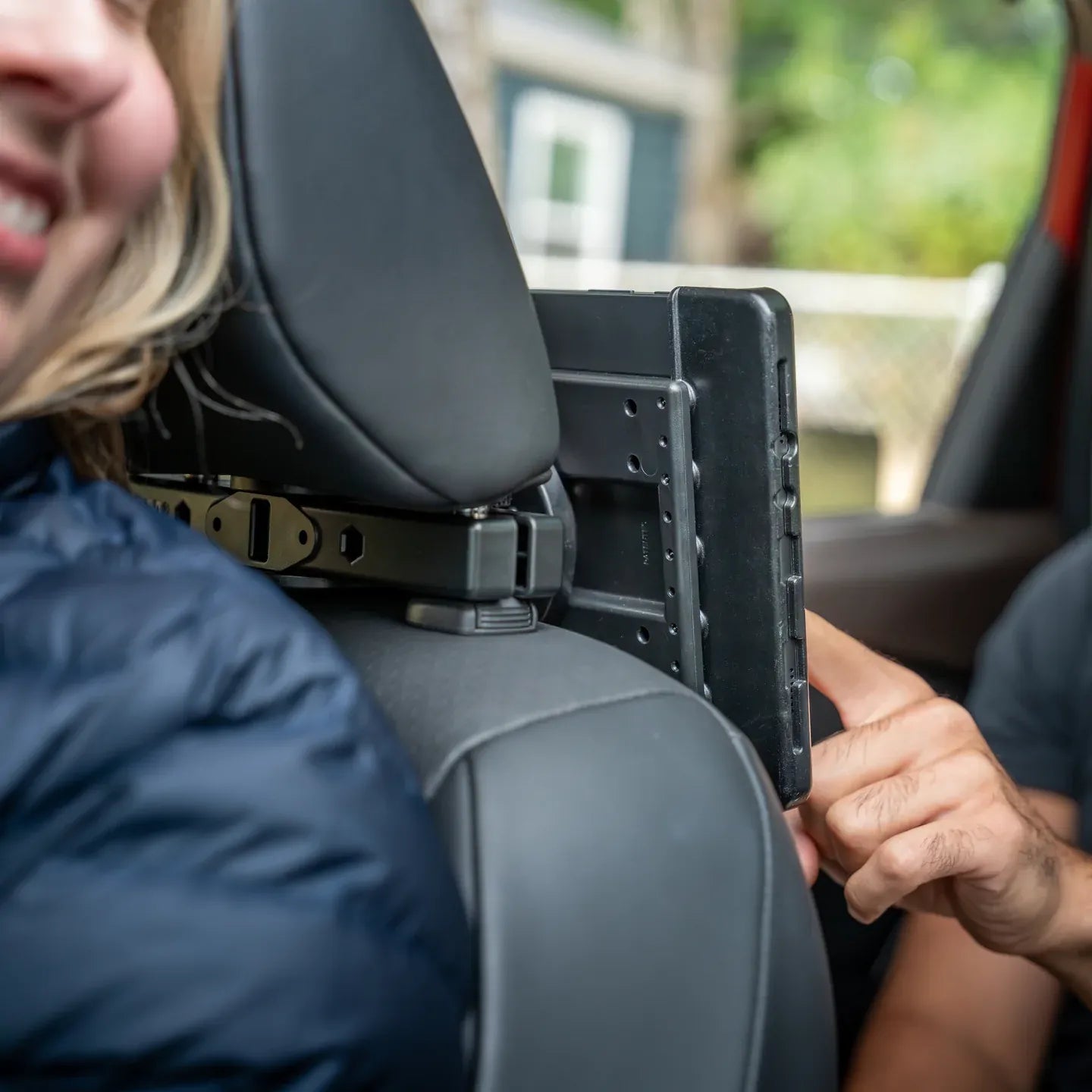

The RAM® Headrest Swivel Mount for Tab-Tite™ Holders (RAP-469U) secures to the headrest of most cars, providing a clean mounting location for RAM® Tab-Tite™ tablet holders to elevate the backseat experience of your passengers. This solution features a 4-hole APMS pattern that can easily swivel 360 degrees, allowing passengers to easily pivot from vertical to landscape orientations. Made of high-strength composite, this solution is made for the long haul and is backed by a lifetime warranty.

Features

  • Base secures to headrest pegs; 4-hole AMPS pattern compatible with all RAM® Tab-Tite™ tablet holders
  • Swivel adapter allows 360 degree rotation of the device
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

(1) Assembly Hardware
(4) #8-32 x 3/4" Machine Screws
(4) #8-32 Thin Nylock Nuts

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.62 lb

Additional Information

This mount can only connect to RAM® Tab-Tite™ holders and will not support Tab-Lock™, X-Grip® or other form-fit holders. To acheive a locking version of the Tab-Tite™, see RAM-HOL-ACNU.
