RAM Universal Wheelchair Base with Quick Release & Swivel Feature
$75.00
In stock
Mounting base: slides into a RAM track.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview

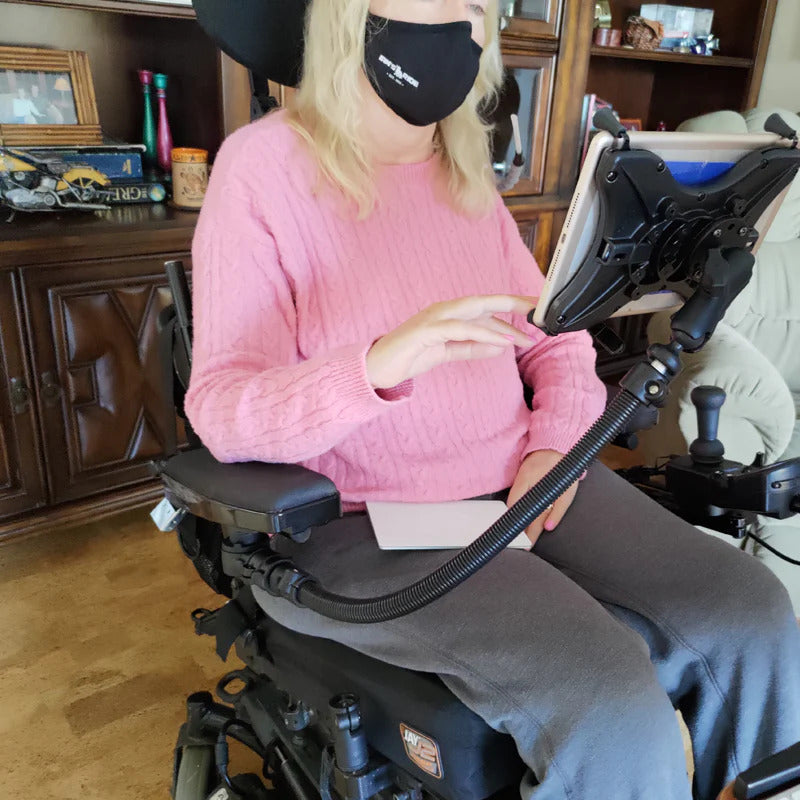

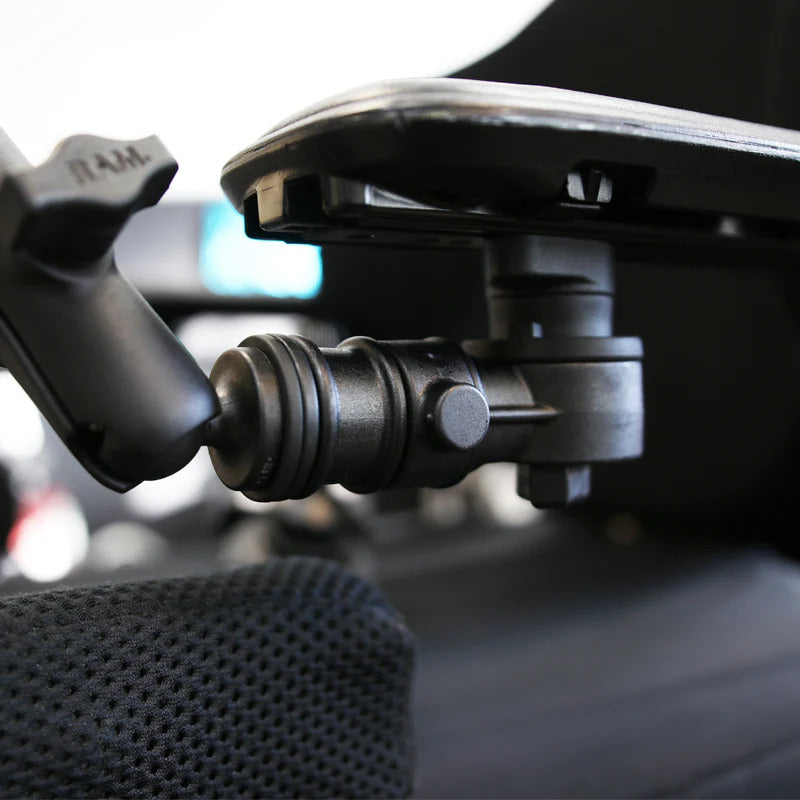

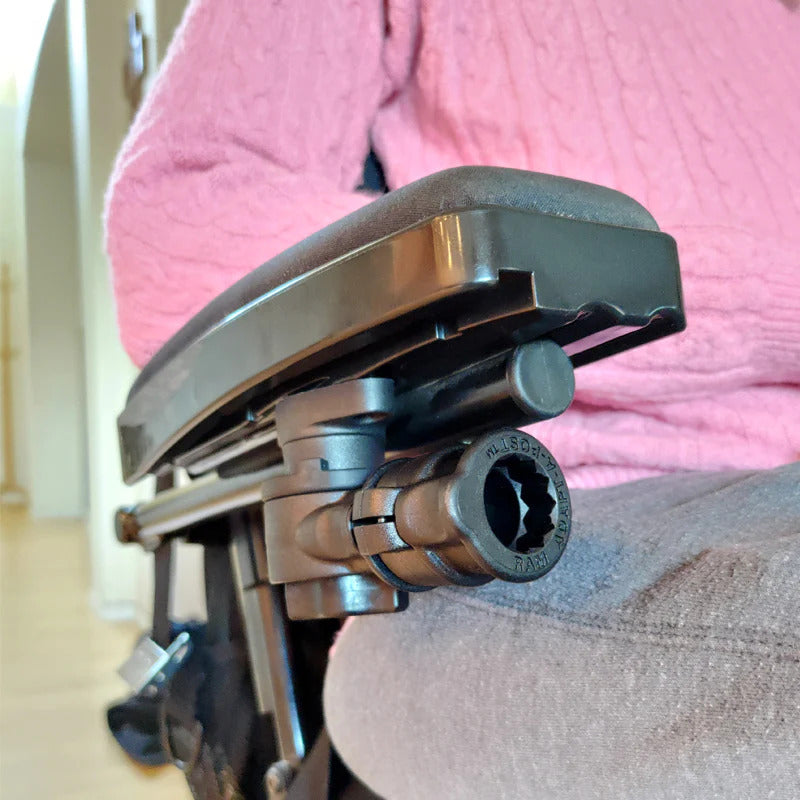

The RAM® Universal Wheelchair Base is a feature-rich mounting platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the turn of a single knob the user can swivel the entire mounting system in and out of position without having to adjust any other mounting components. A quick release button is integrated into the base which allows the user to easily remove or insert the mount from the chair; also a great option for swapping out one device mount for another. The compact design of the RAM® Universal Wheelchair base keeps the mounting system within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting components are backed by a lifetime warranty.
Features
- Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

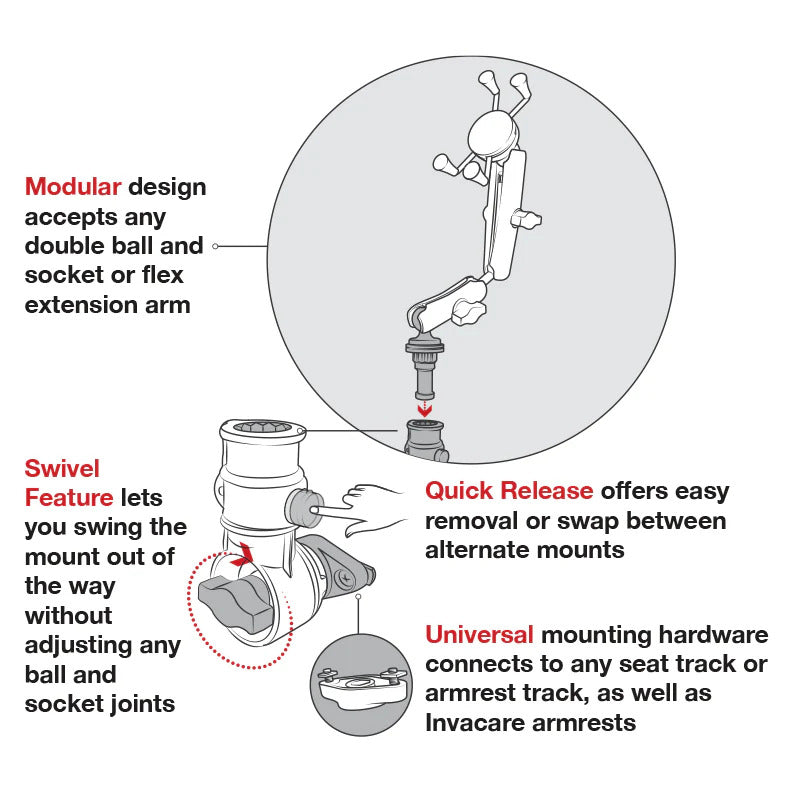

- Easy swivel and quick release capabilities without changing ball and socket positioning

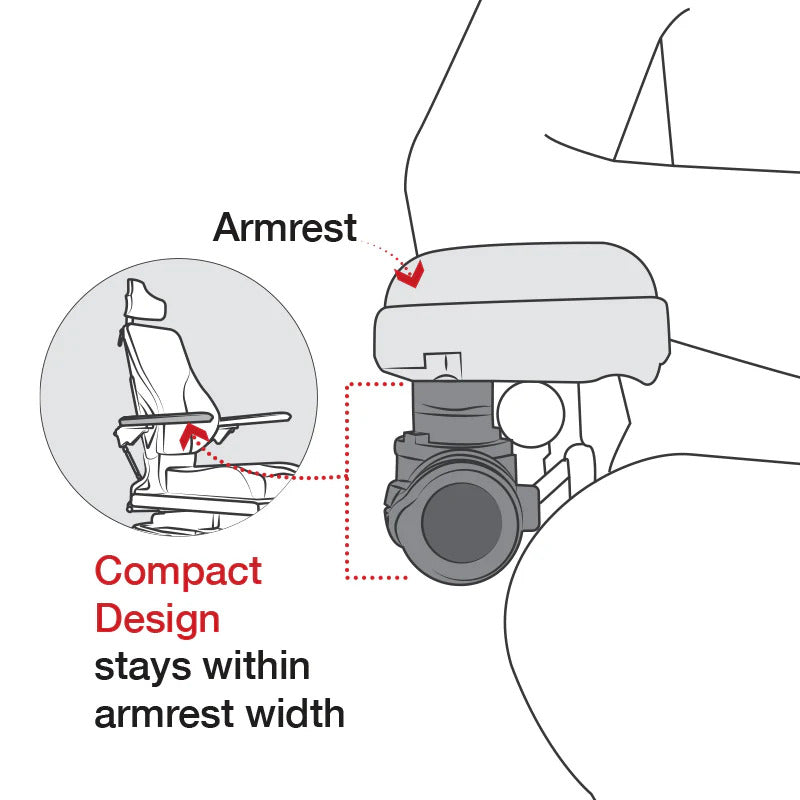

- Compact design keeps mount within armrest width
- Durable components support any phone or tablet mount with a short or long extension
- Backed by a lifetime warranty
Hardware Included
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 7/16" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) #8 Washers
T Bolt Dimensions
Large: .48" x .95"
Small: .375" x .593"
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Retail Bag
Weight
0.42 lb
