OVERVIEW

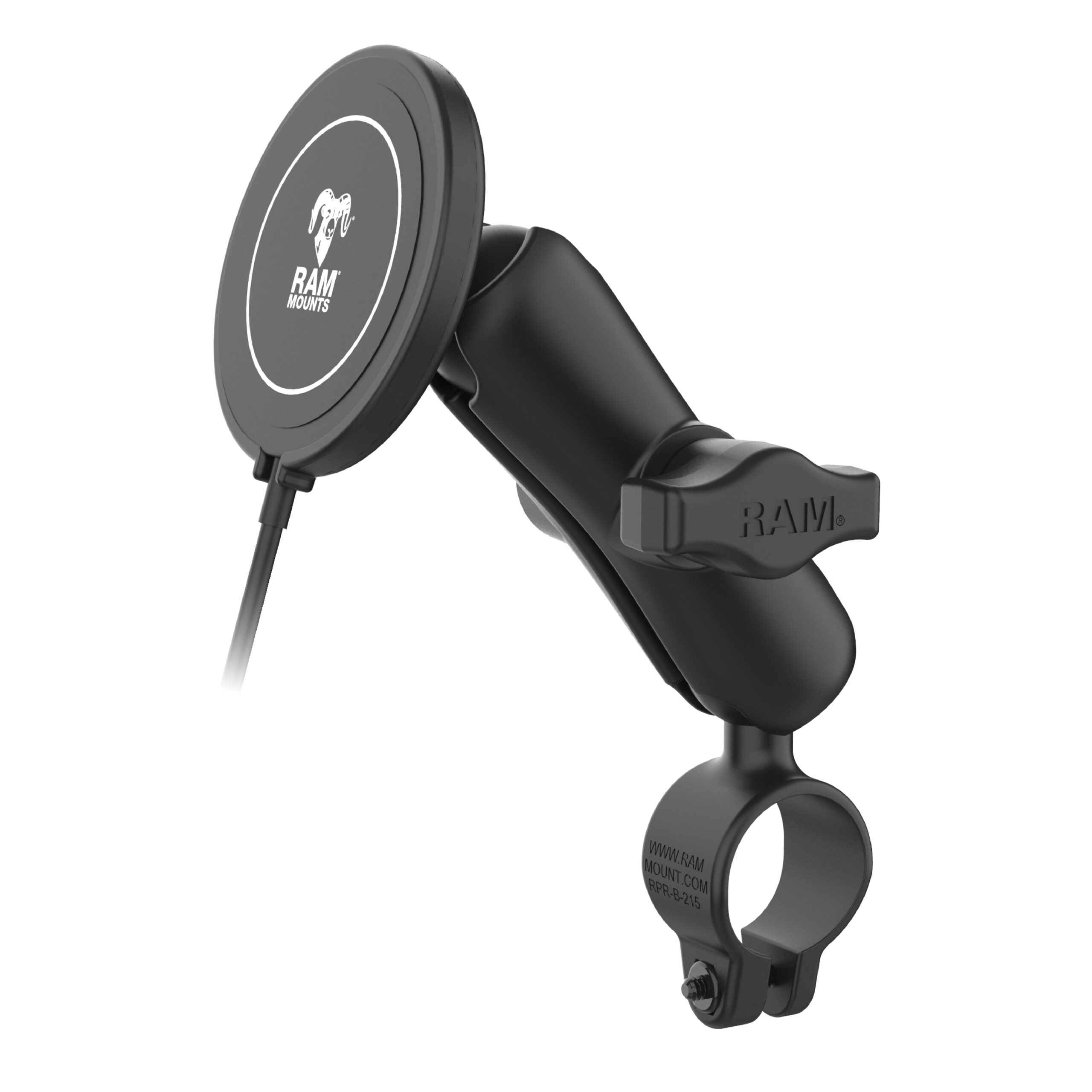

The RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger (RAP-B-149-AP-MAG-1-W2MU) seamlessly integrates the RAM® Qi2 15W Wireless Charger into the RAM® ball and socket ecosystem, delivering a secure and dependable in-vehicle mounting solution. This complete kit includes the RAM® Qi2 15W Wireless Charger along with a precision-fit adapter that keeps the charger securely in place, while compatible smartphones magnetically align and snap into position for effortless mounting and fast wireless charging. Also included is a RAM® Composite Ball Base for 1" rails and a B size medium-length socket arm, perfect for the RAM® Tough-Bar™.

HARDWARE INCLUDED

(1) #6-32 x 5/8" Machine Screw(1) #6-32 Nylock Nut

CLAMP RANGE

1" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

POWER SPECIFICATIONS

Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

INPUT VOLTAGE

USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A

POWER OUTPUT

BPP - 5WEPP - 7.5WMPP - 15W

OUTPUT CONNECTOR

USB Type-C Male with USB-A Adapter

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

0°C to +40°C

STORAGE TEMPERATURE

-20°C to +80°C

REGULATORY

Over Current ProtectionShort circuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance

CERTIFICATIONS

IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

WEIGHT

0.44 lb

ADDITIONAL INFORMATION

The included wireless charger will support up to 8mm charging distance between puck and device. A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
