RAM® Twist-Lock™ Composite Suction Cup Double Ball Mount – Long

RAM® Twist-Lock™ Composite Suction Cup Double Ball Mount – Long

OVERVIEW

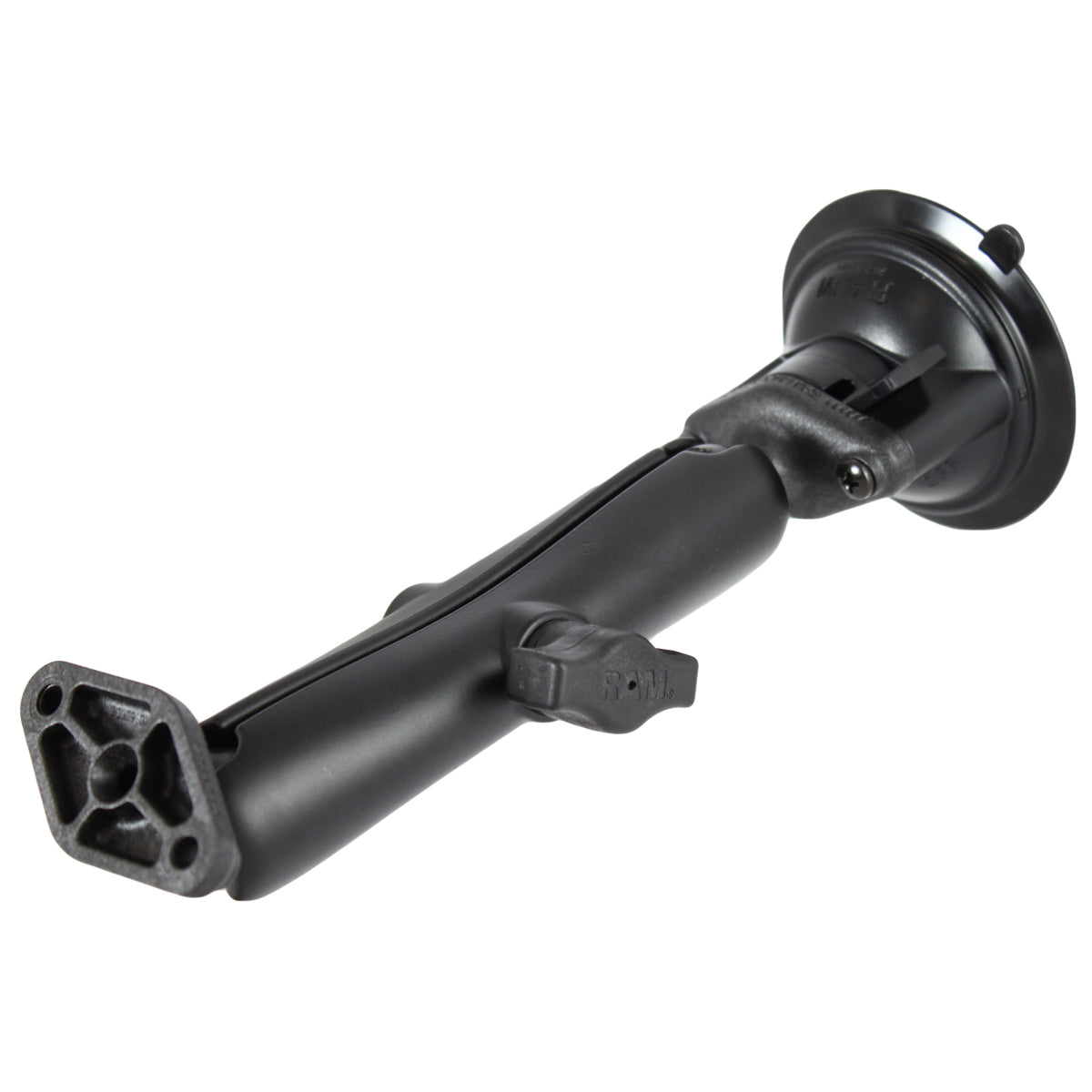

The RAP-B-166U-C consists of a 3.3" suction cup twist lock base, LONG double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

HARDWARE INCLUDED

Assembly Hardware

SUCTION SIZE

3.3" Diameter

SOCKET TO SOCKET LENGTH

5.31"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.0 lb

ADDITIONAL INFORMATION

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
