RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series

RAM Mounts

$99.00

RAM Track Ball with T-Bolt Attachment - B Size

$29.00

In stock

RAM Quick Release Ball Adapter for Lowrance Elite-4 & Mark-4 Series (RAM-B-202U-LO11)

$32.00

RAM Double Socket Arm - B Size Medium

$38.00

In stock

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAP-B-202-LO11-354-TRA1U Categories , ,
Overview

Overview

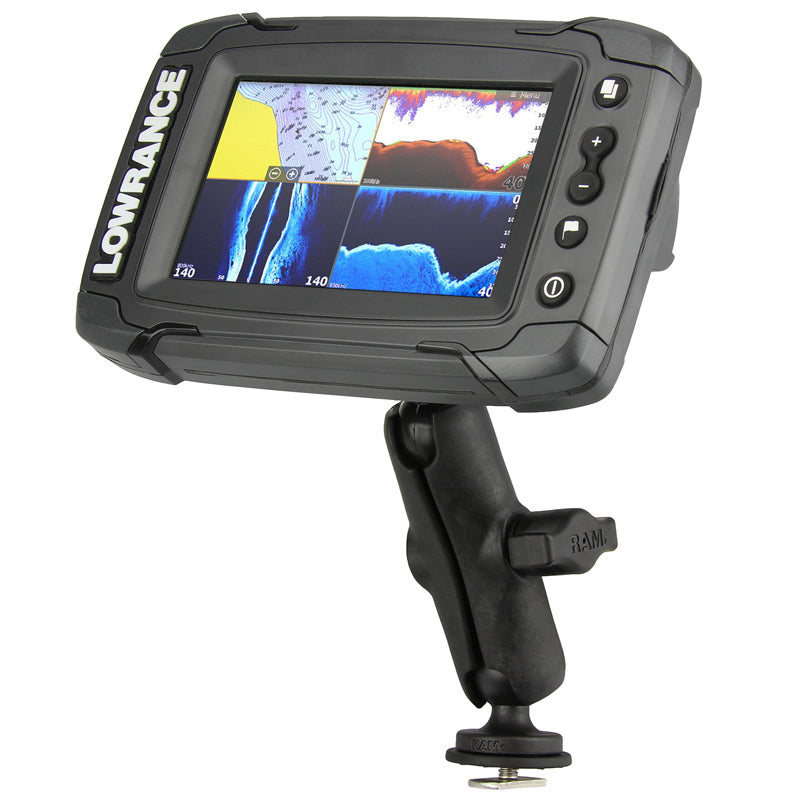

The RAP-B-202-LO11-354-TRA1U consists of a Track Ball™ base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook 4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. A key feature of the mount is a 1" diameter rubber ball and socket system with adjustment points at both socket ends of the arm. Combined with RAM's rubber ball and socket technology, this allows for high adjustibility to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track™.

Specs

Hardware Included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

T Bolt Dimensions

.48" x .95"

Socket To Socket Length

3"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

High strength composite

Packaging Type

Poly Bag

Resources
