RAM Stubby Cup Holder Mount with RAM Qi2 15W Wireless Charger

$204.00

In stock

  • Wireless charging bundle built for vehicle cup holders
  • 15W Qi2 fast charging for efficient power delivery
  • Includes RAM® Stubby cup holder weighted ball base and medium length B size RAM® double socket arm
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty
SKU RAP-B-299-4-AP-MAG-1-W2MU Categories ,
Overview

RAM Stubby Cup Holder Mount with RAM Qi2 15W Wireless Charger

OVERVIEW

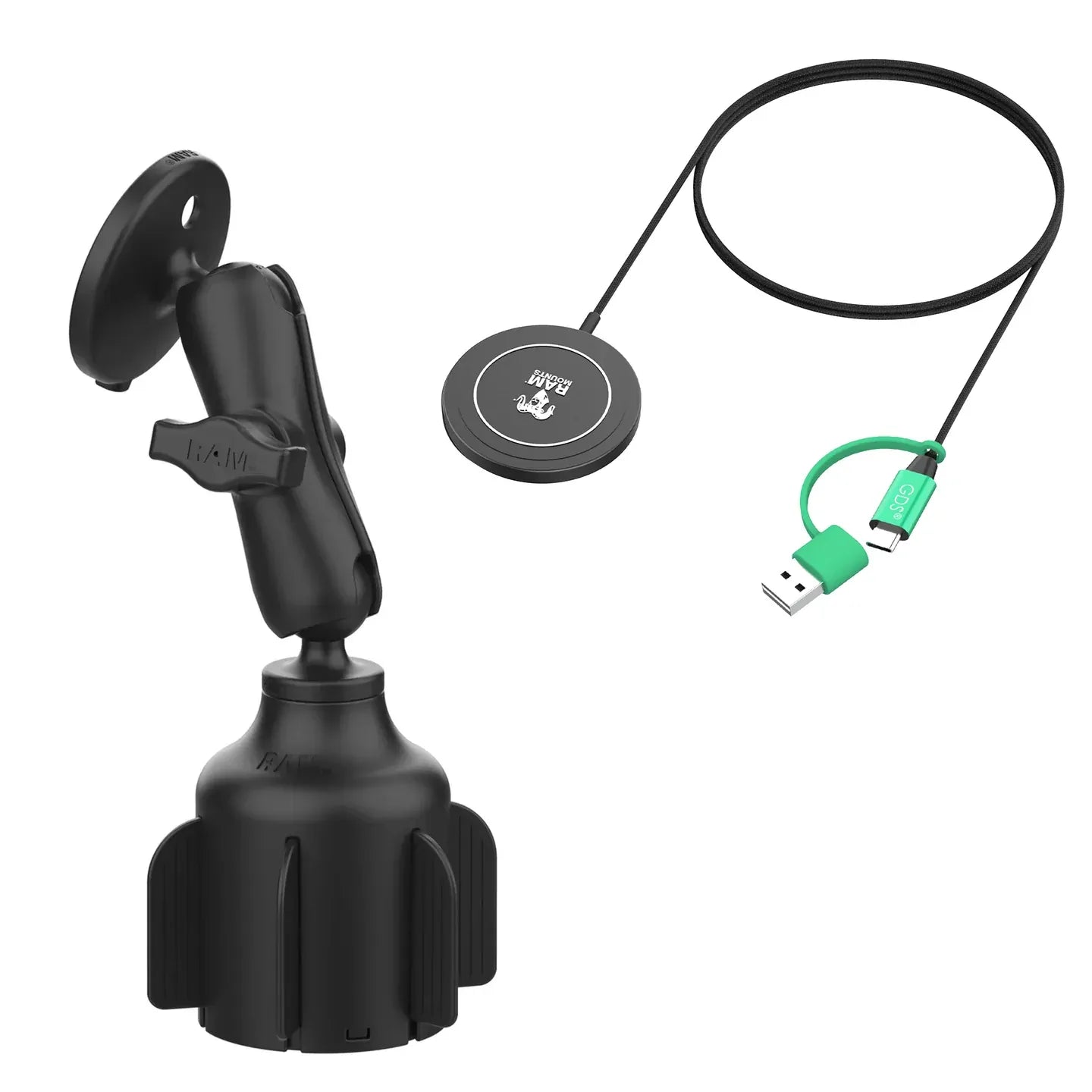

The RAM® Stubby™ Cup Holder Mount with RAM® Qi2 15W Wireless Charger (RAP-B-299-4-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just drop the Stubby™ base into your cup holder for quick, no-tools installation, it’s that easy. This kit includes the RAM® Qi2 15W Wireless Charger, ball adapter, Stubby™ cup holder base, and B size medium socket arm—designed to fit snugly in small to medium cup holders (2.57"–3.5" inside diameter). With IP67 waterproof protection and a durable woven USB-C cord, you’ll get a reliable charge every time. Plus, harness your iPhone’s MagSafe® magnetic charging for a seamless, secure connection, no fumbling with cables.

WEDGE DIMENSIONS

Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

POWER SPECIFICATIONS

Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

INPUT VOLTAGE

USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A

POWER OUTPUT

BPP - 5WEPP - 7.5WMPP - 15W

OUTPUT CONNECTOR

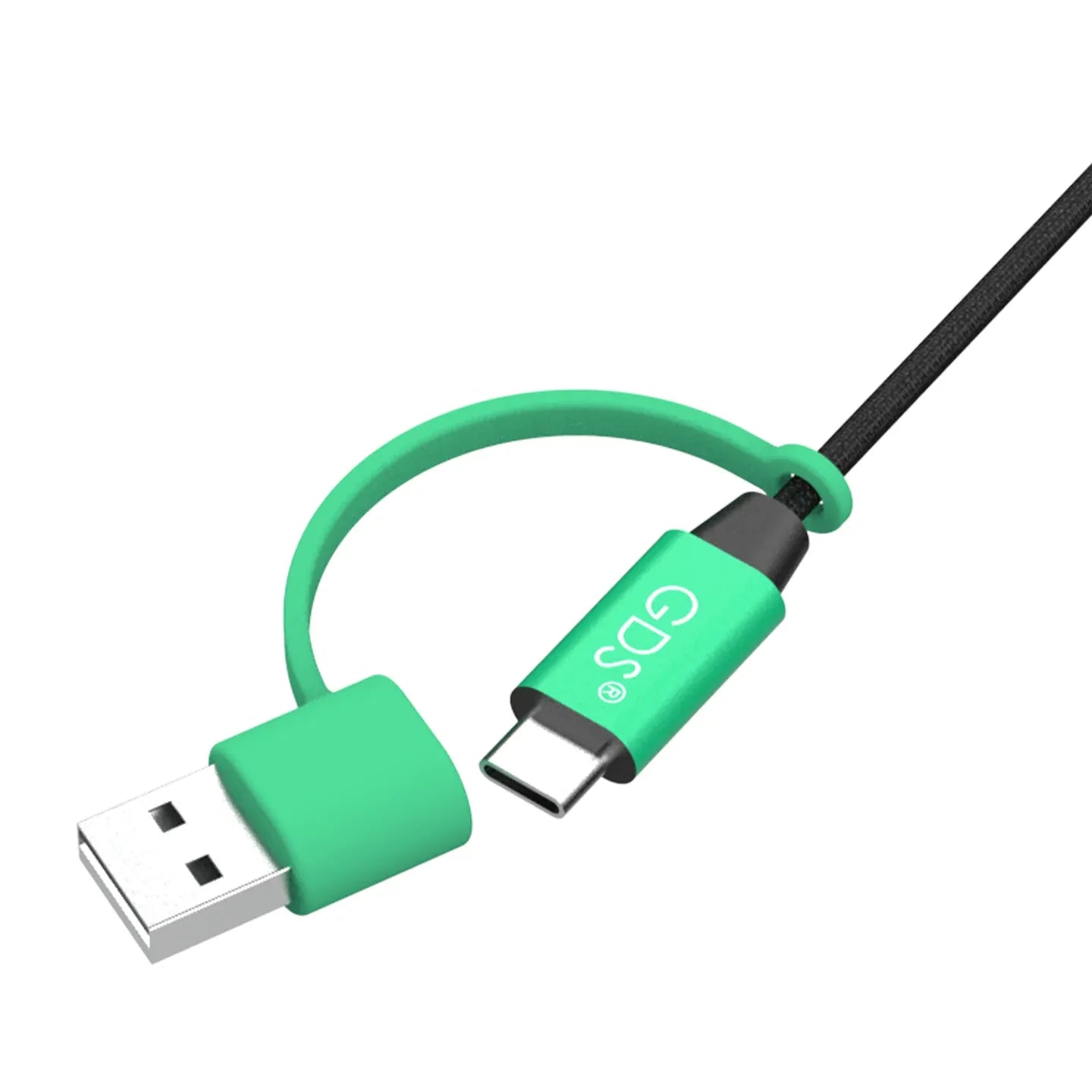

USB Type-C Male with USB-A Adapter

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

0°C to +40°C

STORAGE TEMPERATURE

-20°C to +80°C

REGULATORY

Over Current ProtectionShort circuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance

CERTIFICATIONS

IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

WEIGHT

1.43 lb

ADDITIONAL INFORMATION

The included wireless charger will support up to 8mm charging distance between puck and device.
