RAM® Twist-Lock™ Triple Suction Mount with Round Plate and 1/4″-20 Stud

RAM Mounts

$185.00

RAM Round Plate with Ball - B Size

$21.00

In stock

RAM Twist-Lock Triple Suction Cup Base with AMPS Hole Pattern

$94.00

In stock

RAM Ball Adapter with Round Plate and 1/4"-20 Threaded Stud - B Size

$32.00

In stock

RAM Double Socket Arm - B Size Medium

$38.00

In stock

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAP-B-365-224-202AU Categories , ,
Overview

Overview

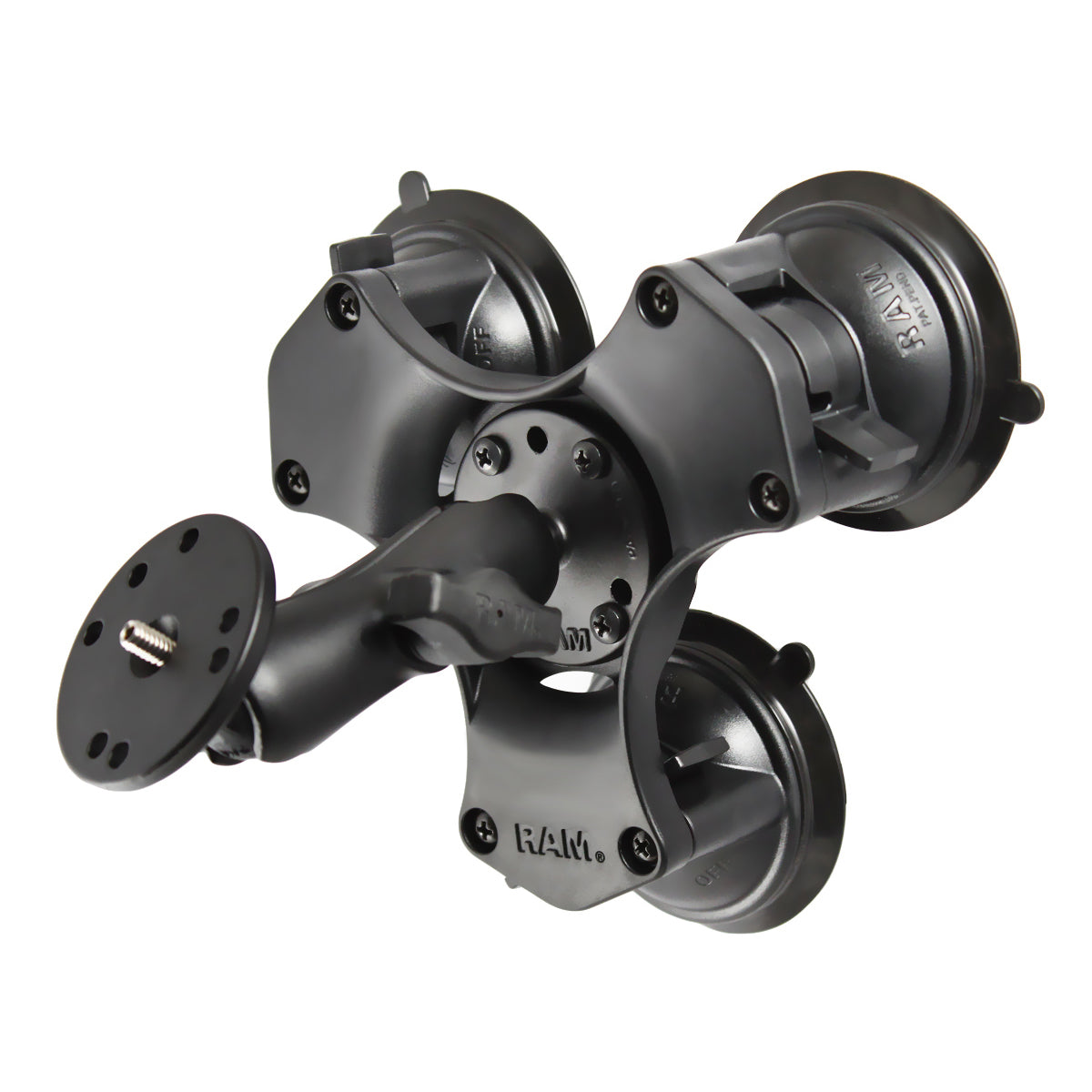

The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specs

Hardware Included

Assembly Hardware

Suction Size

(3) 3.3" Diameter Bases, Total Width 7.95"

Socket To Socket Length

3"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Thread Pitch

1/4"-20 x .25"

Plate Size

2.5" Diameter

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag
