RAM® Tough-Claw™ Small Clamp Mount with Composite Diamond Plate

RAM® Tough-Claw™ Small Clamp Mount with Composite Diamond Plate

OVERVIEW

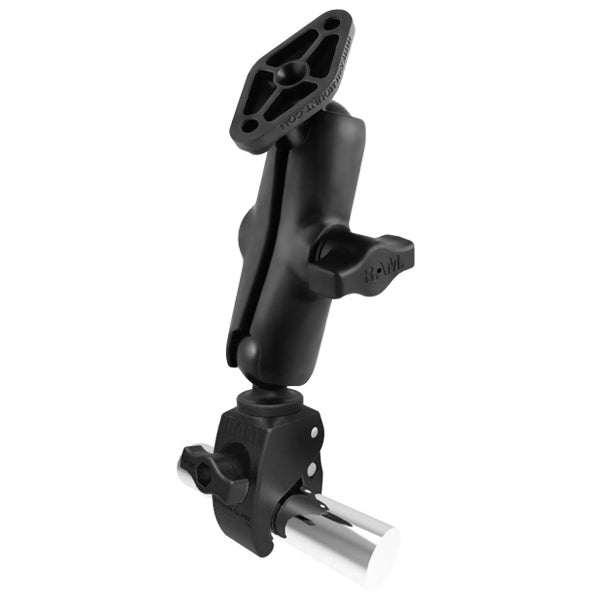

The RAP-B-400-238U consists of the small Tough-Claw™ base, composite double socket arm and diamond base adapter. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The diamond base adapter contains the industry standard universal 2-Hole AMPS hole pattern, which will connect to a large variety of RAM® Mount and third party cradles. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles.

CLAMP RANGE

.625" - 1.14" diameter

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.58 lb
