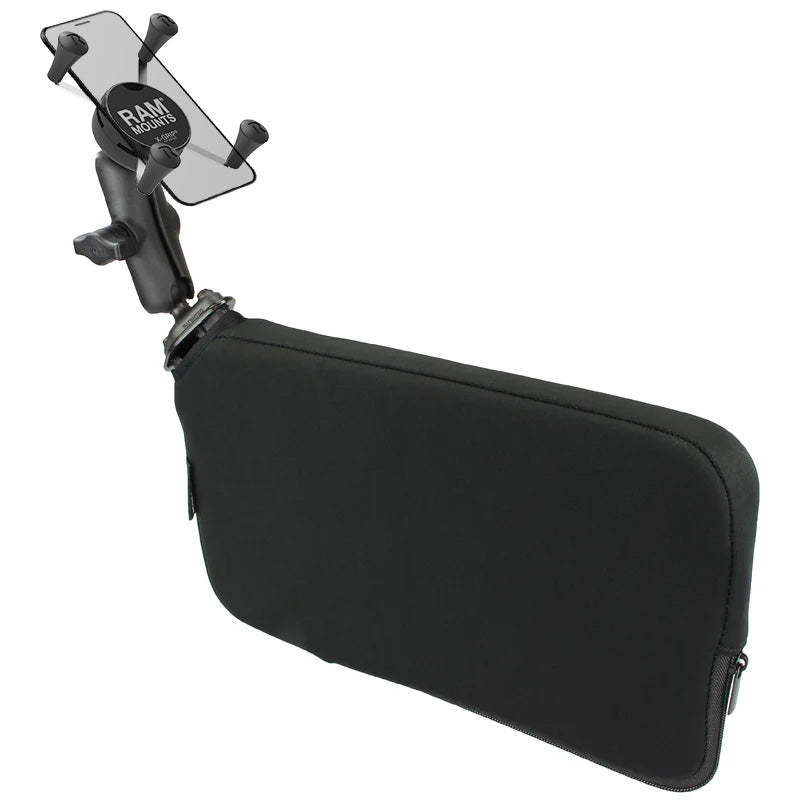

RAM® X-Grip® Phone Mount with RAM® Tough-Wedge™ Base

RAM® X-Grip® Phone Mount with RAM® Tough-Wedge™ Base

OVERVIEW

The RAP-B-407-UN7U consists of the Tough-Wedge vehicle seat wedge base, composite double socket arm, and X-Grip universal phone holder. This mount fits conveniently in the gap between your vehicle passenger seat and center console, creating a temporary but also very rugged mounting platform for your phone. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. With the turn of a knob you can set your phone to the perfect viewing and operating angle. The X-Grip is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware(1) Optional Tether(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"Depth Range: .875" max

WEDGE DIMENSIONS

Length: 13.25"Height: 8.25"Thickness: 1"

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

High strength composite Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

1.75 lb
