RAM® Snap-Link™ Ball with Diamond Plate - Image 1

RAM® Snap-Link™ Ball with Diamond Plate

RAM Mounts

$11.00

In stock

Mounting base: screws or bolts down.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAP-SB-238U Categories ,
Overview

Overview

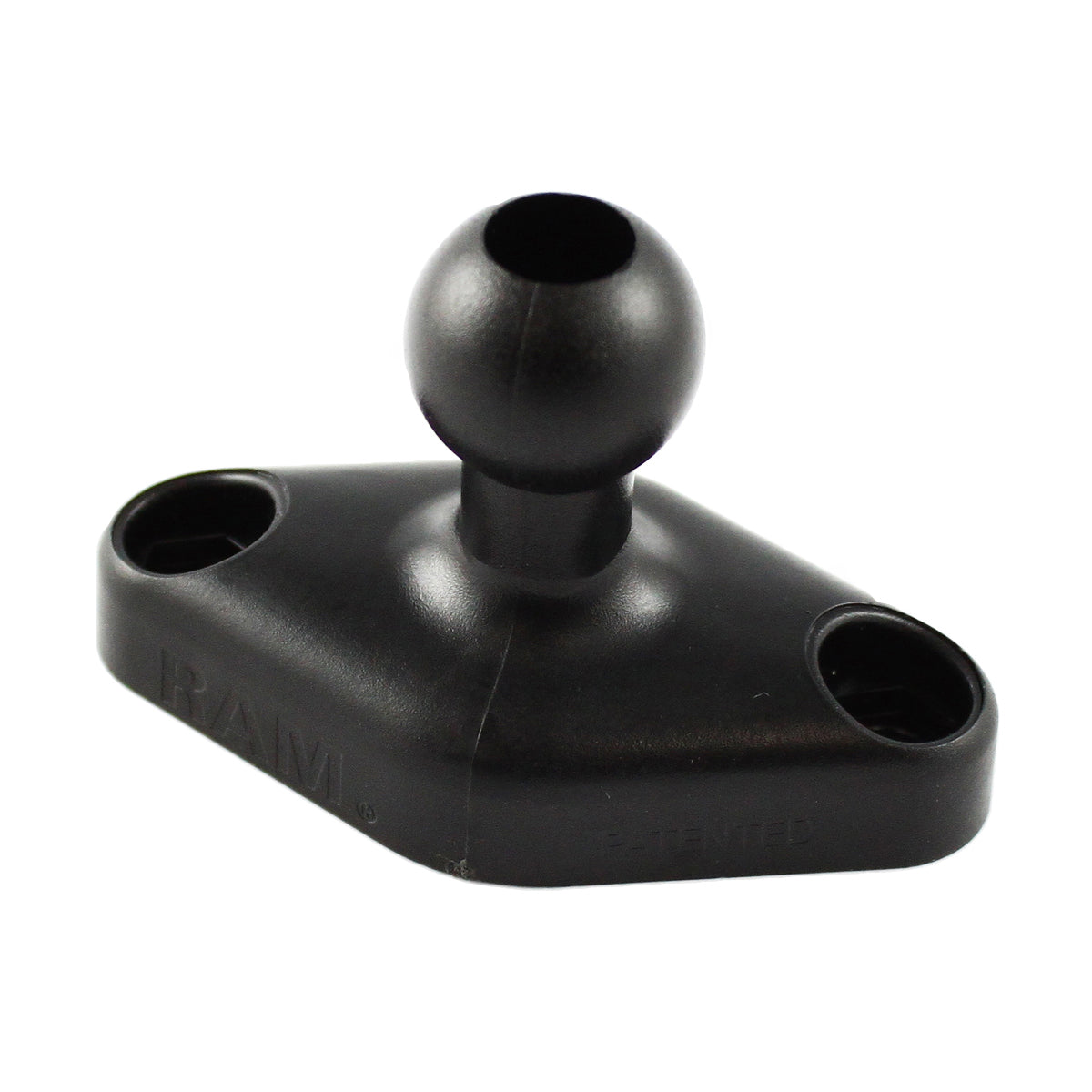

The RAP-SB-238U, composite diamond base, contains a 0.75" high strength composite ball connected at right angles to a 1.25" x 2.5" inch diamond plate. The base has two holes 1.912" from center to center, positioned at both ends of the diamond base.

Specs

Hole Pattern

2-Hole AMPS: 1.912"

Ball Size

RAM Snap-Link (3/4")

Weight Capacity

.5 lb

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.06 lb
